Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
V201K5CJZ1

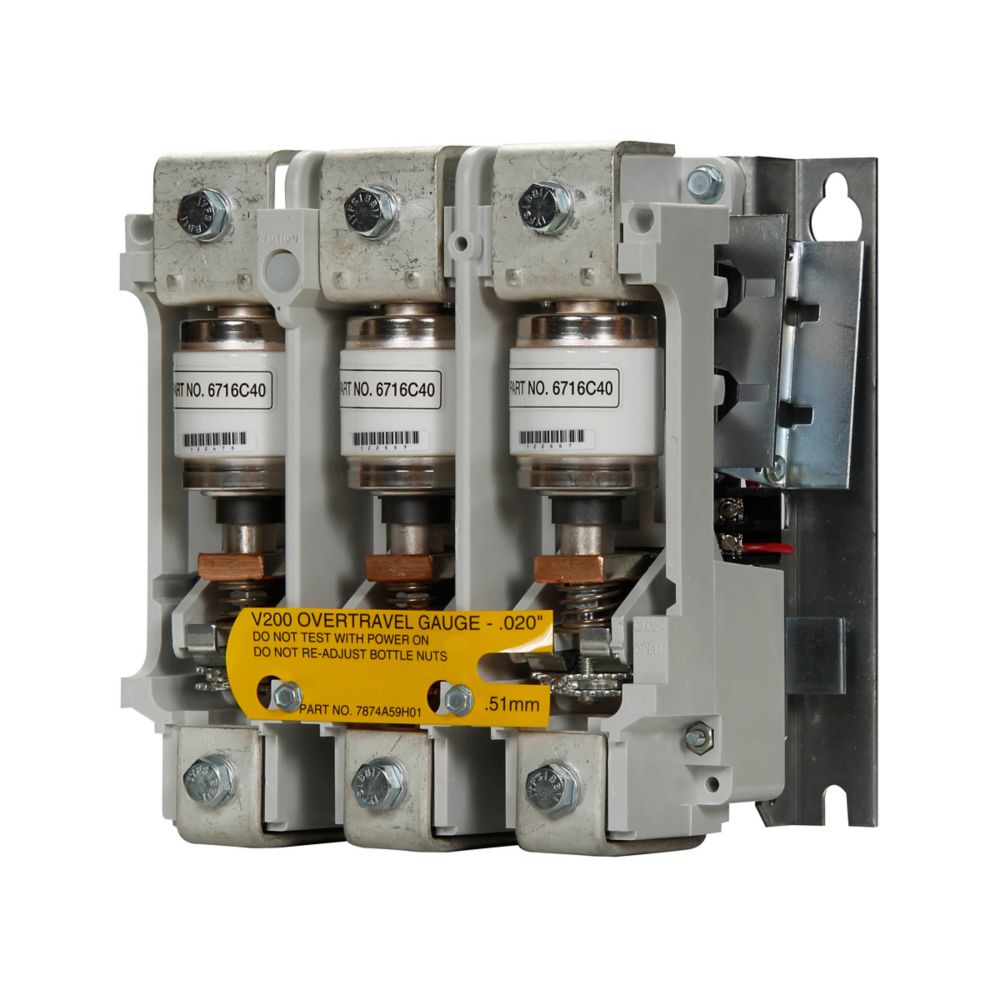

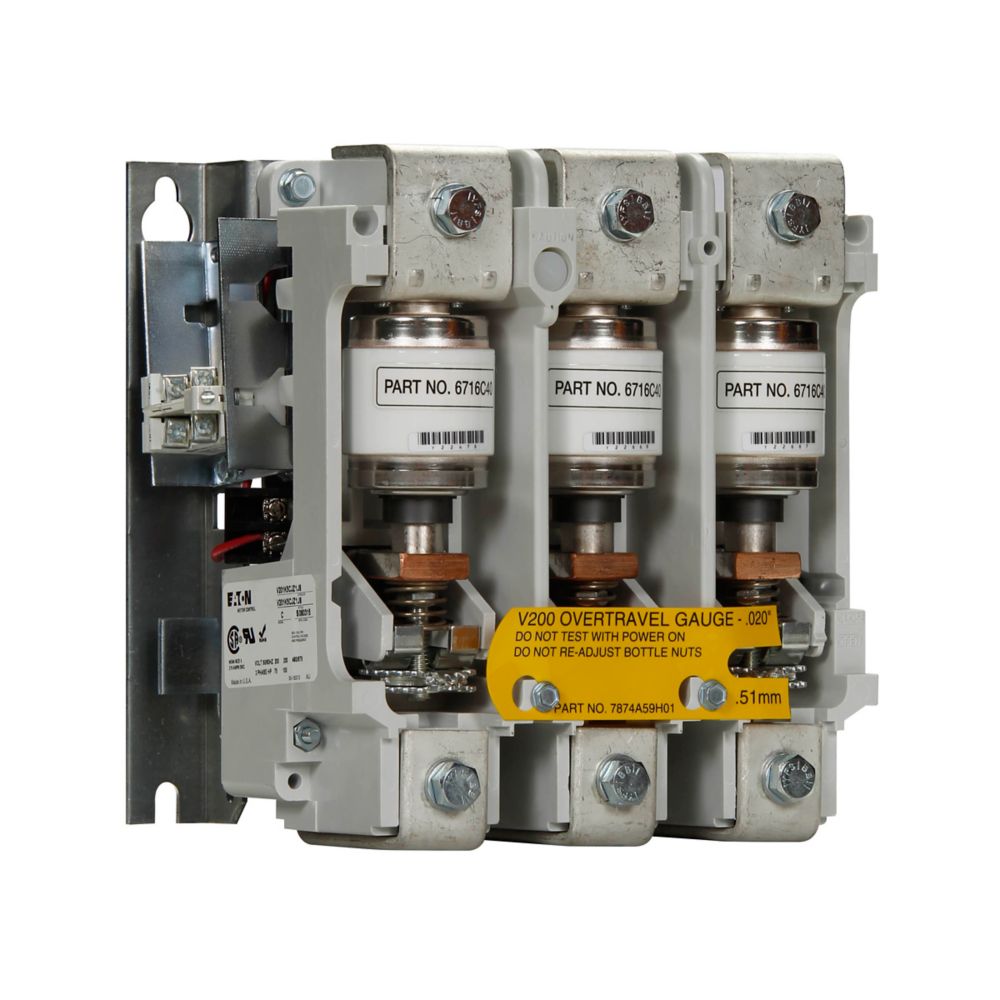

V201K5CJZ1 is a Cutler Hammer non-reversing vacuum motor contactor designed for reliable three-phase motor control in demanding industrial applications.
This open-style contactor features a 110/120V AC coil, removable line and load lugs, and is rated for 50/60 Hz applications. Each contact is enclosed in a vacuum bottle to minimize arcing and extend service life. The unit is UL and CSA certified for safety and compliance.
-
Key Specifications
- Amperage: 270A
- Voltage: 600V AC maximum
- Poles: 3
- Mounting Type: Open style, no enclosure
- Interrupt Rating: Not specified in available data
- Series/Frame: V201, NEMA Size 5
- Trip Unit: Not applicable (contactor, not circuit breaker)
- Certifications: UL Listed, CSA Certified
- Coil Voltage: 110/120V AC
- Frequency: 50/60 Hz
- Maximum HP Ratings: 75 HP @ 200V, 100 HP @ 230V, 150 HP @ 380V, 200 HP @ 460V, 200 HP @ 575V
- Dimensions: 16" L x 13.5" W x 12.25" H
- Weight: 27.32 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: V201K5CJZ1
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 270
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- UPC : 786678860817
- GTIN : 00786678860817
- Country of Origin : United States
- Dimensions : 16 in x 12.25 in x 13.5 in (Length/Depth x Height x Width)
- Weight : 27.32
- Certification : UL Listed,CSA Certified
