UVH1LP22K - Essential Electric Supply
Hover to zoom
UVH1LP22K - Essential Electric Supply

Reference images. Contact us for photos of the available unit.


Eaton

UVH1LP22K

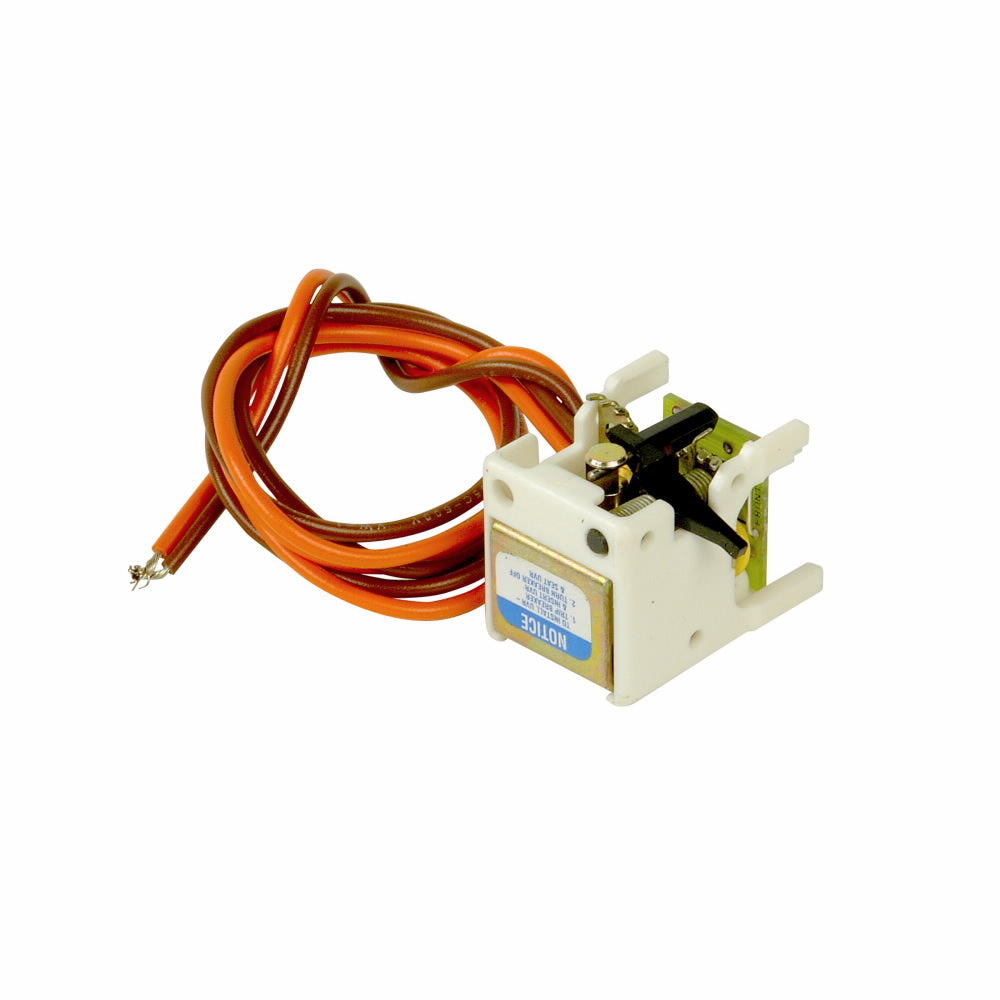

Cutler Hammer F-Frame Undervoltage Release 48VAC/DC Field Mount Pigtail Lead Left Pole

Connection: Pigtail Lead
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$315.90 $1,455.35
Save $1,139.45
Low inventory, please call (866) 377-3532 for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Brand
Cutler Hammer
Sub-Category
Under Voltage Release
Series
Series C
Frame
UVH
Connection
Pigtail Lead
Country of origin
Dominican Republic
Control Voltage Minimum
48
Compatible Frames
FDB,FD,HFD,HFDDC,FDC
Control Voltate Maximum
48
UPC
786679069240
GTIN
00786679069240
Dimensions
5.5 in x 3 in x 2.38 in (Length/Depth x Height x Width)
Weight
0.3
Product description & additional details

UVH1LP22K


UVH1LP22K is a field-mounted undervoltage release mechanism designed for F-Frame molded case circuit breakers, featuring pigtail lead connections and left pole mounting. This accessory provides reliable undervoltage protection for industrial and commercial power distribution systems. It is compatible with Cutler Hammer F-Frame breakers and is engineered for easy field installation with pigtail leads for flexible wiring. The UVH1LP22K supports both AC and DC applications at 48 volts, making it suitable for a wide range of electrical environments.
  • Part Number: UVH1LP22K
  • Manufacturer: Cutler Hammer
  • Series/Frame: F-Frame
  • Mounting Type: Left Pole, Field Mounted
  • Connection: Pigtail Lead
  • Voltage Rating: 48VAC/DC
  • Application: Undervoltage Release (UVR)
  • Compatible With: F-Frame Molded Case Circuit Breakers
  • Weight: 0.3 lbs
  • Interrupt Rating: Not applicable (accessory)
  • Trip Unit: Not applicable (accessory)
  • Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: UVH1LP22K
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Under Voltage Release
  • Family : Series C
  • Type : UVH
  • Connection : Pigtail Lead
  • Control Voltage Minimum : 48
  • Compatible Frames : FDB,FD,HFD,HFDDC,FDC
  • Control Voltate Maximum : 48

Product Data

  • UPC : 786679069240
  • GTIN : 00786679069240
  • Country of Origin : Dominican Republic
  • Dimensions : 5.5 in x 3 in x 2.38 in (Length/Depth x Height x Width)
  • Weight : 0.3
