Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Fuse Block
Description
USCC4I

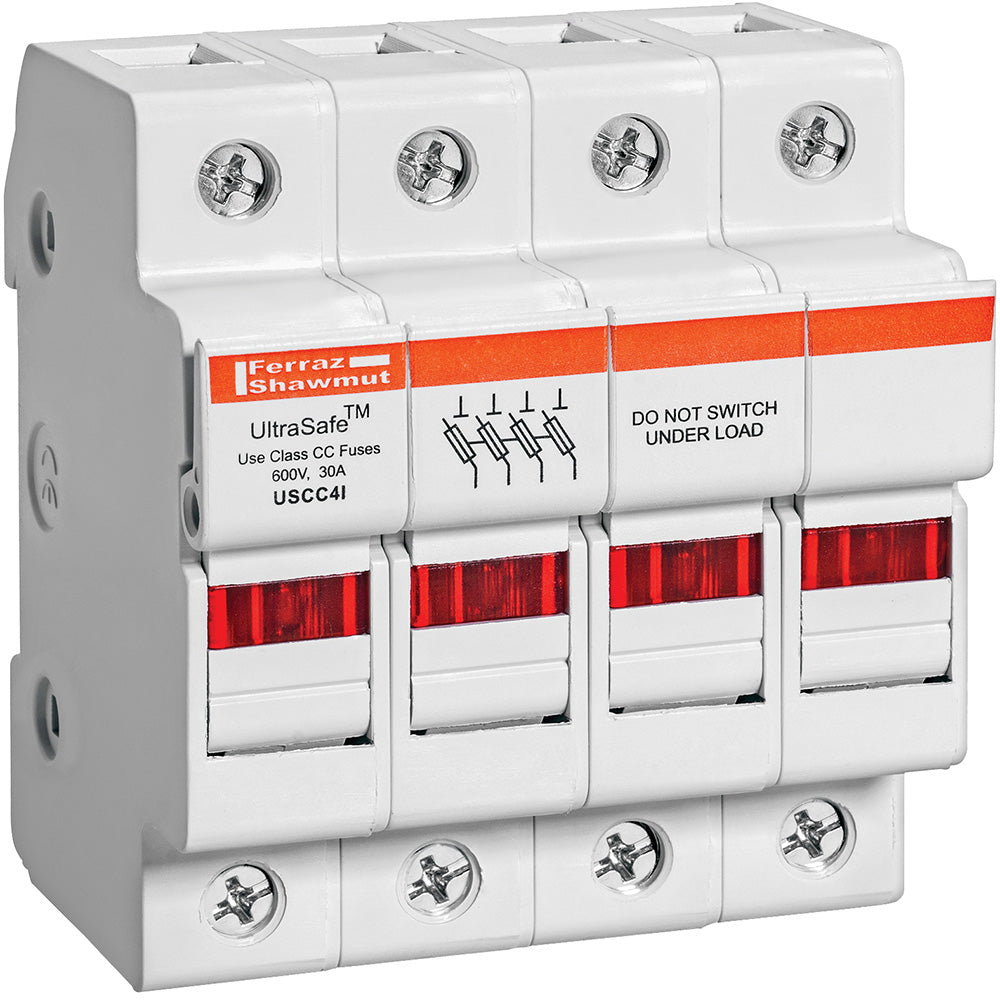

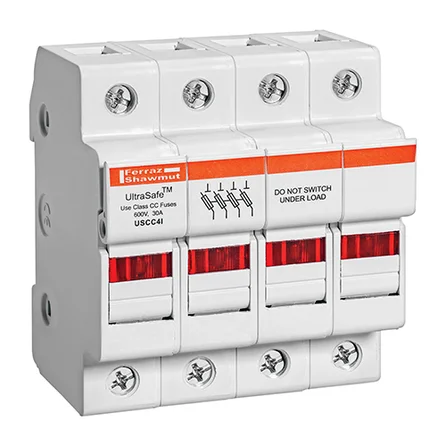

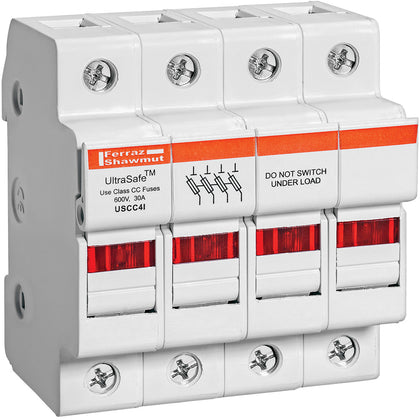

USCC4I is a 4-pole fuse block designed for Class CC fuses with LED indicators for status monitoring.
This fuse holder supports up to 30 amps and is rated for 600 volts AC and DC. It features a clip-in fuse installation method and a pressure plate connector type. The USCC4I is designed for DIN rail mounting and includes finger-safe construction for enhanced operator safety. It is suitable for use with midget fuses sized 1-1/2" x 13/32" and includes LED indicators for fuse status. Torque rating for wiring is 15 lb-in, and wiring range supports copper conductors from #6 to #14 AWG.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 VAC / 600 VDC
- Poles: 4
- Fuse Class: Class CC
- Fuse Installation: Clip-in
- Connector Type: Pressure Plate
- Mounting Type: DIN Rail
- Indicator: LED
- Wiring Range: Cu #6-14 AWG
- Torque Rating: 15 lb-in
- Finger-Safe Design
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: USCC4I
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Ultrasafe
- Type : Line Card
Product Data
- UPC : 78200182995
- GTIN : 00782001829957
- Country of Origin : China
- Dimensions : 2.76 in x 3.07 in x 2.32 in
- Weight : 5.19
- Certification : CSA Certified, UL Listed
