Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Fuse Block
Description
USCC3N

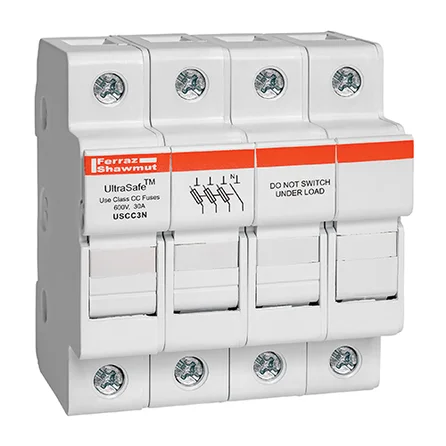

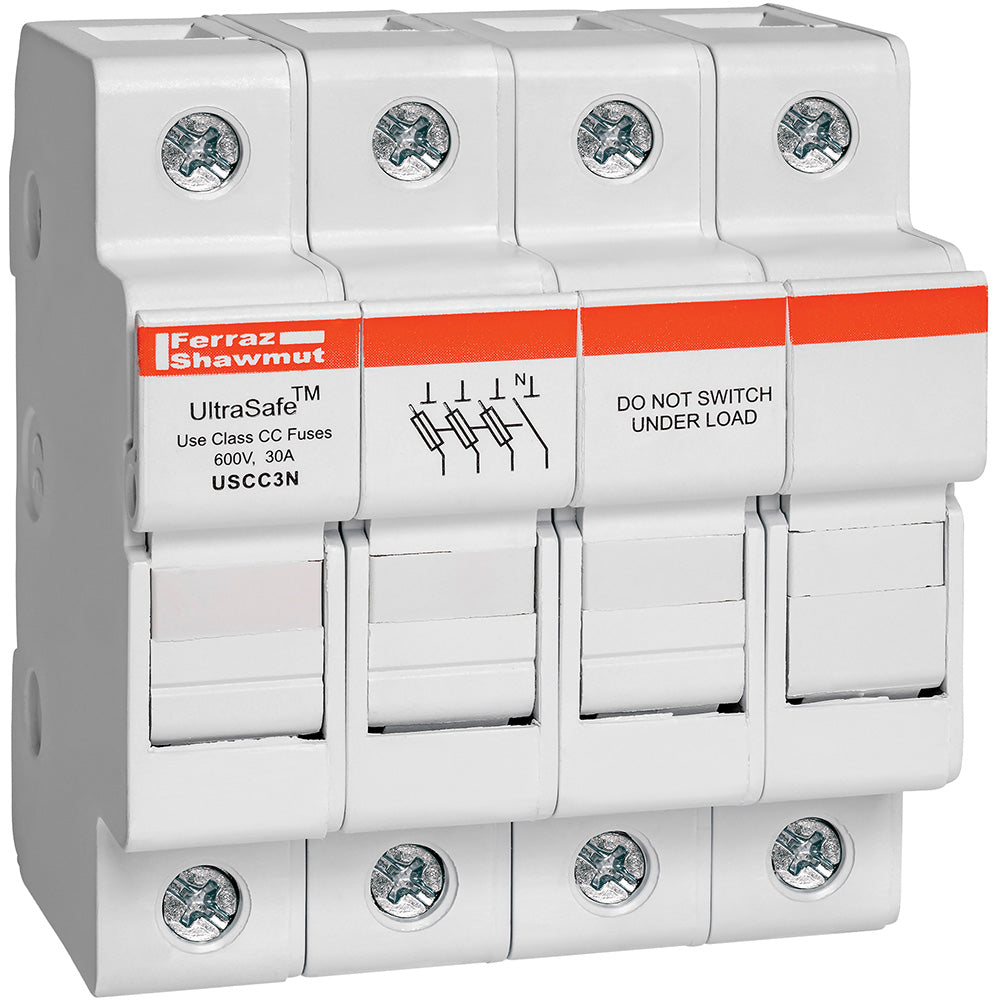

USCC3N is a modular UltraSafe Class CC fuse holder rated for 30 amperes at 600 volts AC/DC with three poles plus neutral configuration.
This finger-safe fuse holder features IP20 protection and tool-free clip-in fuse installation for quick changeouts. The compact DIN-rail mounted design incorporates polyamide construction with exceptional insulating properties and saves up to 15% mounting space. The USCC3N is non-indicator type and supports Class CC 1-1/2 inch by 13/32 inch fuses with a short circuit current rating of 200 kA.
- Amperage Rating: 30A
- Voltage Rating: 600VAC/600VDC
- Fuse Class: Class CC
- Number of Poles: 3 Poles + Neutral
- Mounting: DIN Rail
- Installation Method: Clip-in
- Short Circuit Current Rating (SCCR): 200 kA
- Degree of Protection: IP20 Finger-Safe
- Flammability Rating: UL 94 V-0
- Wire Size: 14 to 6 AWG
- UL Listed to Standard 4248-4, File E52283
- CSA Certified, File 032169
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: USCC3N
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Ultrasafe
- Type : Line Card
Product Data
- UPC : 078200182993
- GTIN : 00782001829933
- Country of Origin : China
- Dimensions : 2.07 in x 3.07 in x 2.32 in
- Weight : 0.01984158 lb
- Certification : CSA Certified, UL Listed
