Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Fuse Block
Description
USCC3IN

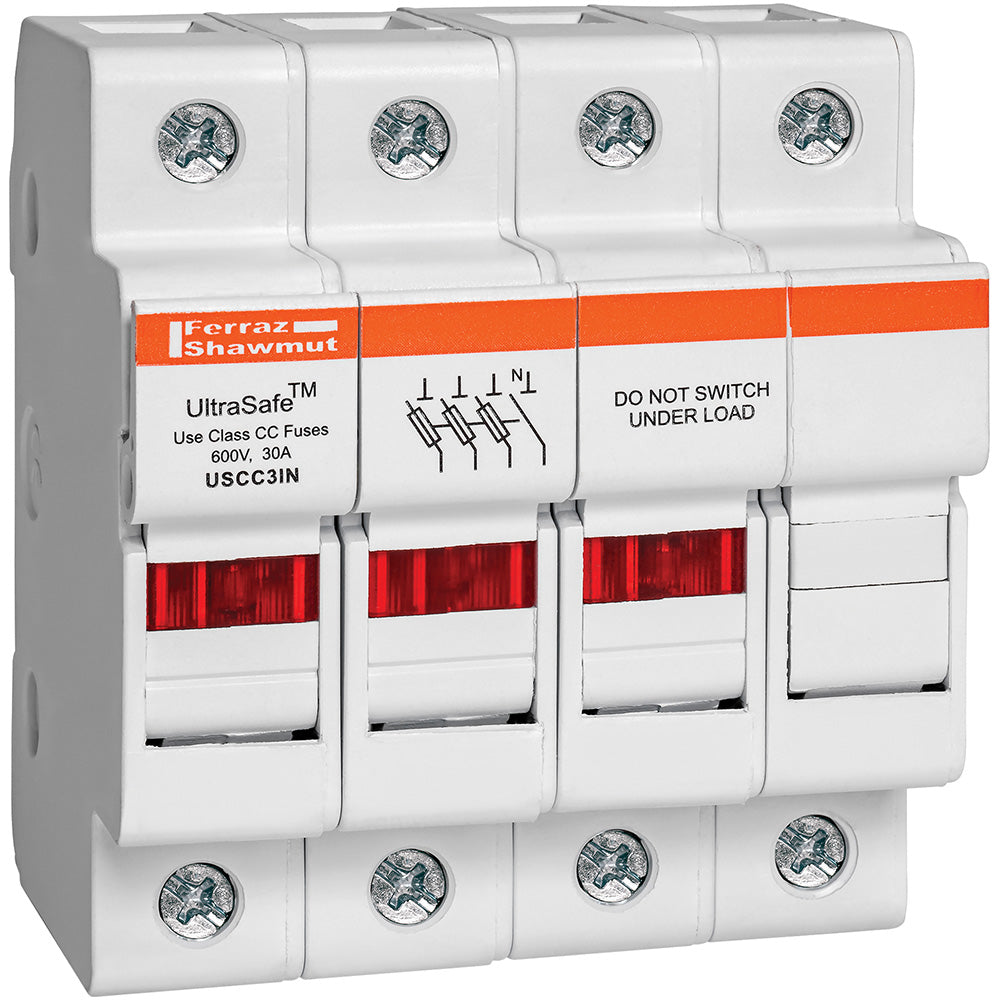

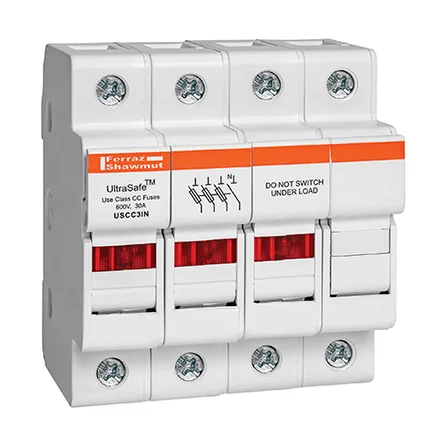

USCC3IN is a 3-pole plus neutral Class CC fuse holder designed for 30 amps and 600 volts AC/DC applications with UltraSafe™ finger-safe protection.This fuse holder features a durable polyamide body, LED blown fuse indicators, and an IP20 finger-safe rating. It supports quick, tool-free fuse changes and mounts easily on a 35mm DIN rail. Rated for 50/60 Hz operation, it is suitable for motor, control circuits, transformers, and photovoltaic DC circuits up to 1000VDC. The USCC3IN has a short circuit current rating (SCCR) of 200 kA and meets UL and CSA certifications.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 VAC / 600 VDC
- Number of Poles: 3 + Neutral
- Fuse Class: Class CC
- Mounting Type: 35mm DIN rail snap mount
- Interrupt Rating (SCCR): 200 kA
- Indicator: LED blown fuse indicator
- Finger-Safe Protection: IP20
- Body Material: Polyamide
- Frequency: 50/60 Hz
- Certifications: UL Listed, CSA Certified
- Operating Temperature: -25°C to 80°C
Specifications
- Part Number: USCC3IN
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Ultrasafe
- Type : Line Card
Product Data
- UPC : 78200182992
- GTIN : 00782001829926
- Country of Origin : China
- Dimensions : 2.07 in x 3.07 in x 2.32 in
- Weight : 25
- Certification : CSA Certified, UL Listed
