Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
USCC3

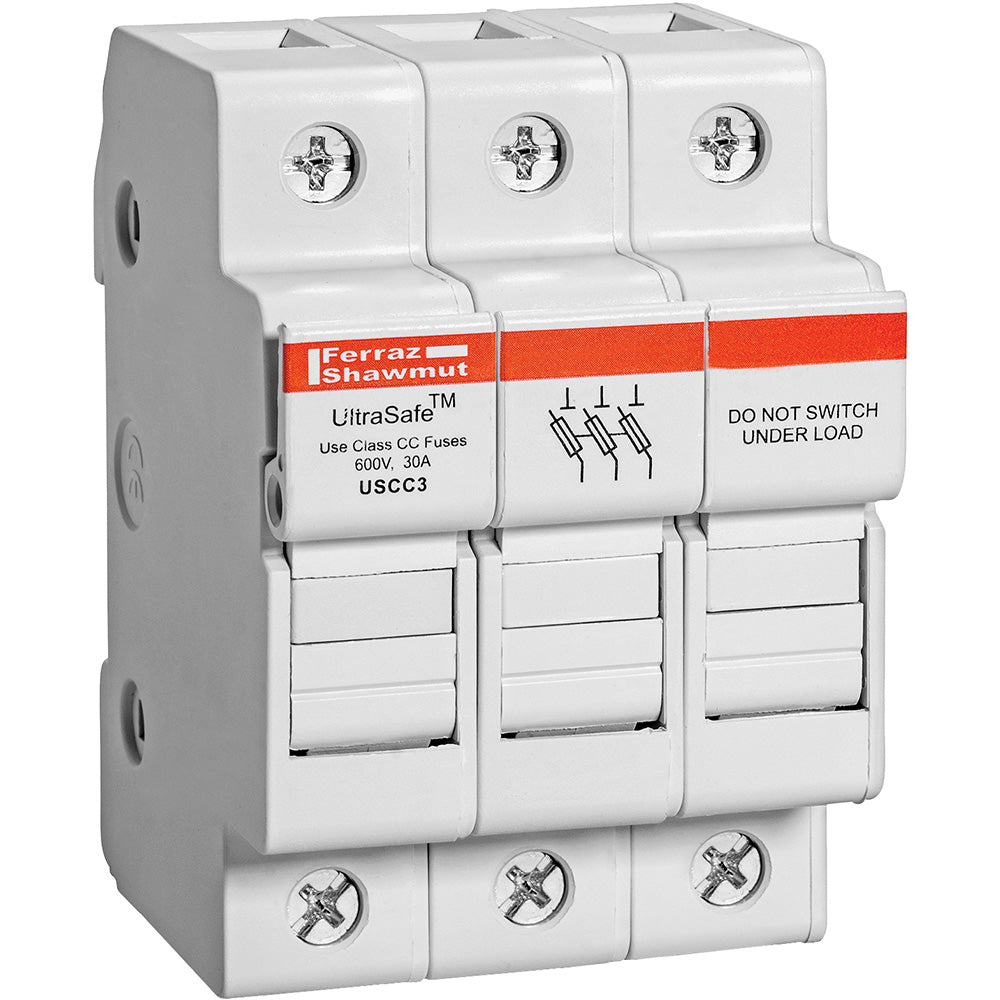

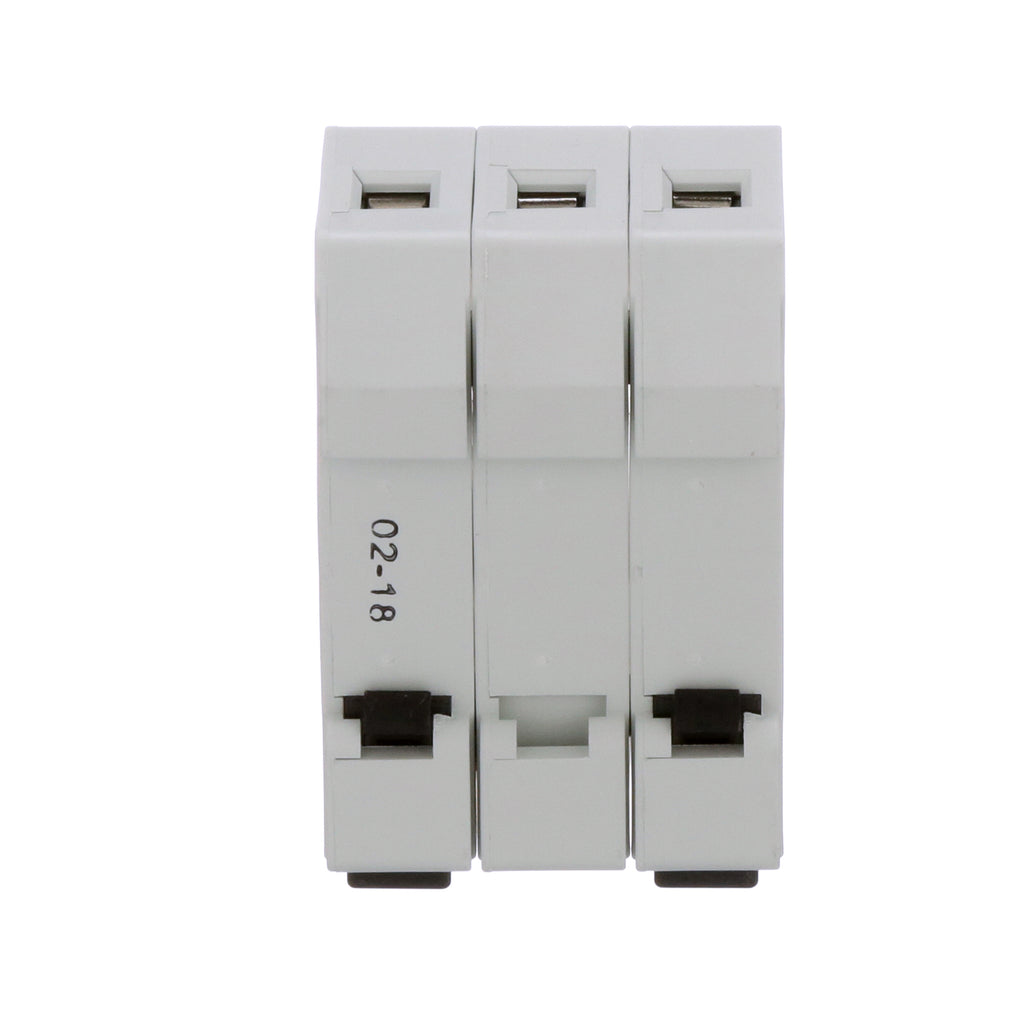

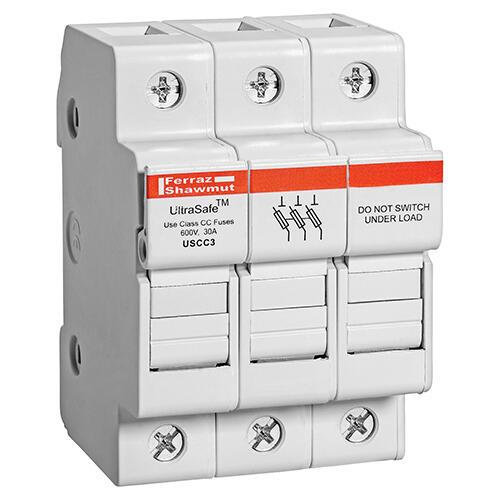

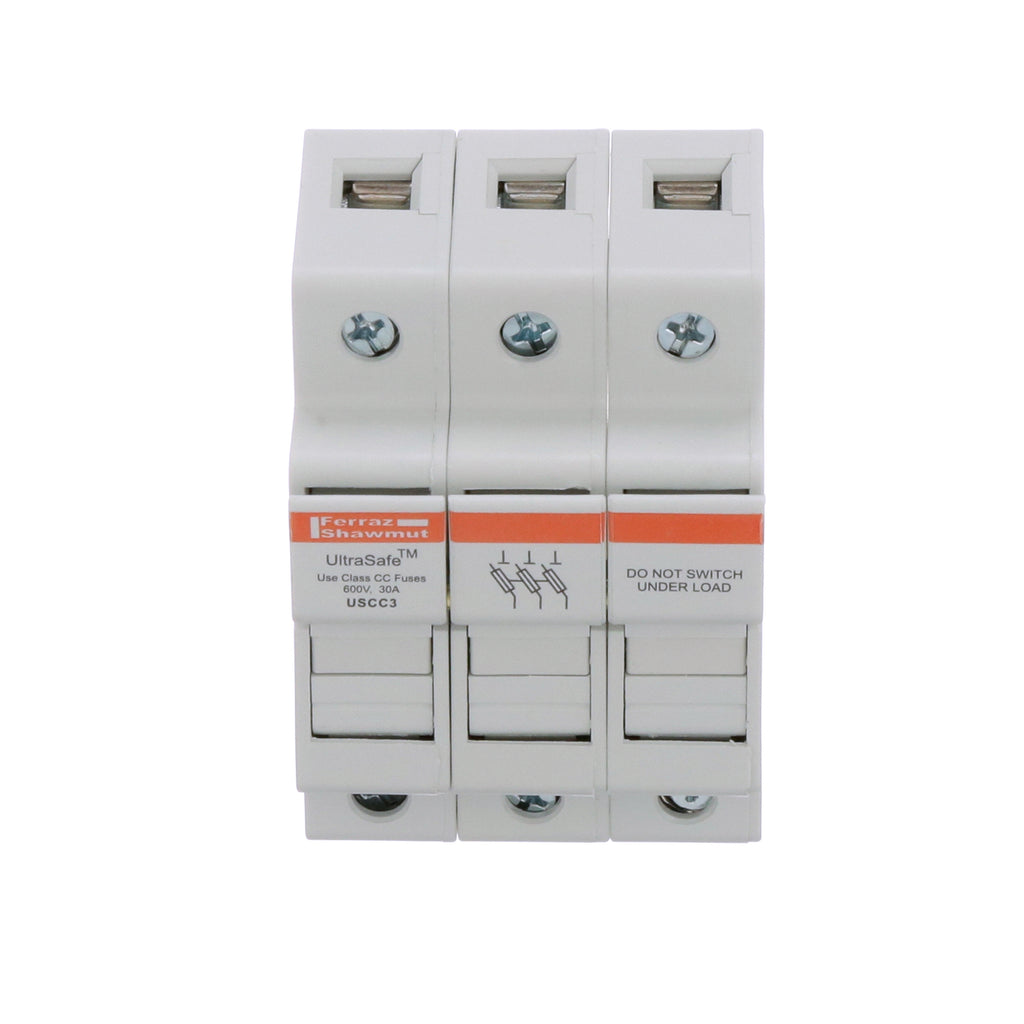

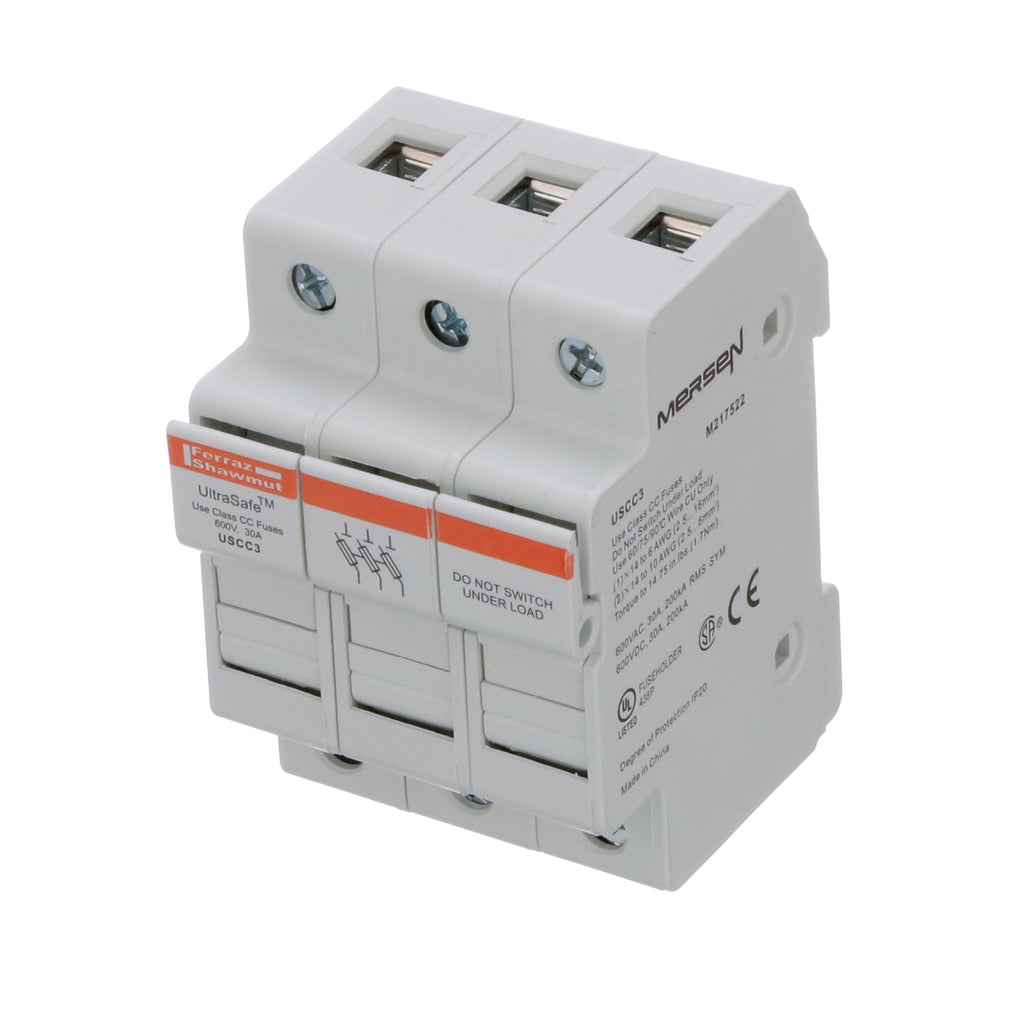

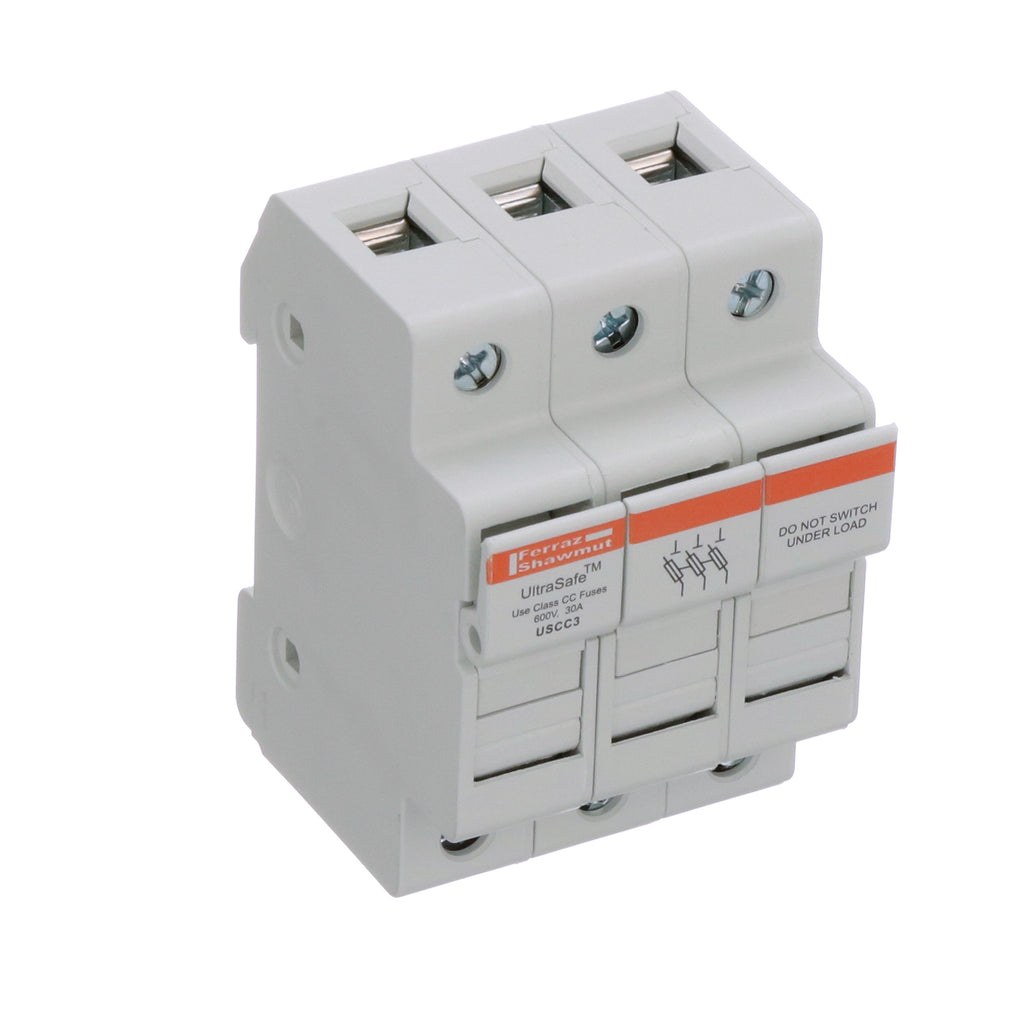

USCC3 is a Ferraz Shawmut UltraSafe™ 3-pole fuse holder designed for Class CC fuses, offering enhanced safety and easy installation in industrial power distribution applications.
This modular fuse holder supports up to 30A at 600VAC/VDC, features a pressure plate connection for secure wiring, and snaps onto 35mm DIN rail for efficient panel mounting. Its finger-safe design meets IP20 protection standards, and the robust polyamide body ensures durability and reliable insulation. The USCC3 is ideal for applications requiring Type "2" no-damage protection and is compatible with a wide range of Class CC fuses.
-
Key Specifications
- Amperage: 30A
- Voltage: 600VAC/VDC
- Poles: 3
- Mounting Type: DIN Rail (35mm)
- Interrupt Rating: 200kA SCCR
- Series/Frame: UltraSafe™ USCC
- Trip Unit: Not applicable (fuse holder only)
- Certifications: UL Listed, RoHS Compliant
- Connection: Pressure plate (accepts #6-14 AWG wire)
- Body Material: Glass-filled polycarbonate
- Protection: IP20 finger-safe
- Dimensions: 3.07" L x 2.07" W x 2.32" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: USCC3
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Ultrasafe
- Type : Line Card
Product Data
- UPC : 782001829902
- GTIN : 00782001829902
- Country of Origin : China
- Dimensions : 2.07 in x 3.07 in x 2.32 in
- Weight : 43 lb
- Certification : CSA Certified, UL Listed
