Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
USCC1I

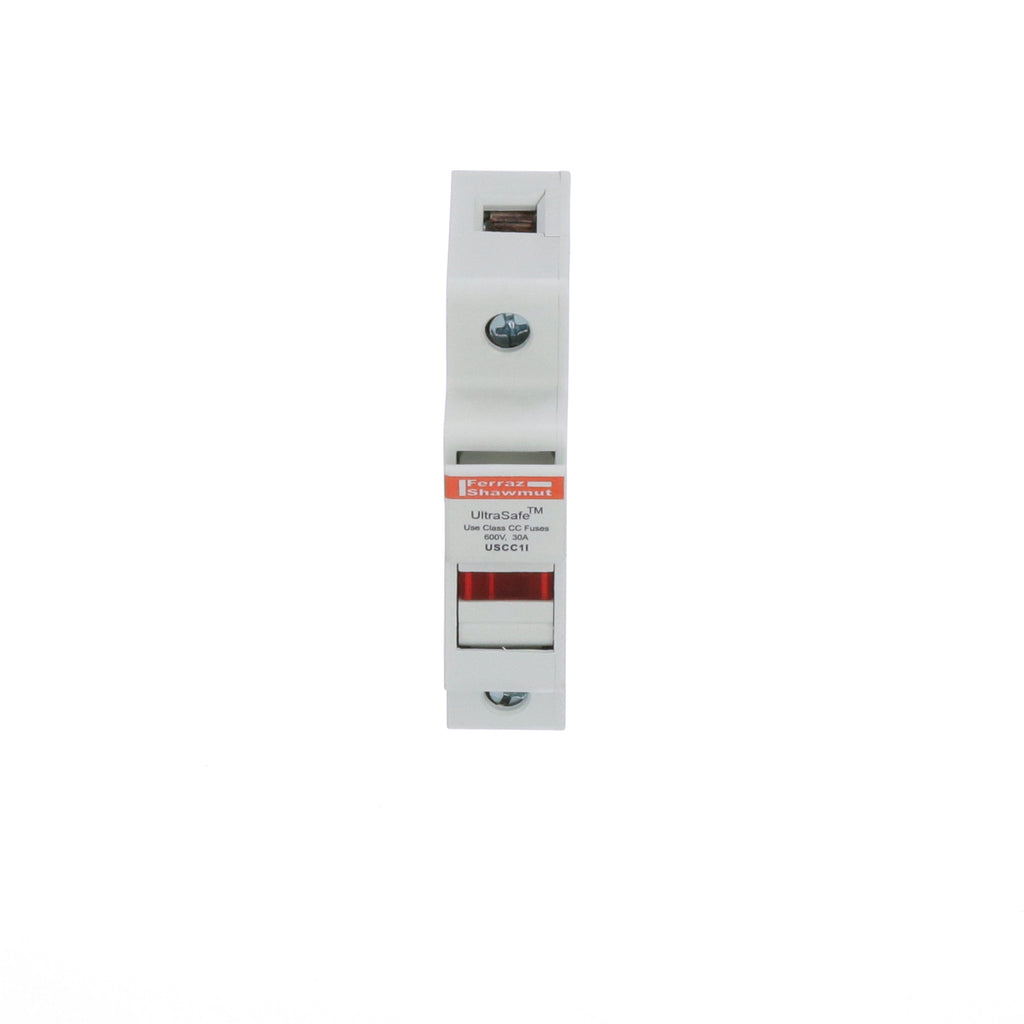

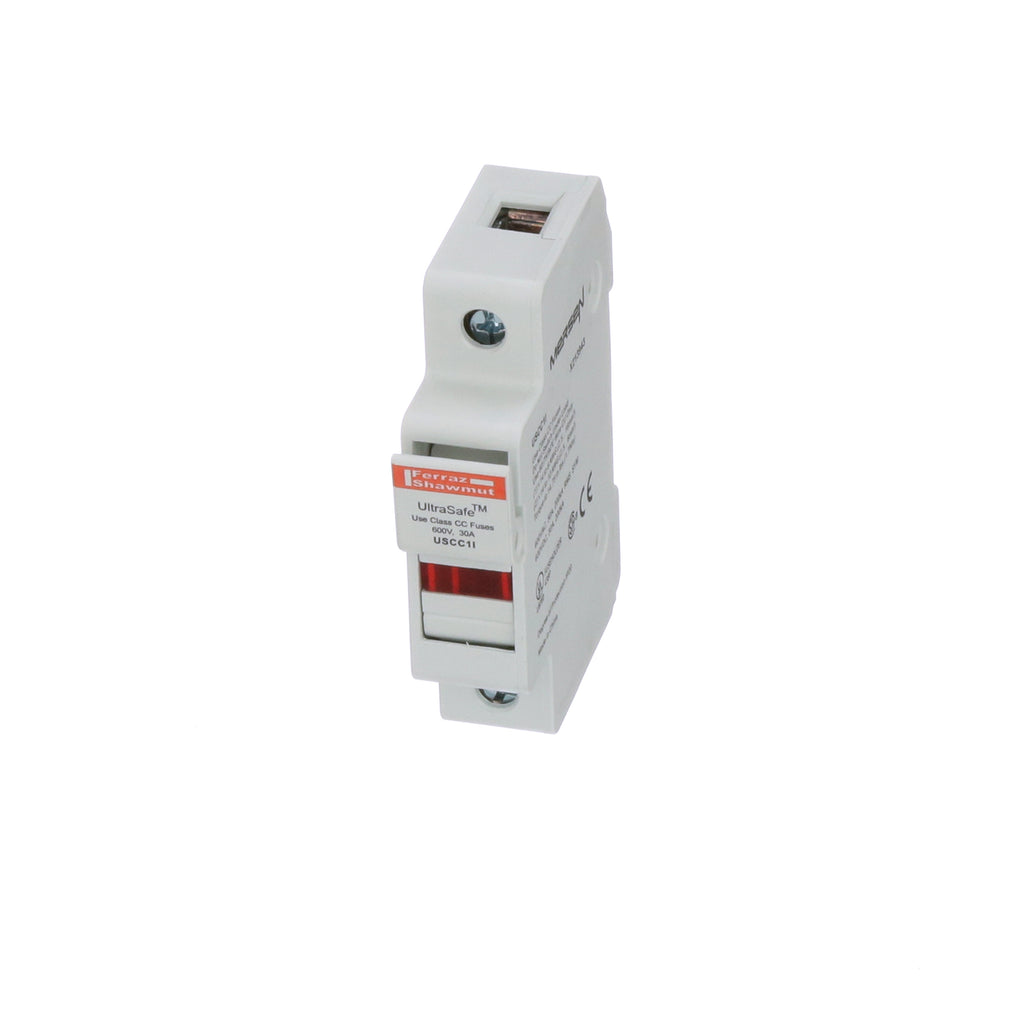

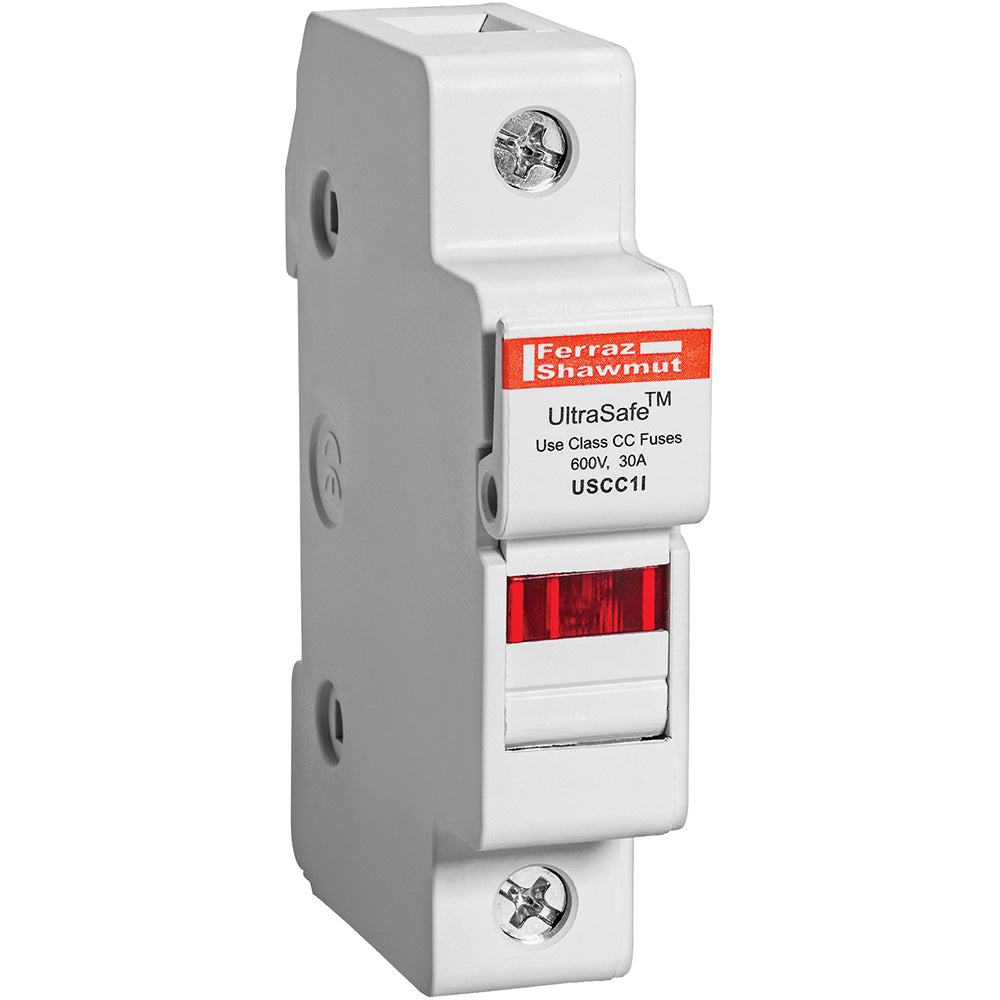

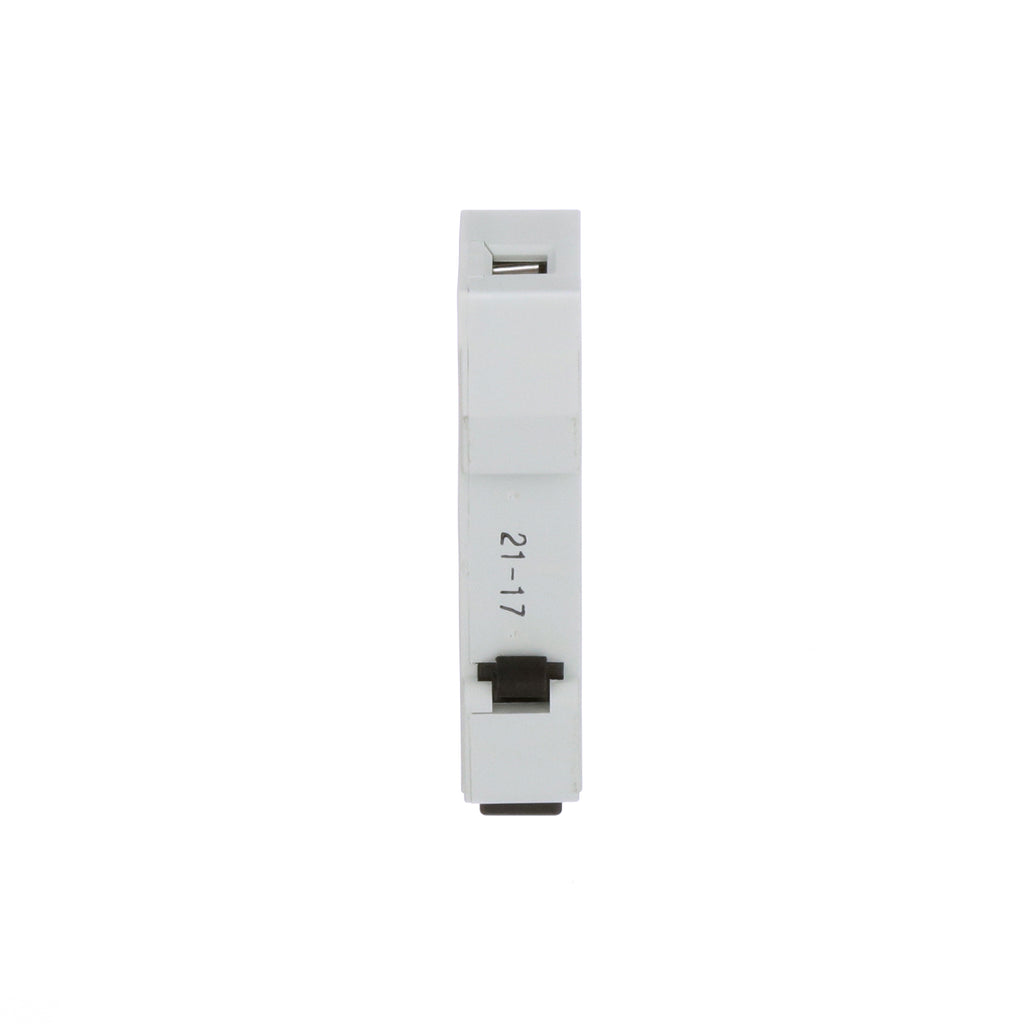

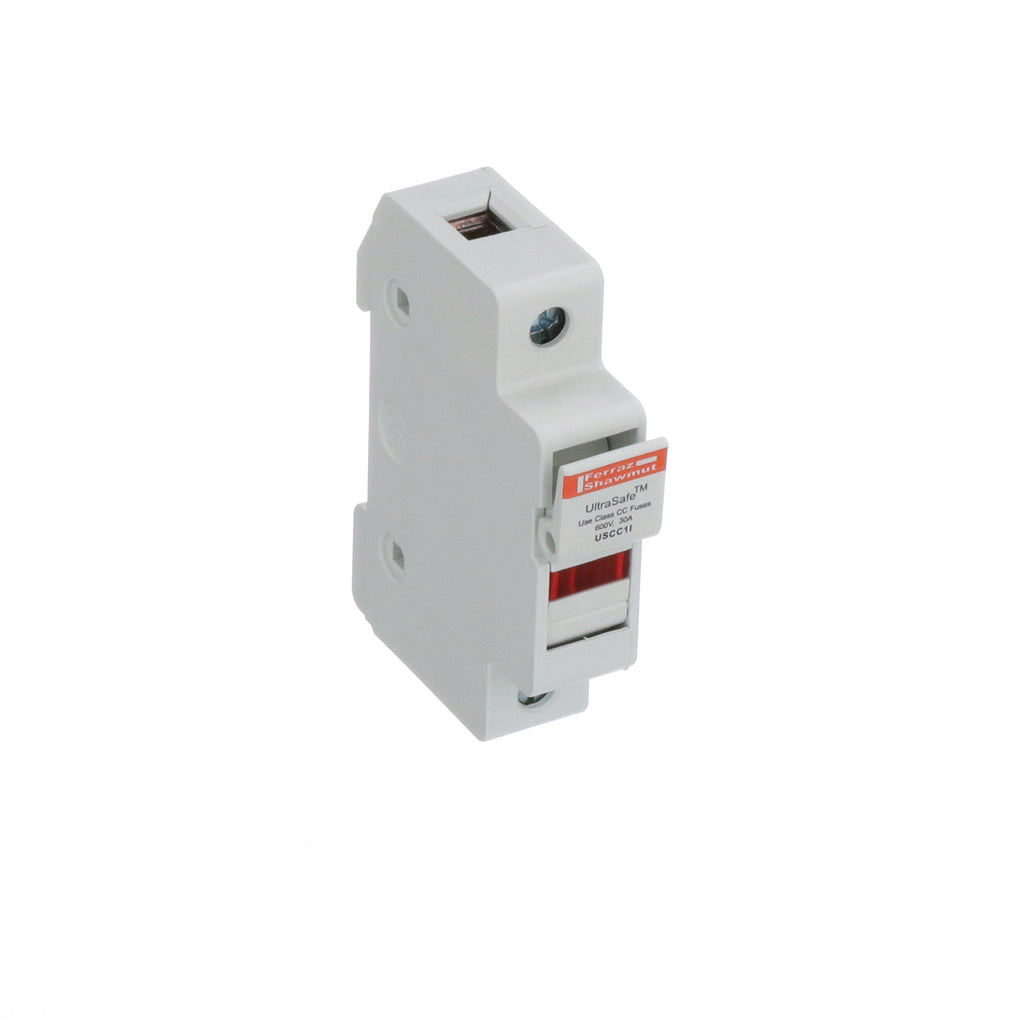

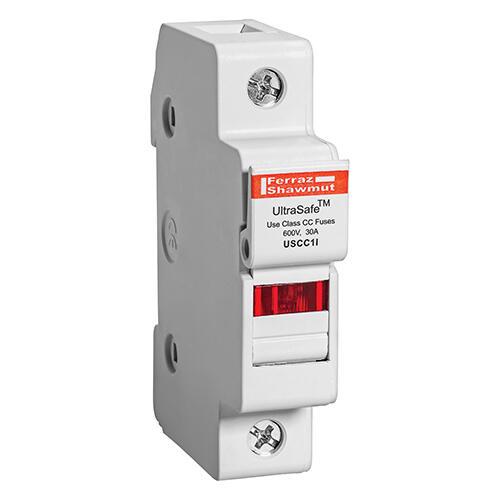

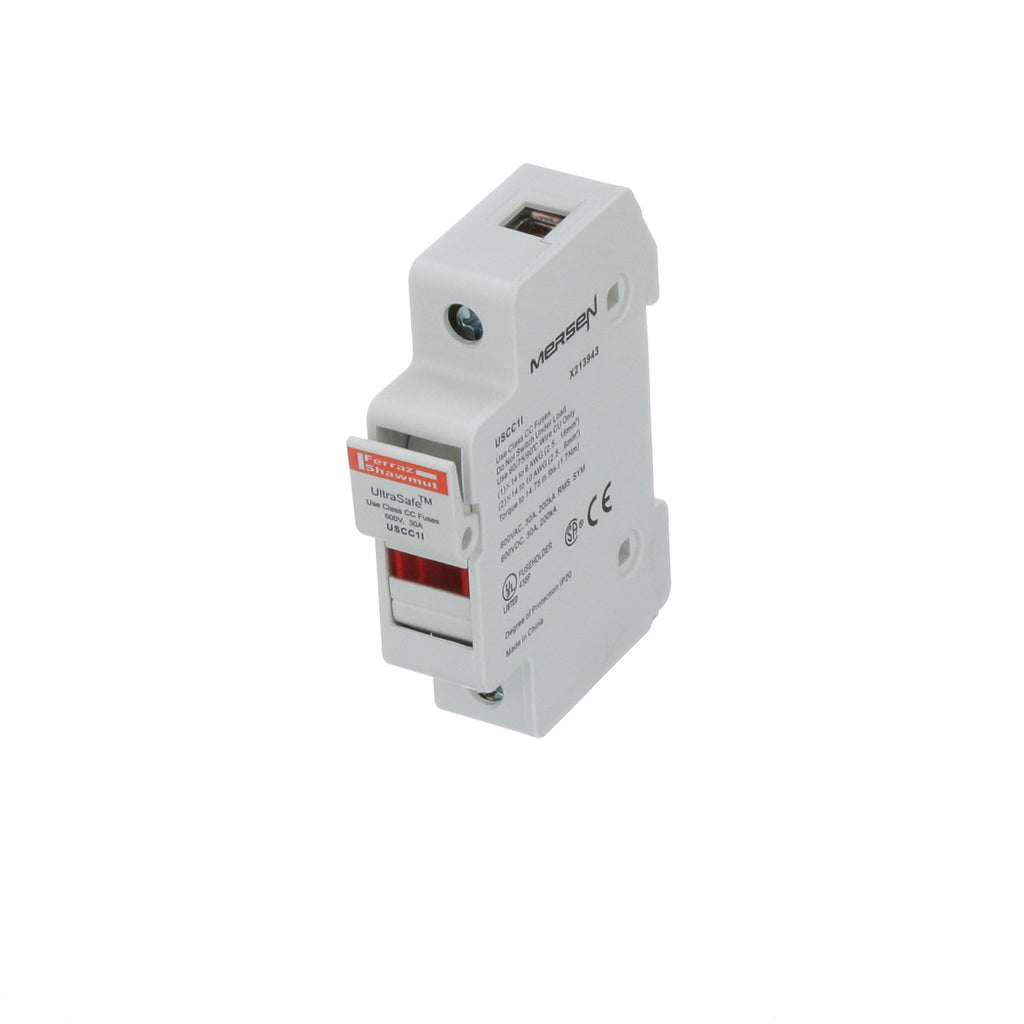

USCC1I is a Class CC UltraSafe fuse holder by Eaton designed for 30 amp fuses with a 600V rating and 1-pole configuration.
This fuse holder features a durable polyamide body with exceptional insulating properties and a visual blown-fuse indicator for easy status monitoring. It supports clip-in fuse installation and mounts on a 35mm DIN rail, saving panel space and installation time. The USCC1I is suitable for both AC and DC applications up to 600 volts and accommodates wire sizes from #14 to #6 AWG copper conductors. It includes a pressure plate connector and is RoHS compliant with a UL 94-V0 flammability rating.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 VAC/DC max
- Poles: 1
- Mounting Type: 35mm DIN Rail
- Fuse Type: Class CC, 10 x 38 mm
- Wire Range: #14 to #6 AWG copper
- Torque Rating: 15 lb-in
- Body Material: Polyamide
- Visual Blown Fuse Indicator: Yes
- Flammability Rating: UL 94-V0
- Environmental: RoHS compliant, lead free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: USCC1I
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Ultrasafe
- Type : Line Card
Product Data
- UPC : 078200182987
- GTIN : 00782001829872
- Country of Origin : China
- Dimensions : 0.69 in x 3.07 in x 2.32 in
- Weight : 5.19
- Certification : CSA Certified, UL Listed
