Description
US6J3I

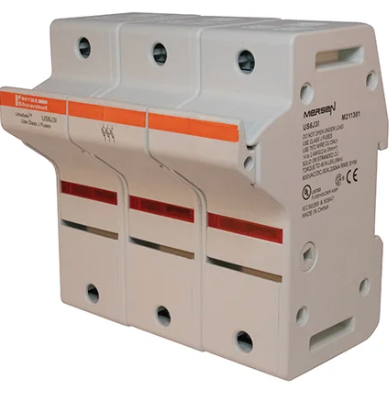

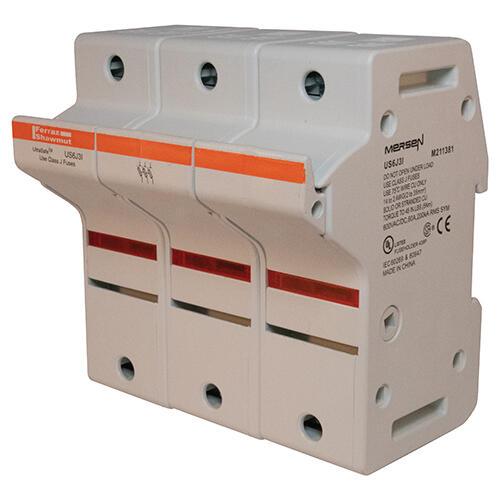

US6J3I is a Mersen UltraSafe modular fuse holder designed for Class J fuses with finger-safe IP20 protection and LED blown-fuse indication. This 3-pole unit accommodates 60A Class J fuses (22 x 58 mm) and features clip-in installation with DIN rail mounting for compact, space-efficient panel integration. The polyamide body provides durability and electrical insulation, while the unique latch design allows repositioning on the rail. All poles include provisions for locking in the open position during fuse changeouts and equipment servicing. Key Specifications
- Amperage Rating: 60A
- Voltage Rating: 600V AC/DC
- Fuse Class: Class J
- Number of Poles: 3-Pole
- Mounting: DIN Rail (35 mm)
- Fuse Installation: Clip-in
- Indication System: LED
- Wire Range: #2 to 14 AWG
- Body Material: Polyamide
- Short Circuit Current Rating: 200 kA
- Torque Rating: 45 lb-in
- Certifications: UL Listed (IZLT2 Guide E52283), CSA C22.2 Class 6225, IEC 60269-1 and 60947-3
Specifications
- Part Number: US6J3I
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Clip
Product Data
- UPC : 782001830915
- GTIN : 00782001830915
- Country of Origin : China
- Dimensions : 4.72 in x 3-1/2 in x 4.80 in
- Weight : 0.6
- Certification : CSA Certified, UL Listed
