2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Accessories
Description
US3J3

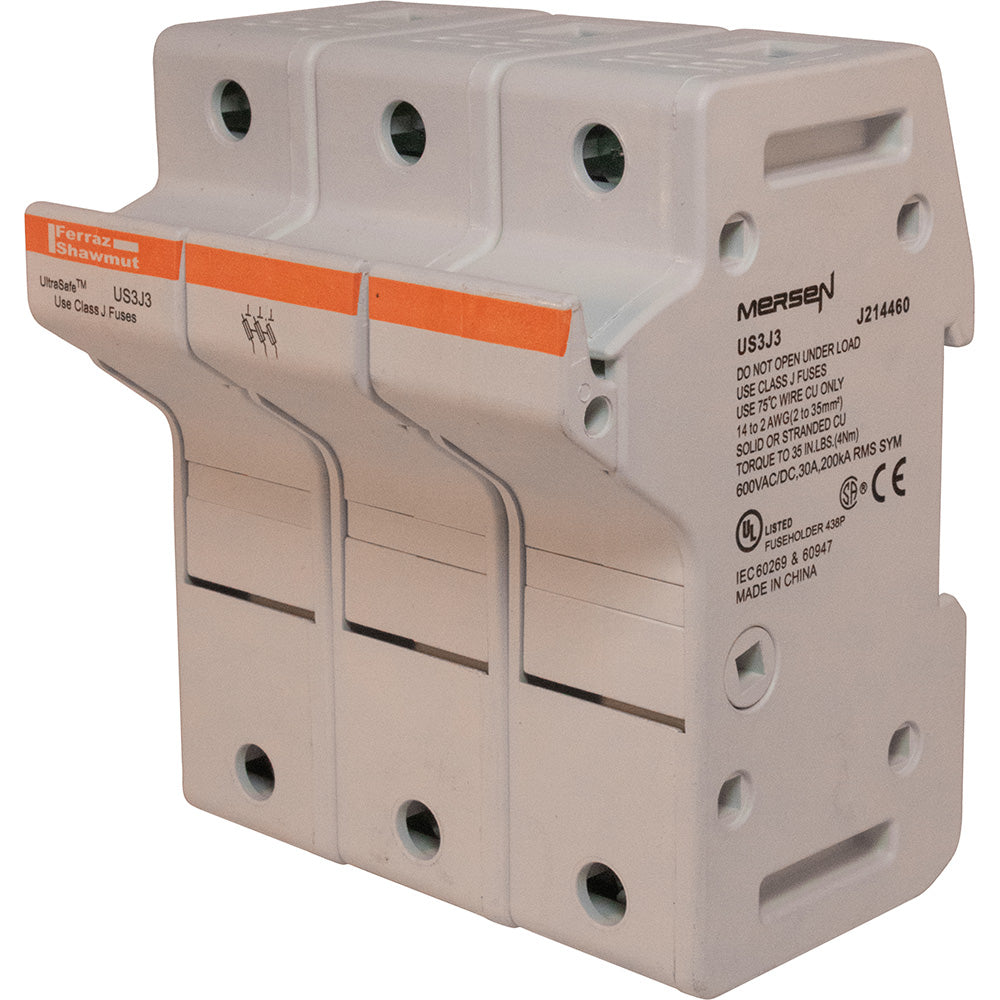

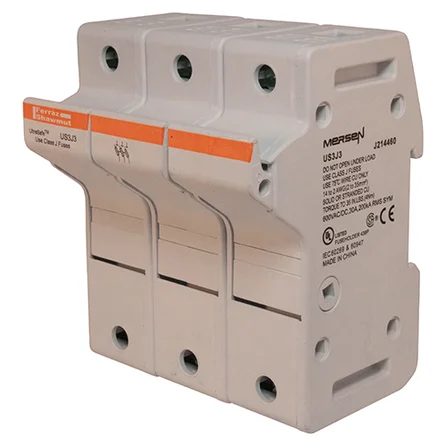

US3J3 is a 3-pole UltraSafe Class J fuse holder rated for 600VAC/DC at 30A maximum, designed for DIN rail mounting with finger-safe IP20 protection. This modular fuse holder accommodates 30A Class J or 22 x 58 mm French Ferrule fuses and features a compact design with provisions for locking in the open position during fuse changeouts and equipment servicing. The unit includes a unique latch mechanism that stays open to allow repositioning and can be expanded using multi-pole assembly kits to create custom configurations. Key Specifications
- Voltage Rating: 600VAC/DC
- Amperage Rating: 30A Maximum
- Poles: 3-Pole
- Fuse Type: Class J
- Short Circuit Current Rating (SCCR): 200kA
- Mounting: DIN Rail
- Wire Range: #2 to #14 (solid/stranded copper)
- Terminal Type: Pressure Plate
- Protection Grade: IP20 Finger-Safe
- Connector Screw Type: Phillips/Slot Head
- Suggested Torque: 35 in-lbs
- Product Width: 3.84 inches
Specifications
- Part Number: US3J3
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Accessories
- Section : Fuse Holders
- Type : UltraSafe Series
Product Data
- UPC : 782001307738
- Country of Origin : China
- Dimensions : 3.84 in x 4.49 in x 3.15 in
- Weight : 1.43 lb
- Certification : CSA Certified, UL Listed
