Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Part And Accessory
Description
US3J2

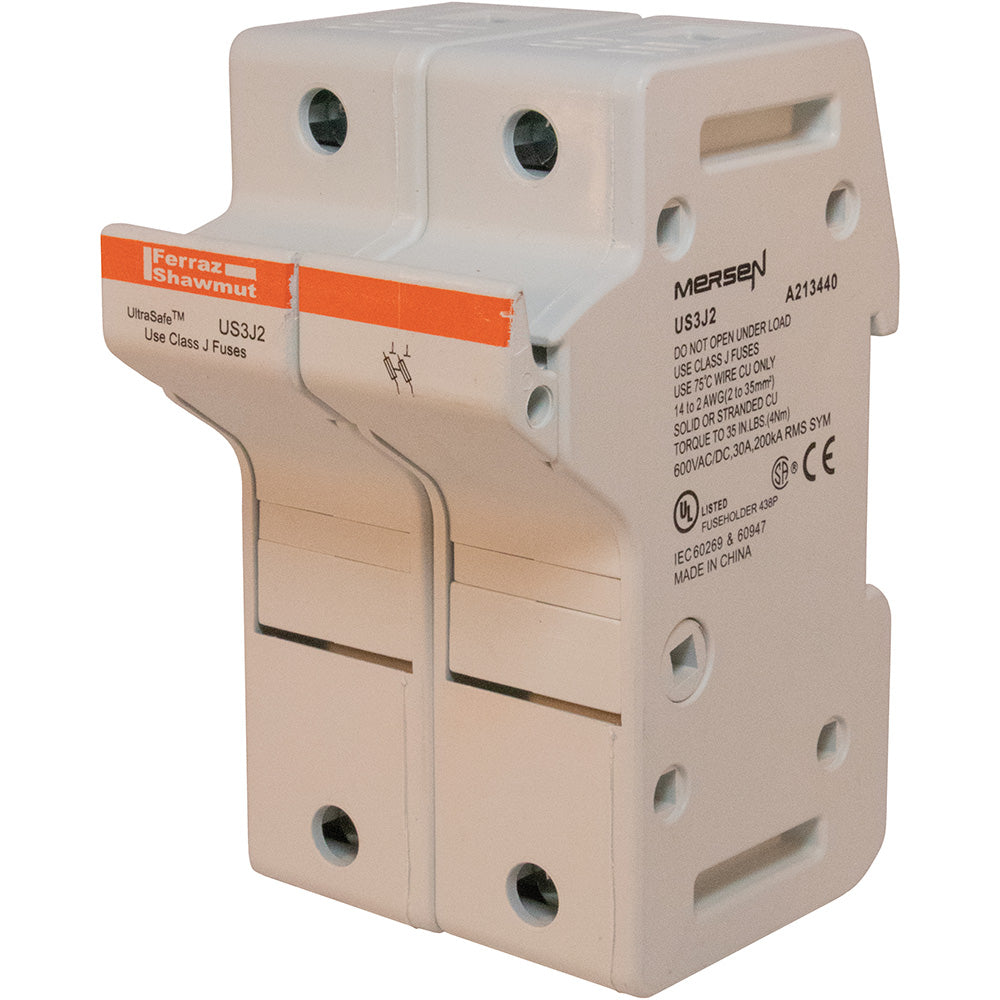

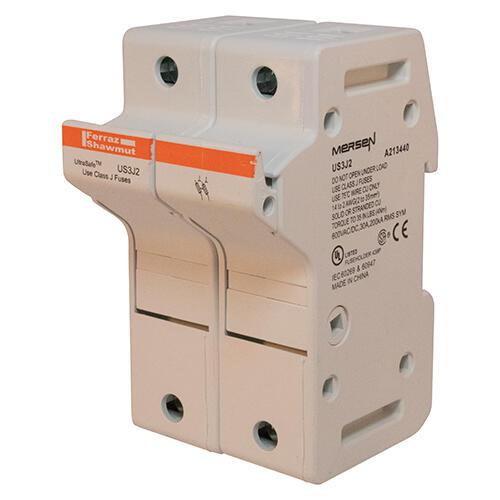

US3J2 is a 2-pole Class J fuse holder by Mersen rated for 30 Amps and 600 VAC/VDC with DIN rail mounting.US3J2 features UltraSafe modular design with finger-safe IP20 protection, compatible with 22 x 58 mm Class J fuses. It supports 50/60 Hz frequency and includes provisions for locking in the open position for safe fuse replacement. Constructed from durable polyamide, it meets UL 4248, CSA C22.2, CE, and IEC certifications.
- Amperage: 30 Amps
- Voltage Rating: 600 VAC/VDC
- Poles: 2
- Mounting Type: DIN Rail (35 mm)
- Fuse Class: Class J (22 x 58 mm)
- Interrupt Rating: 30 Amps
- Material: Polyamide
- Safety: Finger-safe IP20 protection
- Certifications: UL 4248, CSA C22.2, CE, IEC
- Frequency: 50/60 Hz
- Lockable open position for safety
Specifications
- Part Number: US3J2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Fuse Holder
- Family : Ultrasafe
- Type : US
Product Data
- UPC : 078200130772
- GTIN : 00782001307721
- Country of Origin : China
- Dimensions : 2.56 in x 4.49 in x 3.15 in
- Weight : 5.19
- Certification : CSA Certified, UL Listed
