Product Info
- Manufacturer:Mersen
- Sub-Category:Blocks and Holders
Description

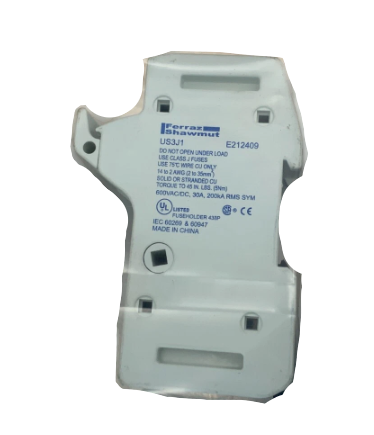

US3J1
US3J1 is a 30 Amp, 600 Volt AC/DC 1-pole UltraSafe Class J fuse holder designed for easy and safe fuse installation and replacement.US3J1 features a durable polyamide body with finger-safe protection to IP20 IEC standards, suitable for 30 Amp Class J fuses. It supports wire sizes from 14 to 2 AWG, has a clip-in fuse installation method, and mounts easily on a 35mm DIN rail. The holder includes provisions for locking in the open position for safety during maintenance and has a short circuit current rating of 200 kA.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC/VDC
- Poles: 1 Pole
- Fuse Class: Class J
- Mounting Type: Snap mount to 35mm DIN rail
- Wire Range: #2 to 14 AWG
- Fuse Installation: Clip-in method
- Finger Safe: IP20 grade protection (IEC standards)
- Short Circuit Current Rating: 200 kA
- Body Material: Durable Polyamide
- Lockable Open Position for Safety
Specifications
- Part Number: US3J1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Blocks and Holders
- Section : Fuse holder
- Family : US3J
- Voltage : 600 600 /DC
Product Data
- UPC : 078200130771
- GTIN : 00782001307714
- Country of Origin : China
- Dimensions : 114 mm H x 32.5 mm W x 106 mm D
- Weight : 5.19
- Certification : CSA Certified, UL Listed
