Product Info
- Manufacturer:Hubbell
Description
UGP15231QW

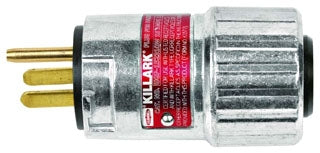

UGP15231QW is a 15 Amp 125VAC aluminum interchangeable blade style plug with quick wiring, designed for hazardous and non-hazardous locations.This UGP Series plug features a NEMA 5-15P configuration with 2 poles and 3 wires, compatible with #10, #12, or #14 AWG wire sizes. It is constructed from copper-free aluminum for corrosion resistance and rated for NEMA 3, 4, and 4X environments. The plug includes a factory sealed chamber requiring no additional external seals except in Group B applications, and its quick-wire terminal design allows for easier installation and labor savings.
- Key Specifications
- Amperage Rating: 15 A
- Voltage: 125 VAC
- Number of Poles: 2
- Number of Wires: 3
- Wire Size: #10 AWG, #12 AWG, #14 AWG
- Material: Copper-Free Aluminum
- NEMA Rating: 3, 4, 4X
- Type: Interchangeable Blade Style Plug
- Series: UGP
- Configuration: NEMA 5-15P
- Mounting: Straight Blade
- Quick Wiring Terminal Construction
- Part Number: UGP15231QW
- Manufacturer : Hubbell
- Brand : Hubbell
- UPC : 783936076683
- Weight : 5.19
