Product Info
- Manufacturer:Mechatronics
- Sub-Category:Fan/Thermal Management for Control Panel
Description

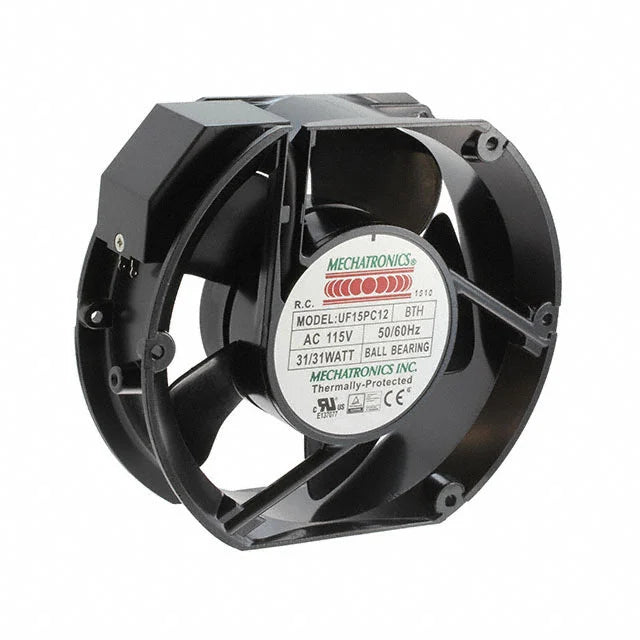

UF15PC12-BTH
The Mechatronics UF15PC12-BTH is an AC tubeaxial cooling fan designed for industrial enclosures, control panels, and high-demand thermal management applications. Built with an aluminum die-cast frame and ball bearing motor, it delivers reliable continuous-duty airflow in harsh environments.
Specifications
- Part Number: UF15PC12-BTH
- Manufacturer: Mechatronics Fan Group
- Fan Type: AC Axial / Tubeaxial
- Frame Size: 172mm x 150mm x 51mm (6.77" x 5.91" x 2.00")
- Voltage: 120VAC, 50/60 Hz
- Input Power: 30W
- Current: 0.25A rated / 0.41A locked
- Fan Speed: 3,400 RPM
- Airflow: 226 CFM (6.33 m³/min)
- Sound Level: 58 dBA
- Static Pressure: 0.79" H₂O (20mm)
- Bearing Type: Ball bearing
- Motor Type: Permanent split capacitor
- Frame Material: Aluminum die-cast
- Connection: Terminal
- Operating Temp: -40°C to +70°C (-40°F to 158°F)
- Service Life: 50,000 hours (ball bearing at 25°C)
Certifications
- UL Recognized
- CE Listed
- TUV Listed
- RoHS Compliant
Applications
Ideal for industrial control panels, electrical enclosures, cabinet cooling, HVAC equipment, and other high-airflow continuous-duty environments.
Note: AC power cord not included. This is a high-output industrial fan — not recommended for residential use.
Specifications
- Part Number: UF15PC12-BTH
- Manufacturer : Mechatronics
- Brand : Mechatronics
- Category : Panels
- Item Subcategory : Fan/Thermal Management for Control Panel
Product Data
- UPC : 8414596590
- Dimensions : 172mm x 150mm x 51mm (6.77" x 5.91" x 2.00")
- Weight : 2.02 lb
