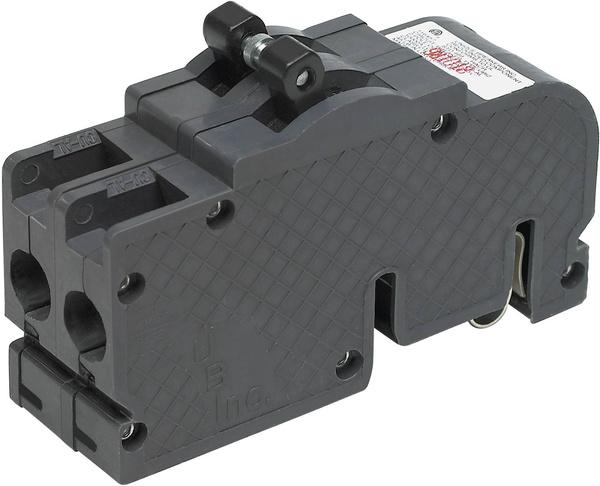

UBIZ2125 - Square D 125 Amp 240 Volt 2 Pole Circuit Breaker Plug-In Mounting Thermal Magnetic

UBIZ2125

UBIZ2125 is a 2 Pole, 125 Amp, 120/240 Volt thermal magnetic circuit breaker with plug-in mounting designed for reliable circuit protection.This molded case circuit breaker features a 10kA interrupting rating at 120/240VAC, long time and instantaneous trip functions, and is UL and ETL approved. It supports lug terminal connections and is suitable for use in load centers with a temperature rating from 0 to 250 °F.

Key Specifications
• Amperage: 125 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupting Rating: 10kAIC at 120/240 VAC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous functions
• Approvals: UL, ETL
• Terminal Connection: Lug
• Phase: Single
• Max Wire Size: 2 AWG
• Min Wire Size: 14 AWG
• Temperature Rating: 0 to 250 °F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: UBIZ2125
• Manufacturer : Square D
• Brand : Zinsco
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thick Series
• Type : UBIZ
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 94925418156
• GTIN : 00094925418156
• Country of Origin : China
• Dimensions : 1.5 in x 4.81 in
• Weight : 2
• Certification : ETL, UL
