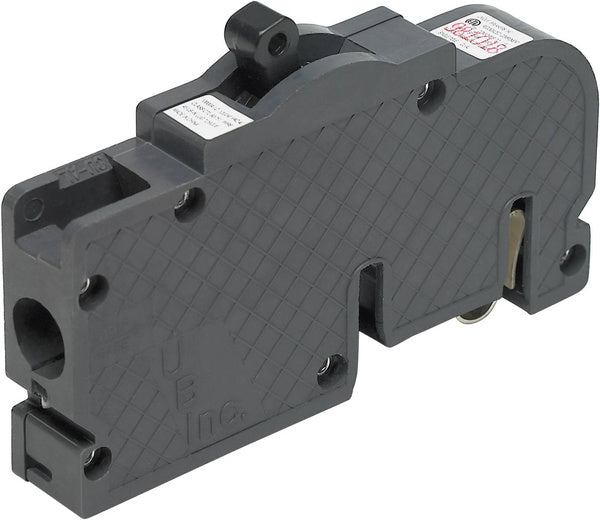

UBIZ15 - Square D 15 Amp 1-Pole 120/240V Plug-In Circuit Breaker Type UBIZ 10kA Interrupt Rating

UBIZ15

This Type UBIZ breaker supports 120/240 Volt applications with a 10,000 Amp interrupt rating (AIC). It features a standard trip unit suitable for residential and light commercial use and is ETL listed for safety and compliance. The breaker is part of the Thick Series family and replaces Zinsco UBIZ breakers in appropriate OEM panelboards.

Key Specifications
• Amperage: 15 Amp
• Voltage: 120/240 Volt
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC
• Series/Frame: UBIZ Thick Series
• Trip Unit: Standard Thermal Magnetic
• Certifications: ETL Listed
• Compatible with Zinsco Load Centers
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: UBIZ15
• Manufacturer : Square D
• Brand : Zinsco
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thick Series
• Type : UBIZ
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/HACR
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 4 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 094925030402
• GTIN : 00094925030389
• Country of Origin : China
• Dimensions : 0.75 in x 4.81 in x 4.81 in
• Weight : 2 lb
• Panel Type : Zinsco Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
