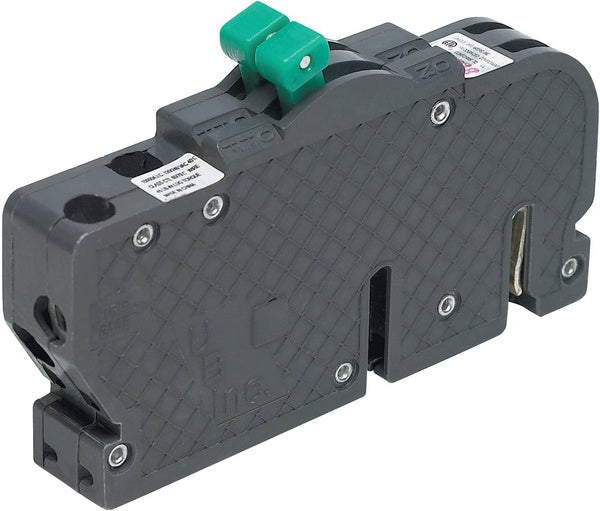

UBIZ0235 - CONNECTICUT-ELECTRIC, INC. 35 Amp 2 Pole 120/240V Thin Type Circuit Breaker

UBIZ0235

UBIZ0235 is a 35 Amp, 2 Pole circuit breaker designed for use in Zinsco electric panels with a thin, plug-in molded case.UBIZ0235 features a 10,000 AIC interrupt rating at 120/240 volts, making it suitable for residential, commercial, and light-industrial applications. This thermal magnetic breaker has a compact 0.75 inch width and is engineered for reliable circuit protection and easy installation in tight panel spaces.

• Amperage: 35 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10,000 AIC
• Mounting Type: Plug-In
• Type/Series: UBIZ Thin Type
• Dimensions: 0.75" W x 4.81" L x 2.50" D
• Trip Unit: Thermal Magnetic
• Compatible with Zinsco Load Centers
• UL Listed and Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIZ0235
• Manufacturer : CONNECTICUT-ELECTRIC, INC.
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thin Series
• Type : UBIZ
• Voltage : 120/240
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/HACR
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 4 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925030228
• GTIN : 00094925030228
• Country of Origin : China
• Dimensions : 0.75 in x 5.63 in x 5.63 in
• Weight : 2 lb
• Panel Type : Zinsco Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
