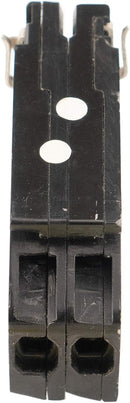

UBITBA230 - Connecticut Electric 30A 2-Pole 120/240V Circuit Breaker Plug Mounting 10kA Interrupt Rating

UBITBA230

UBITBA230 is a 30 amp, 2-pole circuit breaker from Connecticut Electric designed for 120/240 volt applications with plug mounting.This molded case circuit breaker features a standard trip unit and is rated for a 10,000 amp interrupt capacity (AIC). It is HACR rated and suitable for use in Thomas and Betts/Challenger load centers. The breaker requires 1 inch of panel space and supports wire sizes from 14 to 4 AWG with lug terminals.

• Amperage: 30 A
• Voltage Rating: 120/240 V
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Trip Type: Standard
• Series: Type UBITBA (Challenger "A" Series)
• HACR Rated
• Wire Size: 14 to 4 AWG
• Dimensions: 3.63 in L x 1 in W x 2.5 in H
• Suitable for Thomas and Betts/Challenger Load Centers
• Operating Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBITBA230
• Manufacturer : Connecticut Electric
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Type A
• Type : UBITBA
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 094925021042
• GTIN : 00094925021042
• Country of Origin : China
• Dimensions : 1 in x 3.63 in x 3.63 in
• Weight : 2
• Certification : ETL Listed, UL Listed
