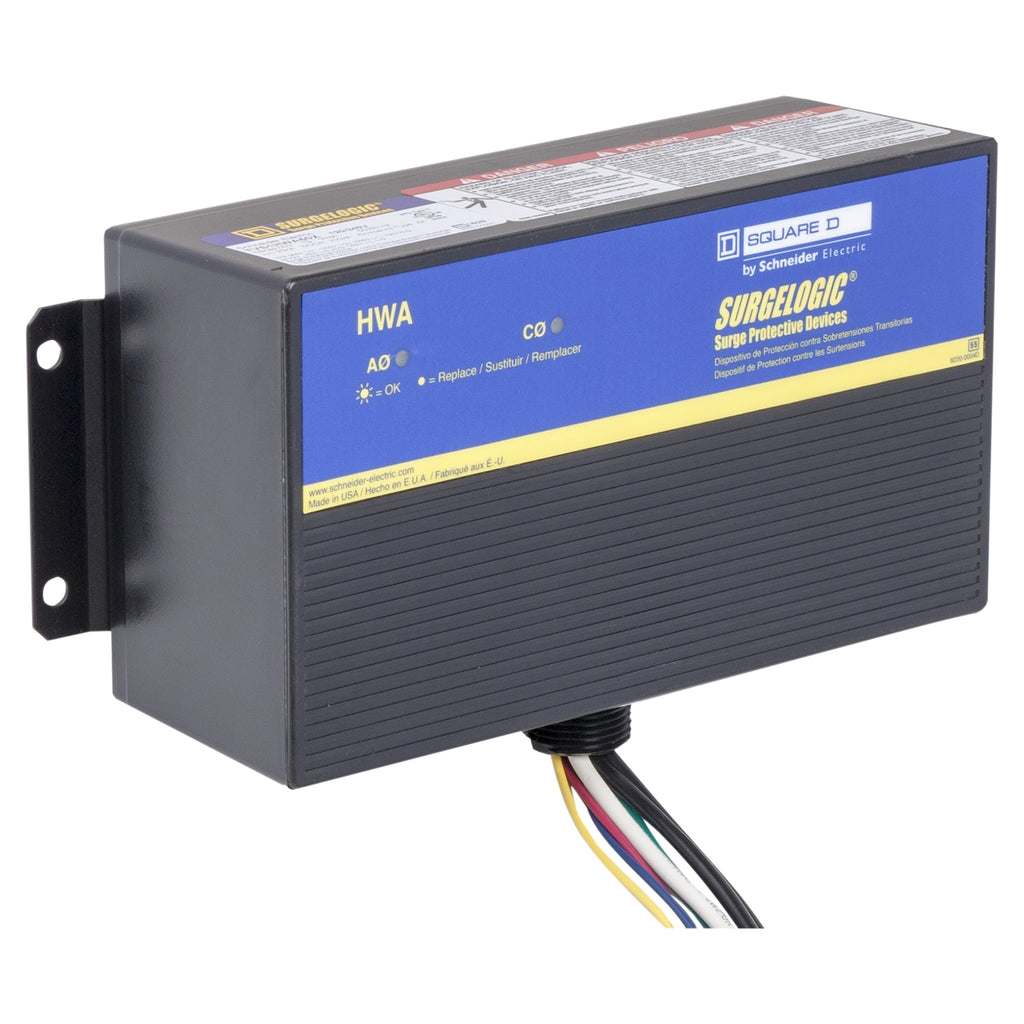

TVS6HWA10X - Square D 100kA 240VAC Delta 3-Phase 3-Wire Surge Protection Device QO Frame NEMA 4X

TVS6HWA10X

TVS6HWA10X is a Square D Surge Protection Device designed for 3-phase, 3-wire 240VAC delta systems with a 100kA surge current rating and QO frame compatibility.TVS6HWA10X features a hardwired parallel connection method, NEMA 4X non-metallic enclosure, and a short circuit current rating of 200kA. It includes individually fused MOVs with thermal and overcurrent fusing, EMI/RFI filtering, and audible and LED status indicators for reliable surge suppression in industrial and commercial applications.

• Surge Current Rating: 100kA per phase
• Voltage Rating: 240VAC Delta
• Phases: 3-Phase, 3-Wire
• Frame Type: QO
• Short Circuit Current Rating: 200kA
• Mounting Type: Hardwired, Parallel Connection
• Enclosure: NEMA 4X Non-Metallic
• Fusing: Individually fused MOVs with thermal and overcurrent protection
• EMI/RFI Filtering: -54 dB
• Status Indicators: Audible alarm and LED light
• Operating Frequency: 50/60 Hz
• Dimensions: 8.62" x 4.80" x 2.92"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TVS6HWA10X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : HWA
• Voltage : 240VAC
• Amperage : 20000
• Phase : 3
• Poles : 1
• Temp Rating : -13–158 °F (-25–70 °C)
• Compatible Frames : QO

Product Data

• UPC : 785901630197
• GTIN : 00785901630197
• Country of Origin : Mexico
• Dimensions : 4.8 in (122 mm) x 8.6 in (219 mm) x 3.1 in (79 mm) (Height x Width x Depth)
• Weight : 3.9
• Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986
• Wire Size : AWG 10 to 22 Copper
