TVS4HWA80X - Square D Surge Protection Device 80kA 480Y/277VAC 3-Phase 4-Wire NEMA 4X

TVS4HWA80X

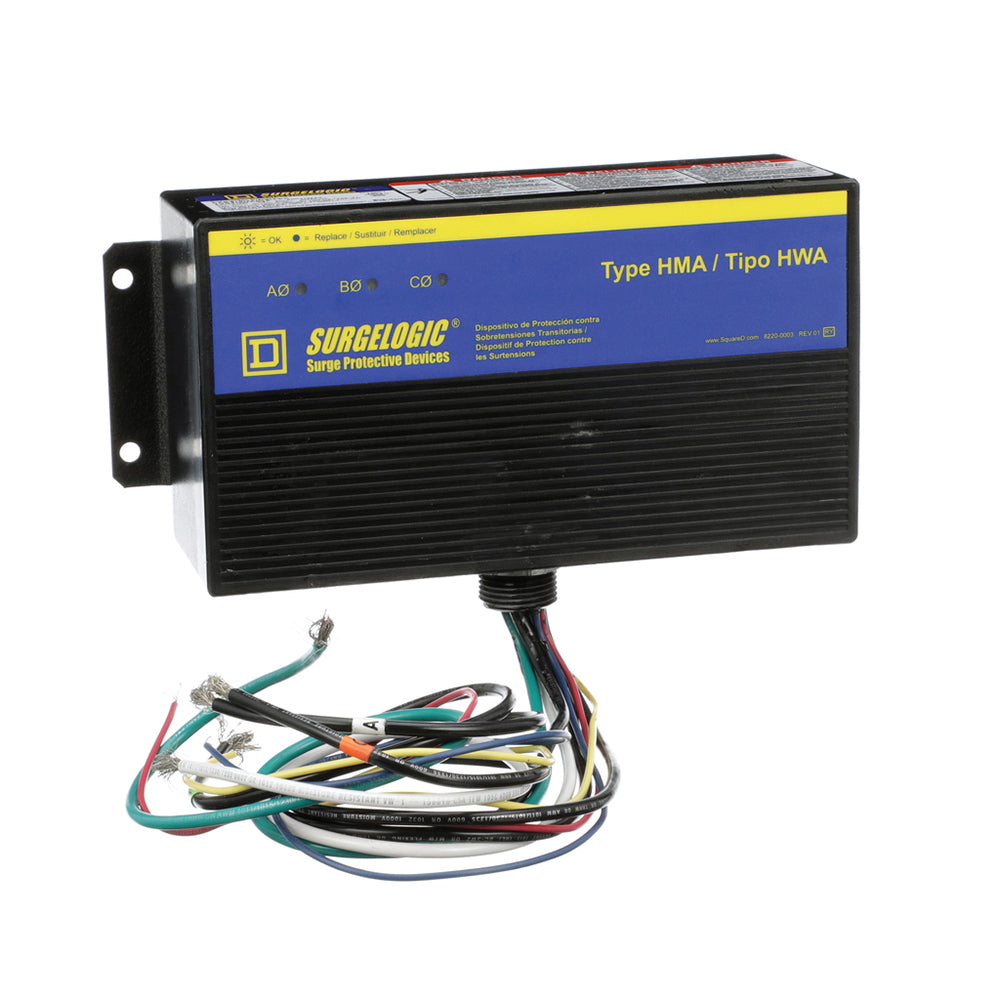

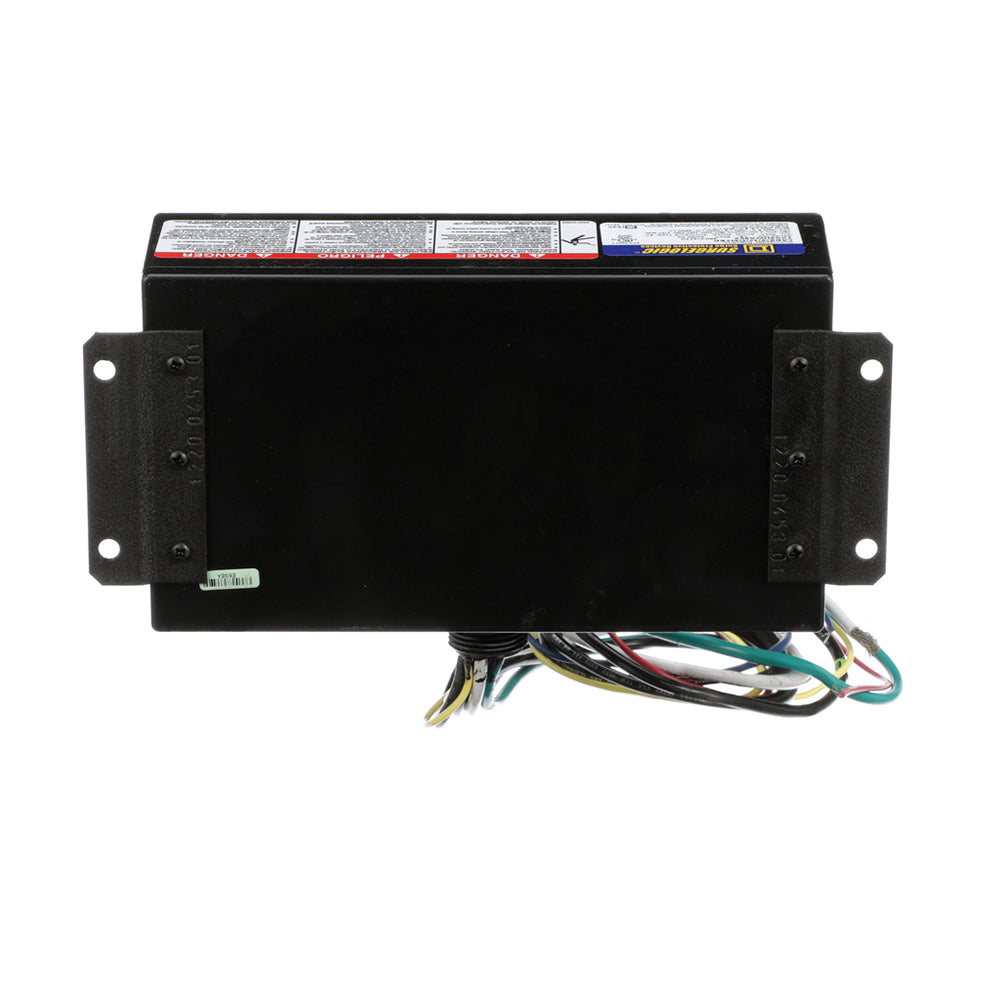

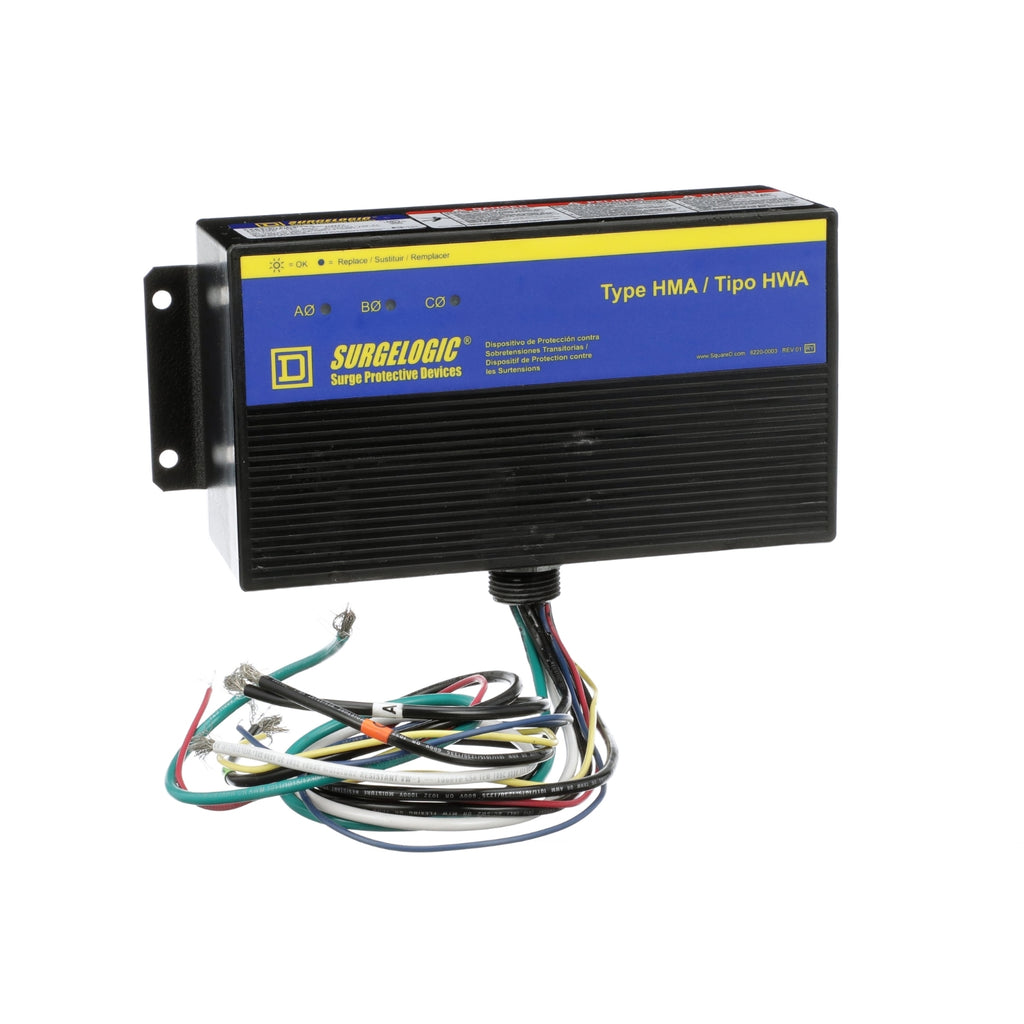

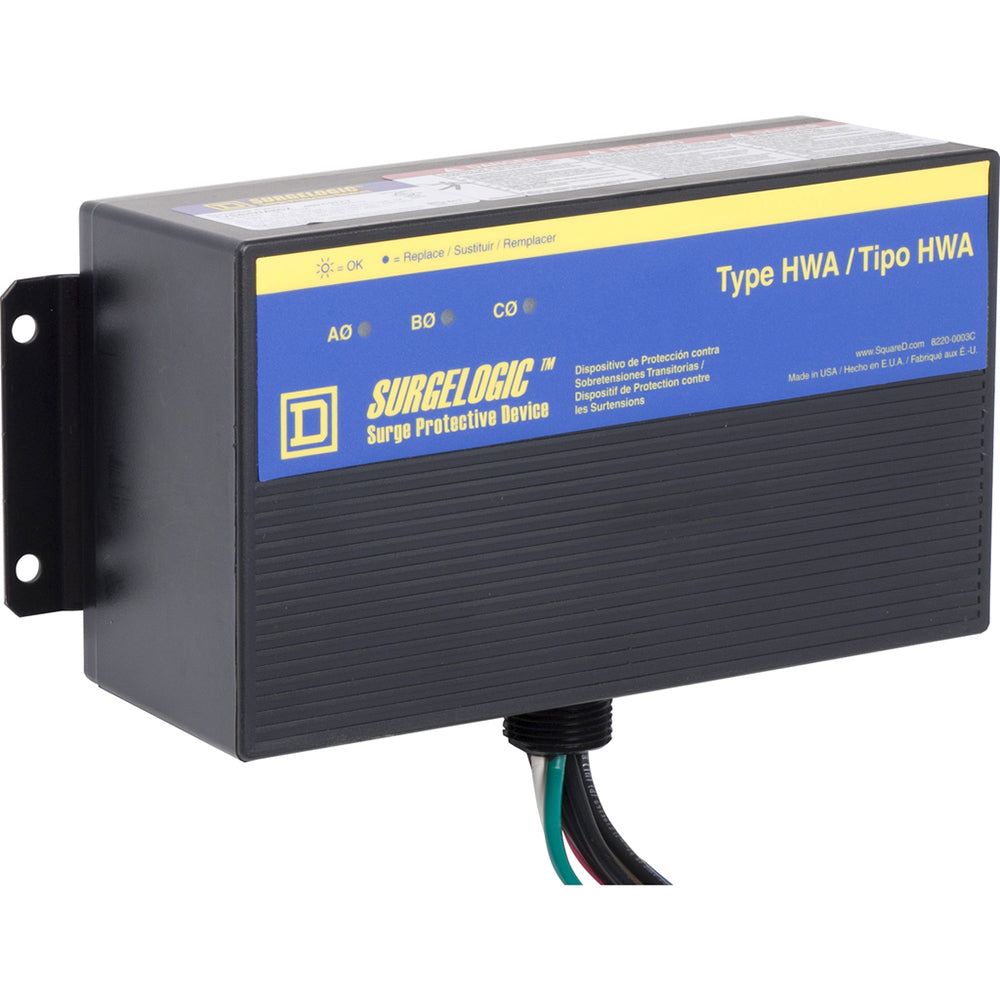

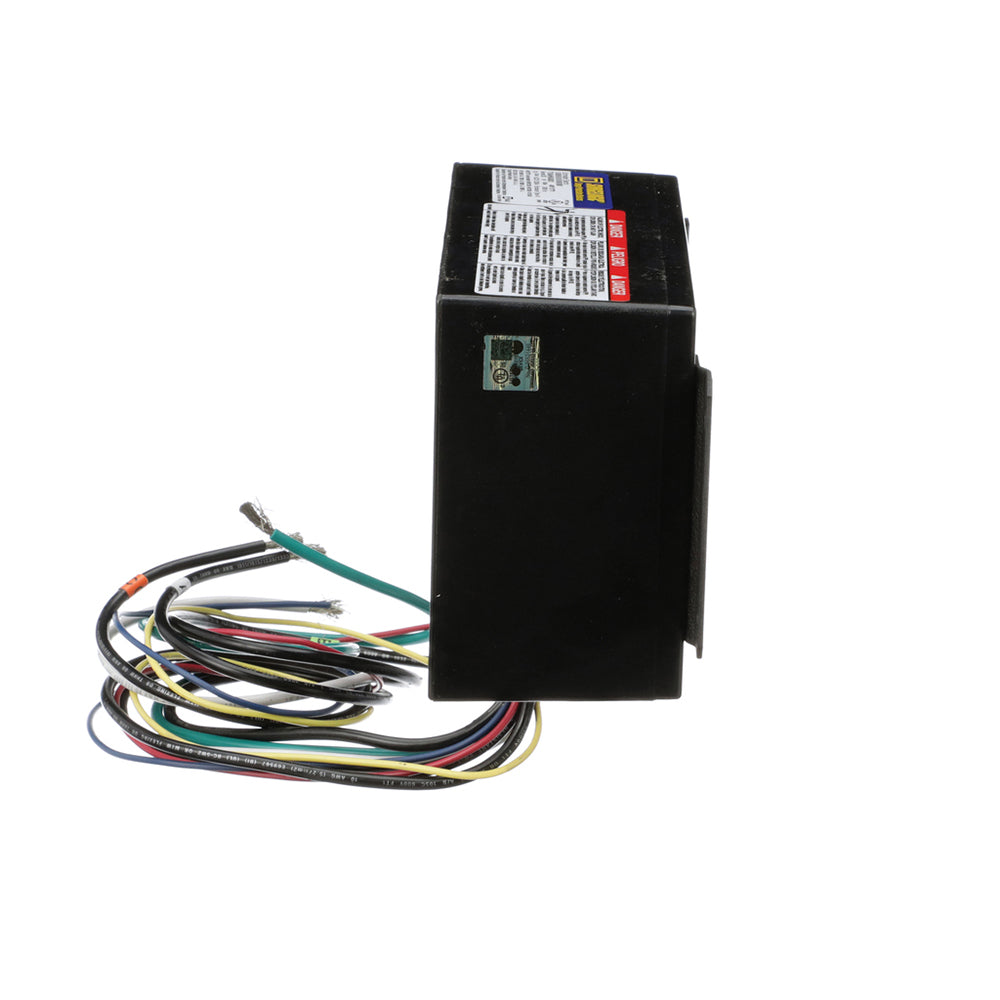

TVS4HWA80X is a Square D SURGELOGIC surge protection device designed for three-phase, four-wire electrical systems with a maximum surge current of 80kA per phase. This device provides robust protection for sensitive equipment in commercial and industrial environments. The TVS4HWA80X is engineered for 480Y/277VAC applications and features a flange mounting style for secure installation. It is compatible with QO or Homeline load centers and is built to meet rigorous safety standards, including UL 1449 4th Edition, UL 1283 5th Edition, and CSA C22.2 No. 8:1986. The unit offers a short-circuit protection rating of 200kA and is suitable for use in demanding environments.

• Part Number: TVS4HWA80X
• Manufacturer: Square D
• Surge Current: 80kA per phase
• Nominal Discharge Current: 20kA
• Number of Phases: 3 phase
• Wiring Configuration: 4-wire
• Voltage Rating: 480Y/277VAC
• Mounting Type: Flange
• Short-Circuit Protection: 200kA
• Standards: UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No. 8:1986
• Application: Commercial and industrial surge protection
• Warranty: 2-year manufacturer warranty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TVS4HWA80X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : TVS

Product Data

• UPC : 785901406235
• GTIN : 00785901406235
• Dimensions : 4.8 in (122 mm) x 8.6 in (219 mm) x 3.1 in (79 mm) (Height x Width x Depth)
• Weight : 5.119
• Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986
