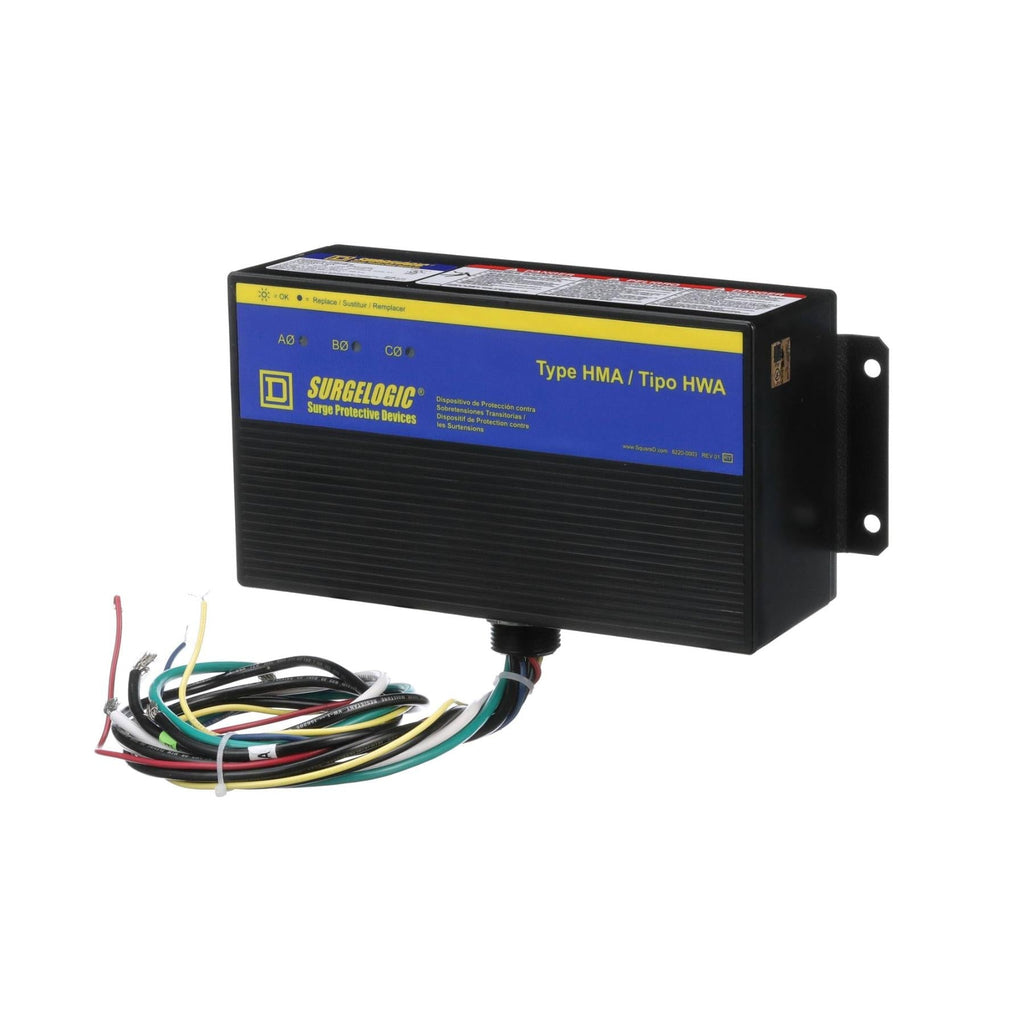

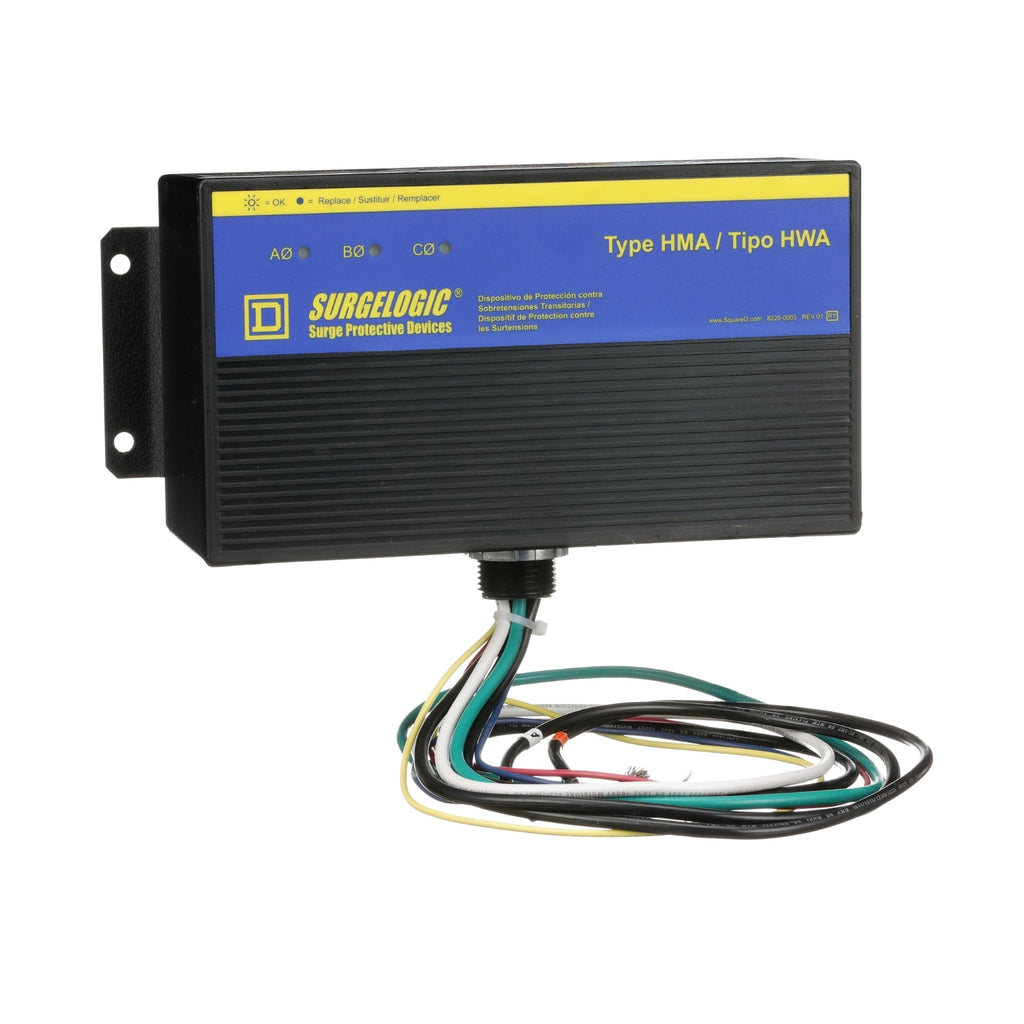

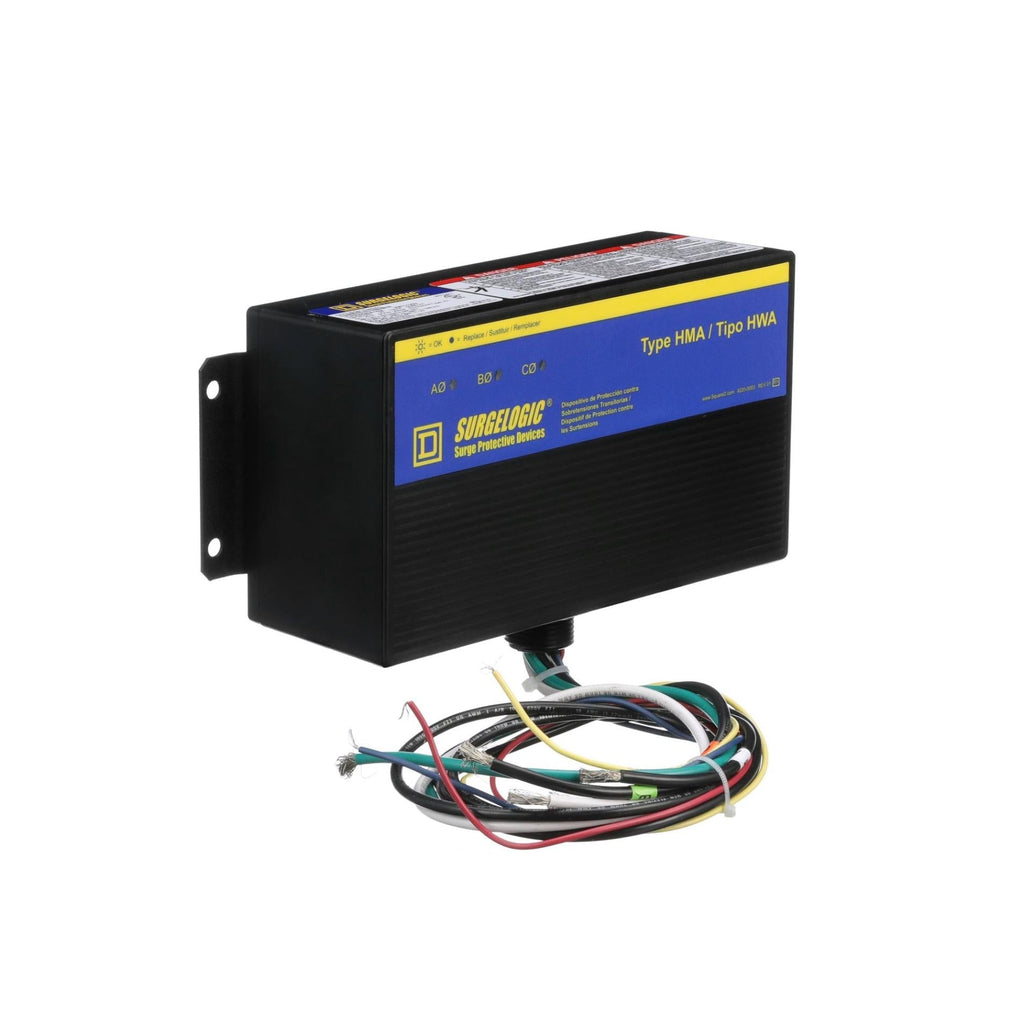

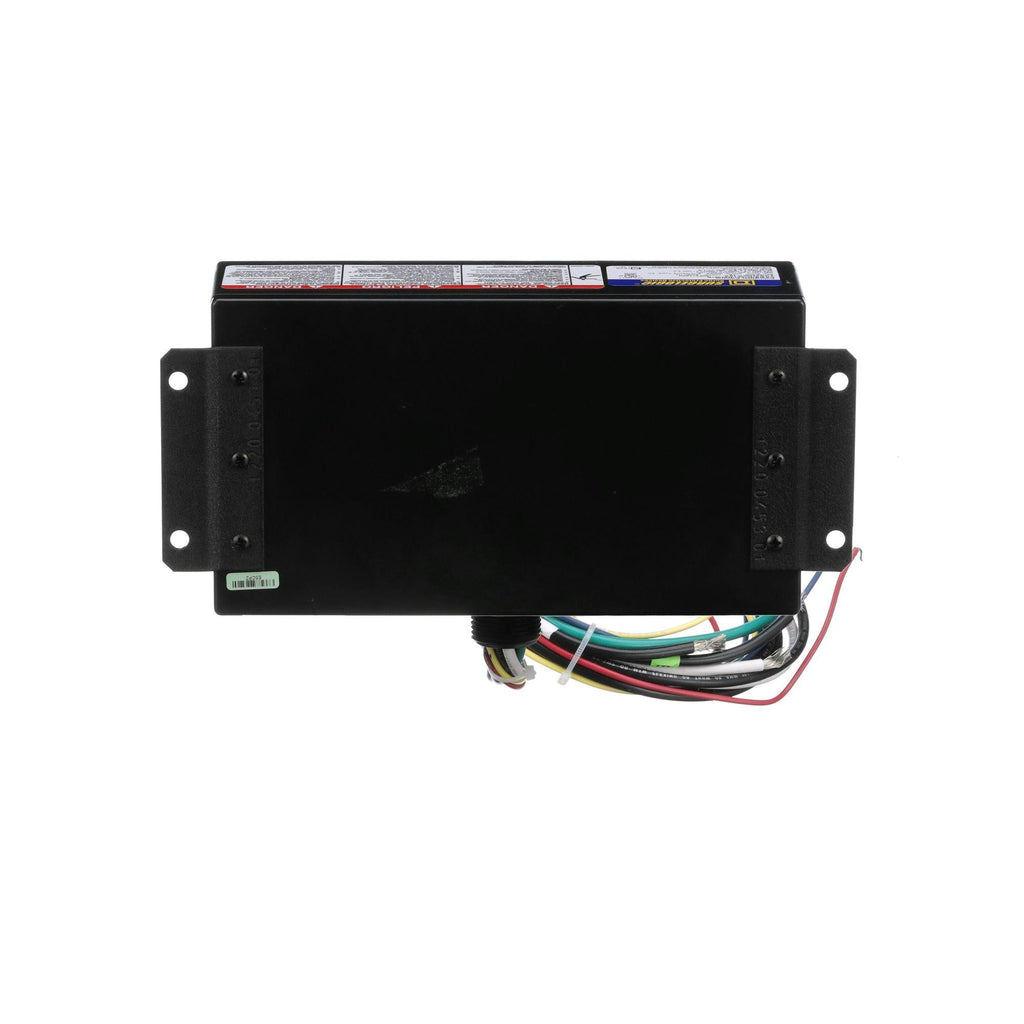

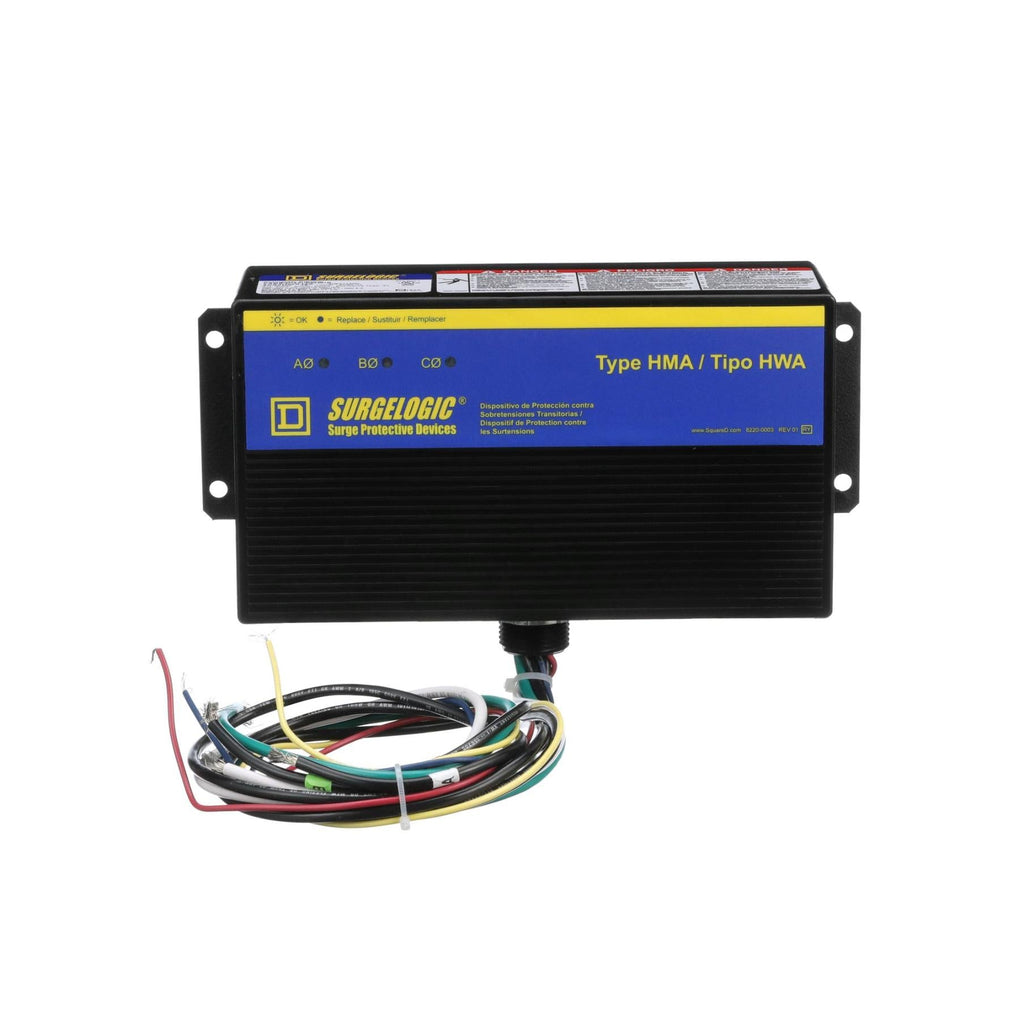

TVS4HWA10X - Square D 100kA 480Y/277VAC 3-Phase 4-Wire NEMA 4X Surge Protective Device

TVS4HWA10X

TVS4HWA10X is a Square D surge protective device designed for 3-phase, 4-wire systems with a 480Y/277VAC rating and 100kA surge current capacity.This device features a NEMA 4X rating for indoor or outdoor installation, providing robust surge protection with a 100kA short circuit current rating. It is a non-modular, 2-pole surge protection device from the Surgelogic HWA series, suitable for use in QO or Homeline load centers.

• Manufacturer: Square D
• Part Number: TVS4HWA10X
• Voltage Rating: 480Y/277VAC
• Phase: 3-Phase
• Wiring: 4-Wire
• Surge Current Capacity: 100kA
• Number of Poles: 2
• Series/Frame: Surgelogic HWA
• Mounting Type: Fits QO or Homeline load centers
• Enclosure Rating: NEMA 4X (indoor/outdoor)
• Trip Unit: Not applicable (surge protective device)
• Certifications: Meets industry standards for surge protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TVS4HWA10X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : TVS HWA
• Voltage : 277
• Amperage : 100
• Phase : 3
• Poles : 2
• Connection : Wire phase and neutral AWG 10 copper, Wire ground AWG 10 copper, Wire dry contacts AWG 22 copper
• Compatible Frames : TVS

Product Data

• UPC : 785901961055
• Country of Origin : Mexico
• Dimensions : 4.8 in (122 mm) x 8.6 in (219 mm) x 3.1 in (79 mm) (Height x Width x Depth)
• Weight : 5.201
• Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986
• Certification : UL, CSA
• Wire Size : 10 AWG
