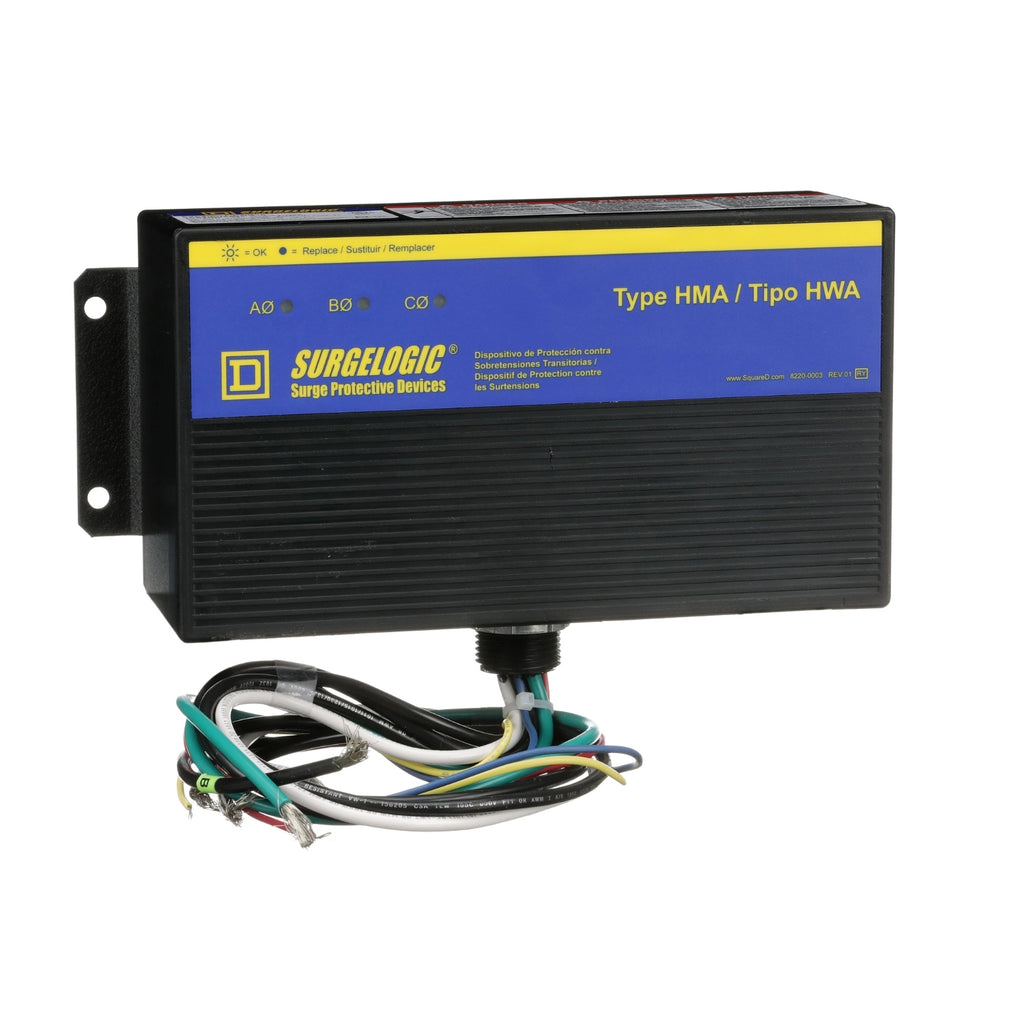

TVS2HWA80X - Square D 80kA 208Y/120VAC 3-Phase 4-Wire NEMA 4X Surge Protection Device

TVS2HWA80X

TVS2HWA80X is a Square D surge protection device designed for 3-phase, 4-wire electrical systems with a voltage rating of 208Y/120VAC and an 80kA surge current capacity.This device features a compact, nipple panel mounting type suitable for service entrance applications. It is part of the Surgelogic HWA series with a QO frame type, providing robust surge suppression with a short circuit current rating of 200kA. The unit is NEMA 4X rated for indoor and outdoor use, includes LED operational status indicators, an audible alarm for loss of suppression, and dry contacts for monitoring. It complies with UL 1449 Type 2, UL 1283, NEC Article 285, and CSA standards.

Key Specifications
• Voltage Rating: 208Y/120VAC
• Surge Current Capacity: 80kA
• Phases: 3
• Wires: 4 (including ground)
• Mounting Type: Nipple, Panel Mount
• Frame Type: QO
• NEMA Rating: 4X
• Short Circuit Current Rating: 200kA
• Trip Unit: Surge Protective Device (SPD)
• Certifications: UL Listed, NEC Compliant, CSA Certified, RoHS Compliant
• Operating Temperature: -4 to 149 °F
• Audible Alarm and LED Status Indicators

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TVS2HWA80X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : Surgelogic
• Voltage : 208Y/120VAC
• Phase : 3
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Compatible Frames : QO

Product Data

• UPC : 785901293668
• Dimensions : 9.4 in (238.8 mm) x 4.8 in (121.9 mm) x 3.1 in (78.7 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL 1449:ed. 4: type II, UL 1283, NEC 285, CSA C22.2 No 8, UL 96A:ed. 12
• Certification : NEC, UL, CSA
• Wire Size : AWG 10
