Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TRS9R

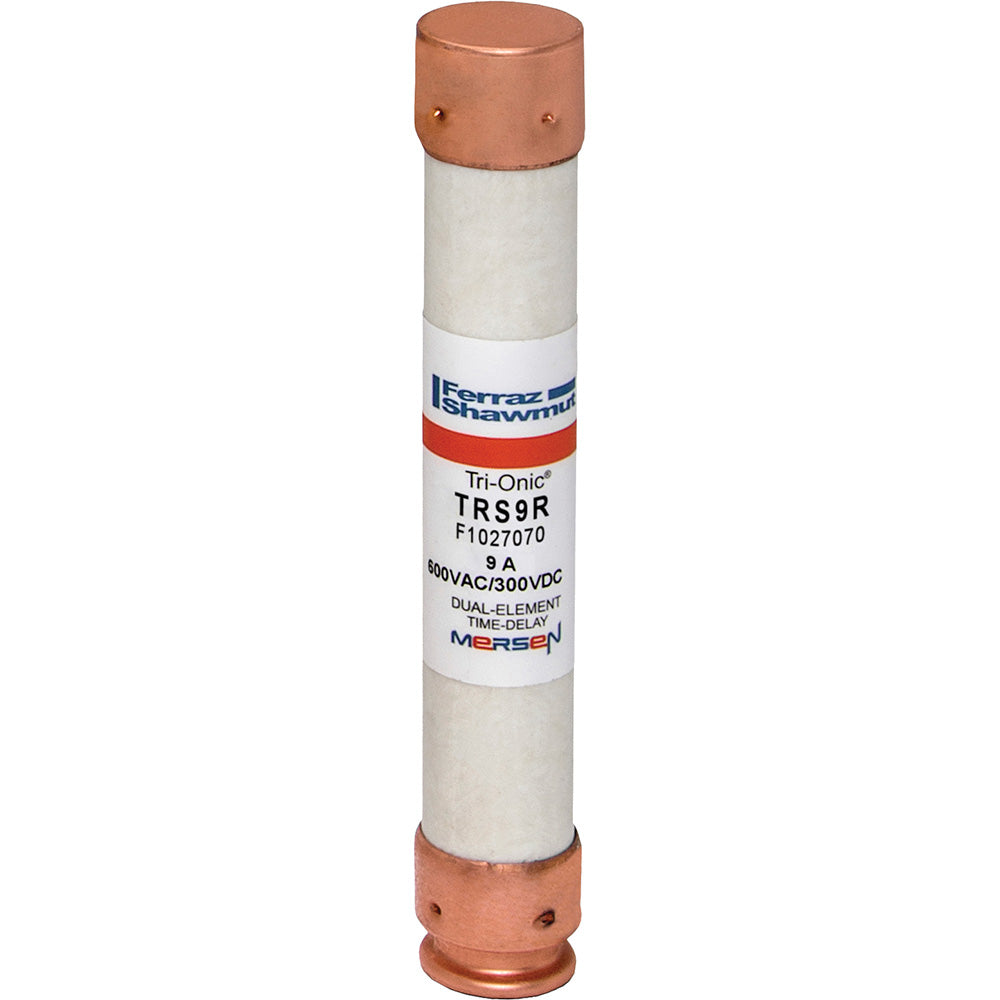

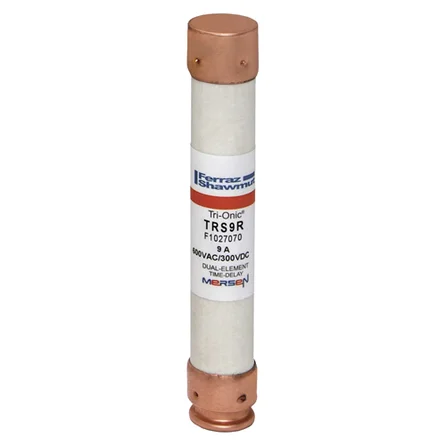

TRS9R is a Mersen Class RK5 time-delay current limiting fuse rated for 9 amps and 600 volts AC/DC.
This fuse features a cylindrical body with clip mounting and ferrule connection terminals. It is designed for motor circuits, feeders, branch circuits, transformers, and general-purpose equipment. The TRS9R fuse provides high interrupting ratings of 200kA AC and 20kA DC (up to 60A) with time-delay and current-limiting characteristics to protect electrical systems from overloads and short circuits. It is UL listed, CSA certified, and DC listed to UL 248 standards.
- Key Specifications
- Amperage: 9 A
- Voltage: 600 V AC/DC
- Interrupt Rating: 200kA AC, 20kA DC
- Fuse Class: RK5
- Series: TRS-R
- Mounting Type: Clip
- Connection Type: Ferrule
- Time-Delay: Yes
- Current-Limiting: Yes
- Body Type: Cylindrical
- Certifications: UL Listed, CSA Certified, DC Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TRS9R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 9
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748791
- GTIN : 00782001748791
- Weight : 0.2
