Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TRS60R

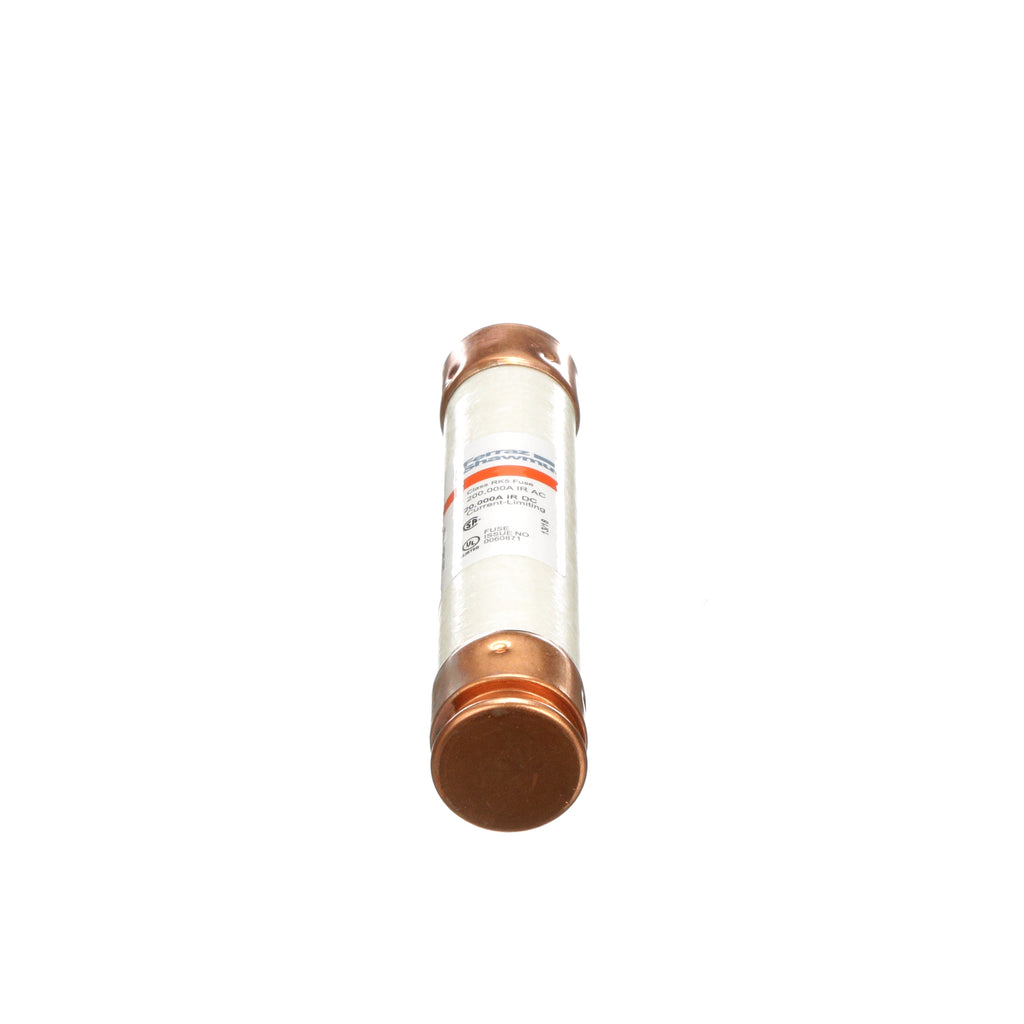

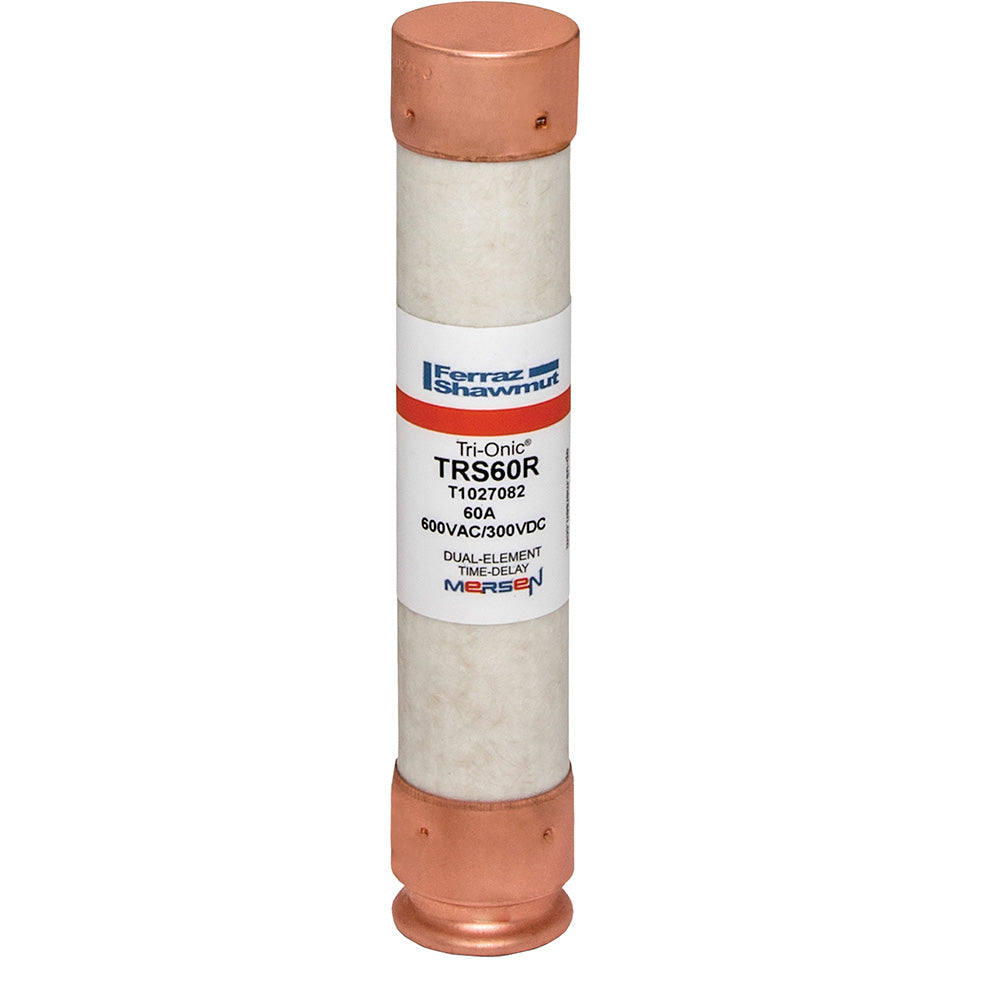

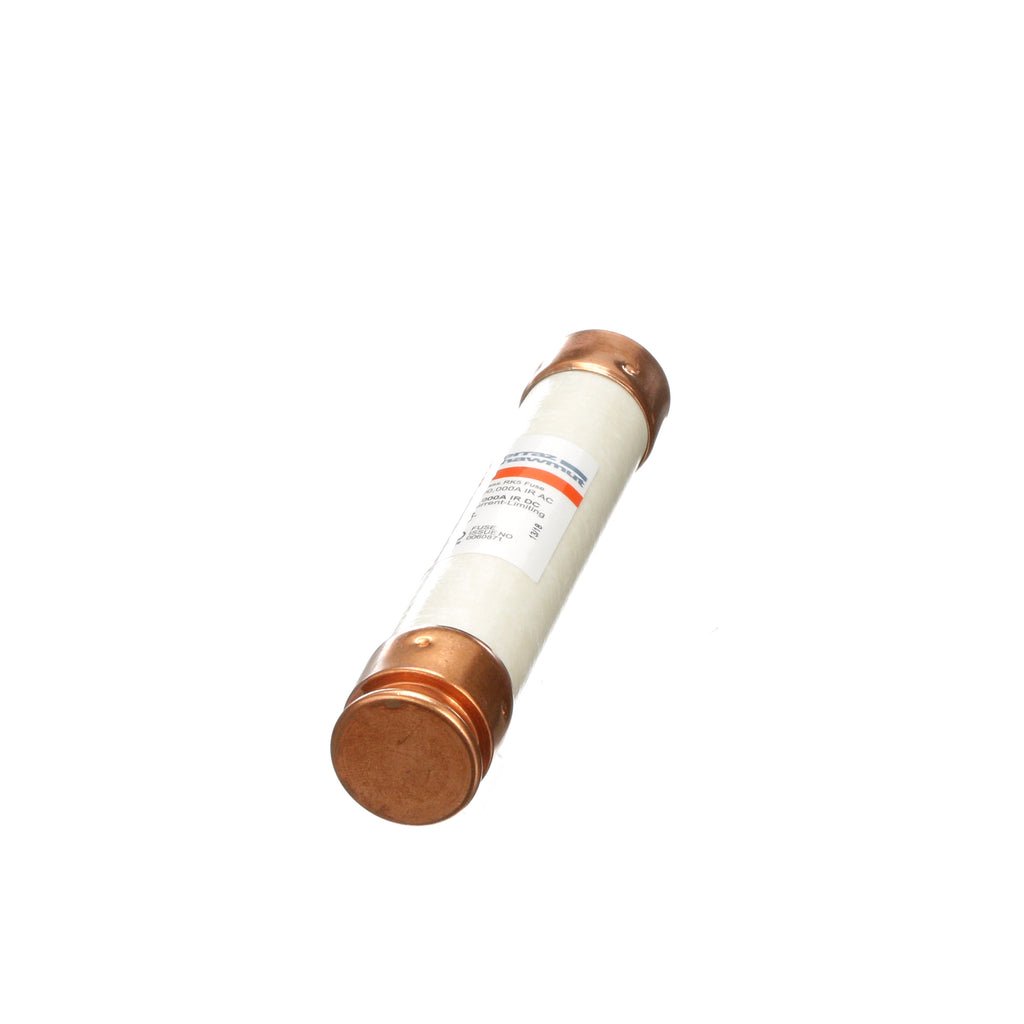

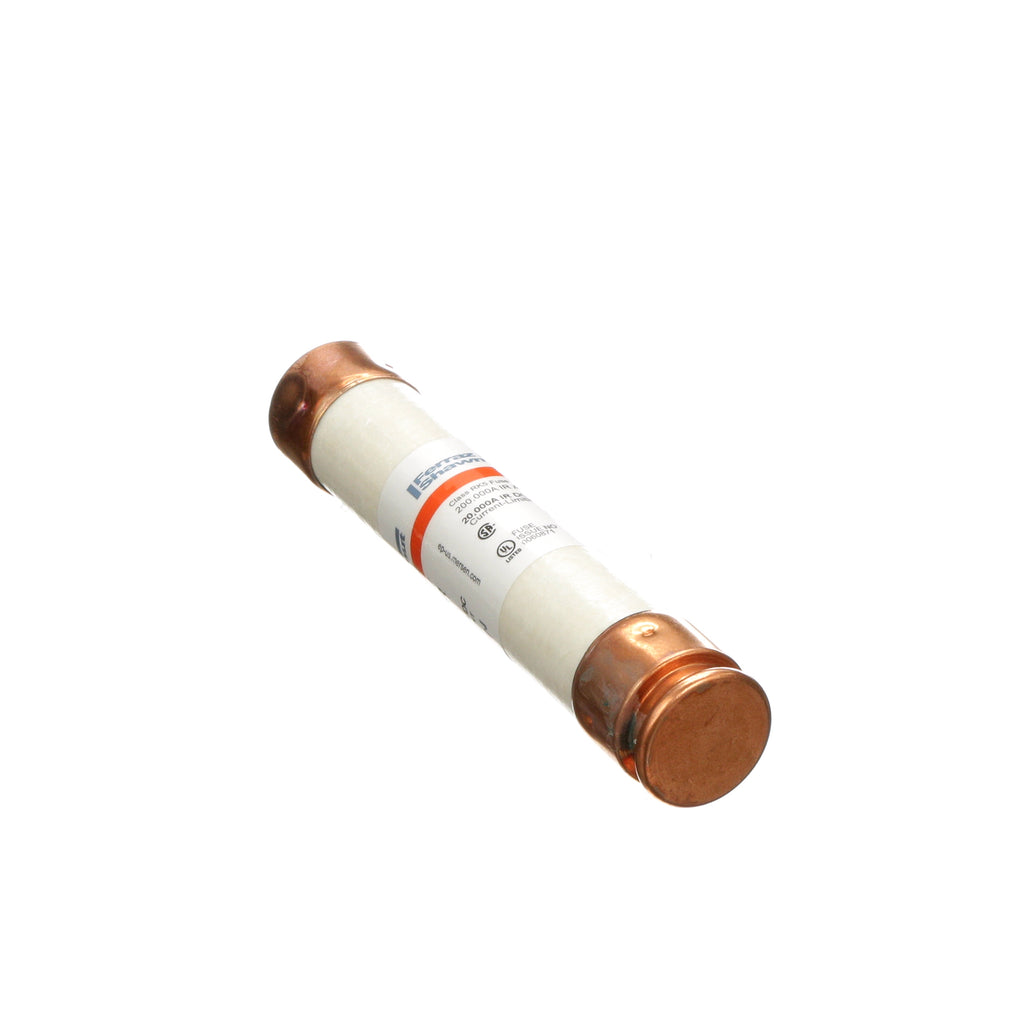

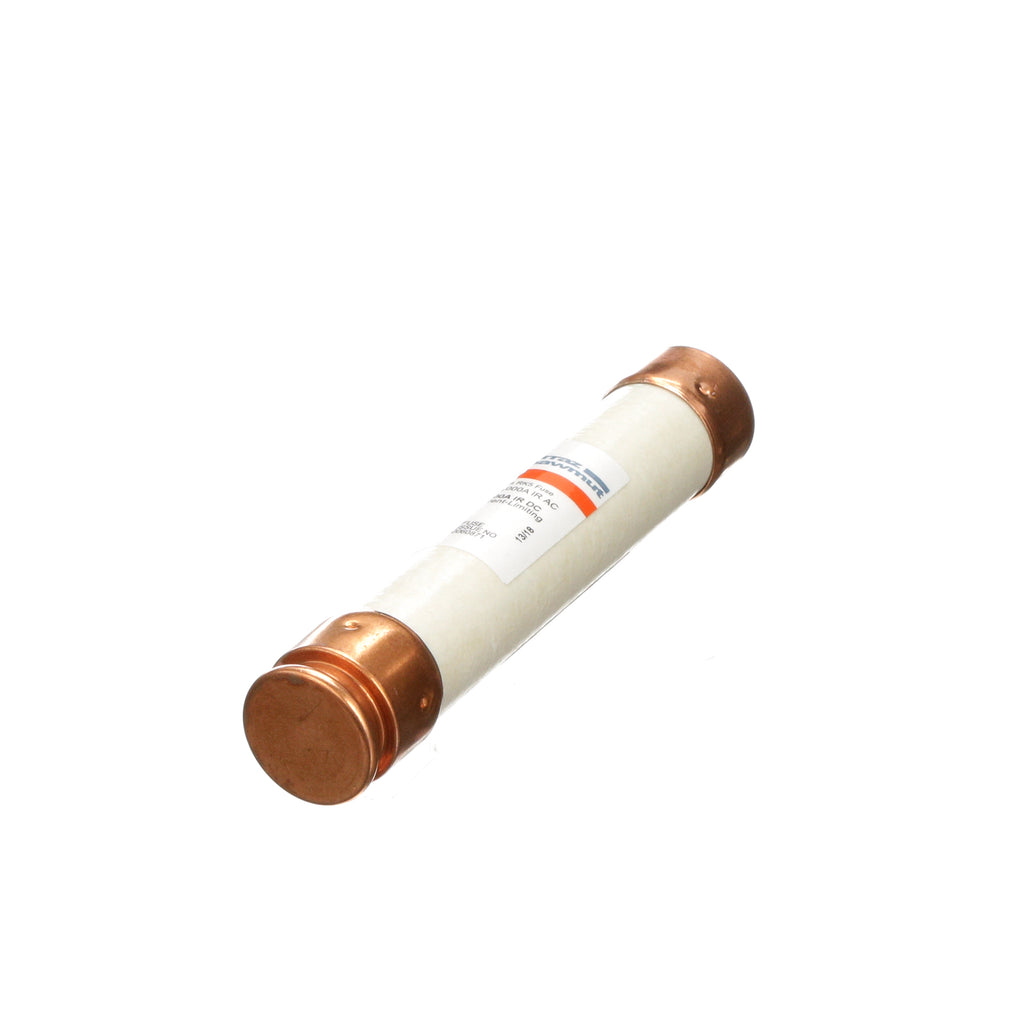

TRS60R is a Mersen 600V Class RK5 time-delay, current-limiting fuse rated for 60 amps, designed for reliable protection in motor circuits, mains, feeders, transformers, and general-purpose applications. The rejection-style design prevents incorrect replacements when used with recommended fuse blocks, and the fiberglass body with silica filler ensures fast arc quenching and high current limitation. This fuse features a ferrule terminal, 1-1/16 inch diameter, and 5-1/2 inch length, suitable for industrial and commercial power distribution systems. It is UL listed to standard 248-12 and CSA certified to standard C22.2 No. 248.12, providing trusted safety and performance.
- Part Number: TRS60R
- Manufacturer: Mersen
- Ampere Rating: 60 A
- AC Voltage: 600 VAC
- DC Voltage: 300 VDC
- Fuse Class: Class RK5
- Fuse Type: Time-Delay, Current-Limiting
- Interrupting Rating: 200 kA AC, 20 kA DC
- Mounting Type: Ferrule Terminal
- Dimensions: 1-1/16" x 5-1/2"
- Approvals: UL 248-12, CSA C22.2 No. 248.12
- Series: TRS-R
Specifications
- Part Number: TRS60R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001749040
- GTIN : 00782001749040
- Weight : 5.19
