Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
TRS60

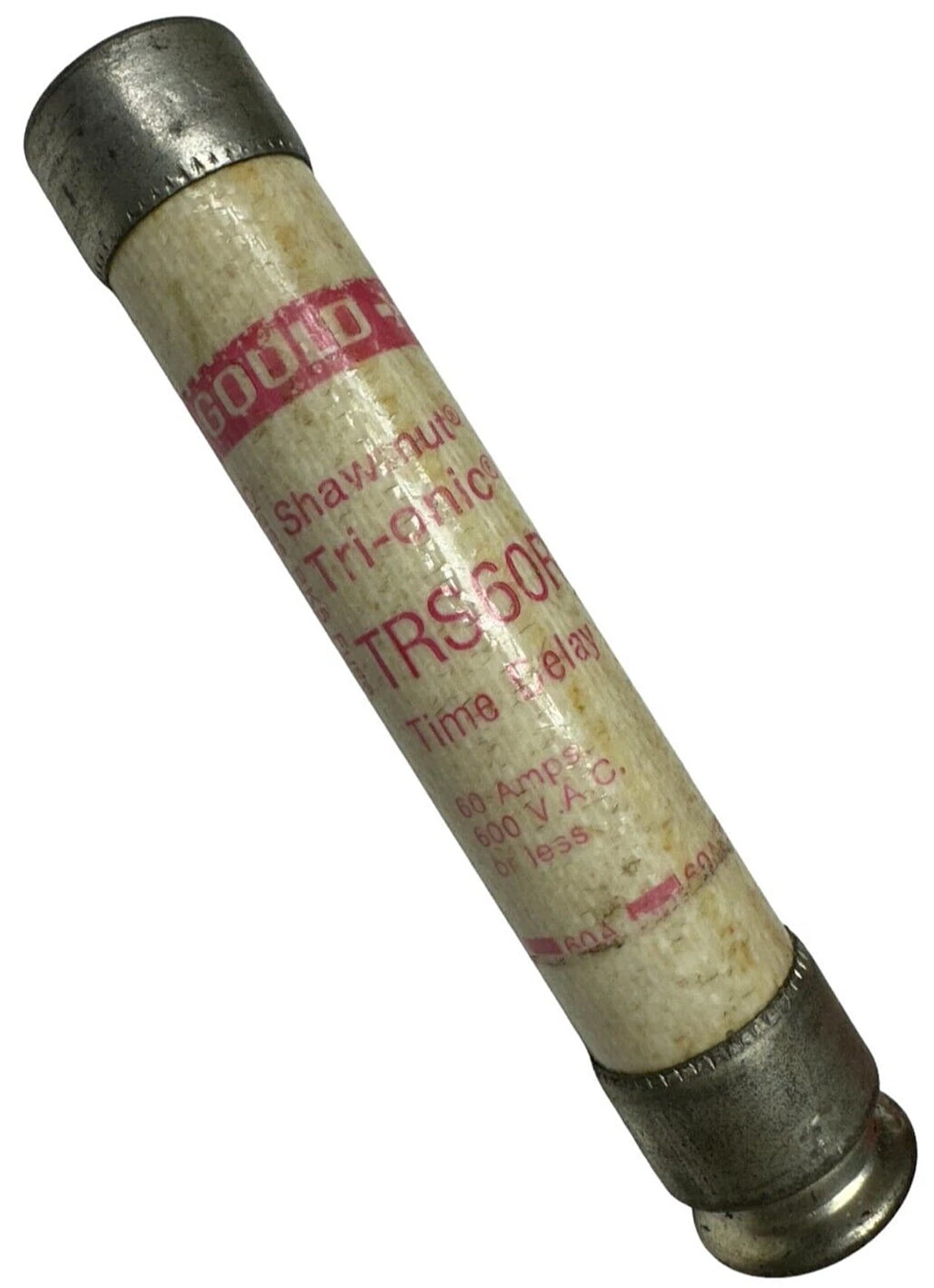

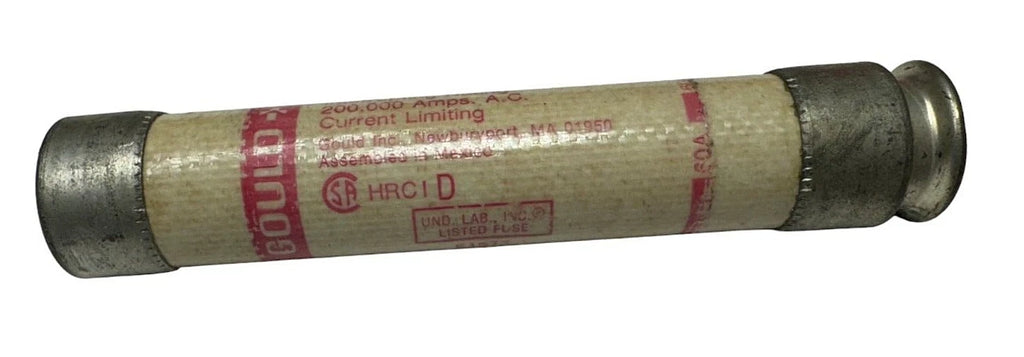

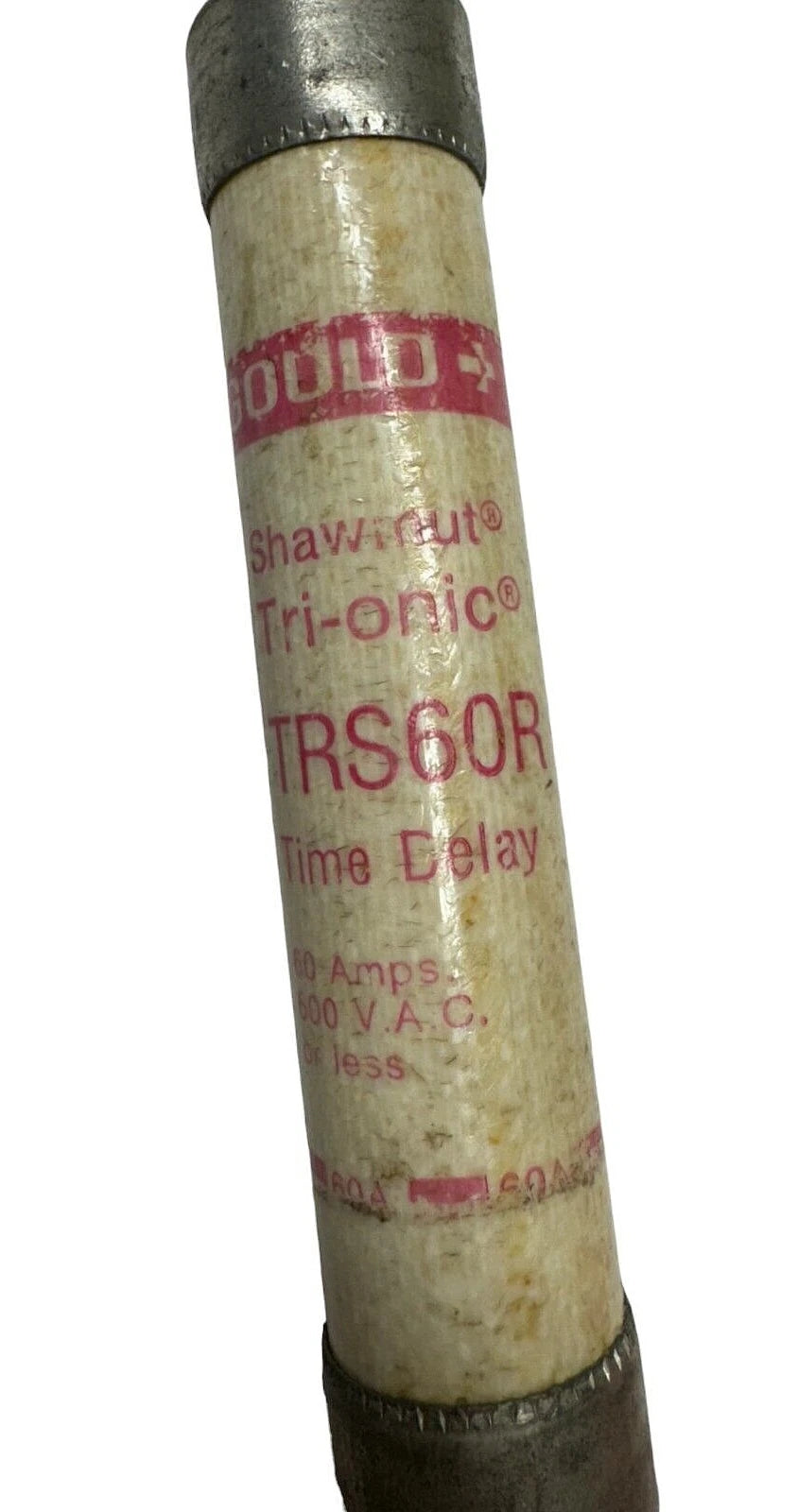

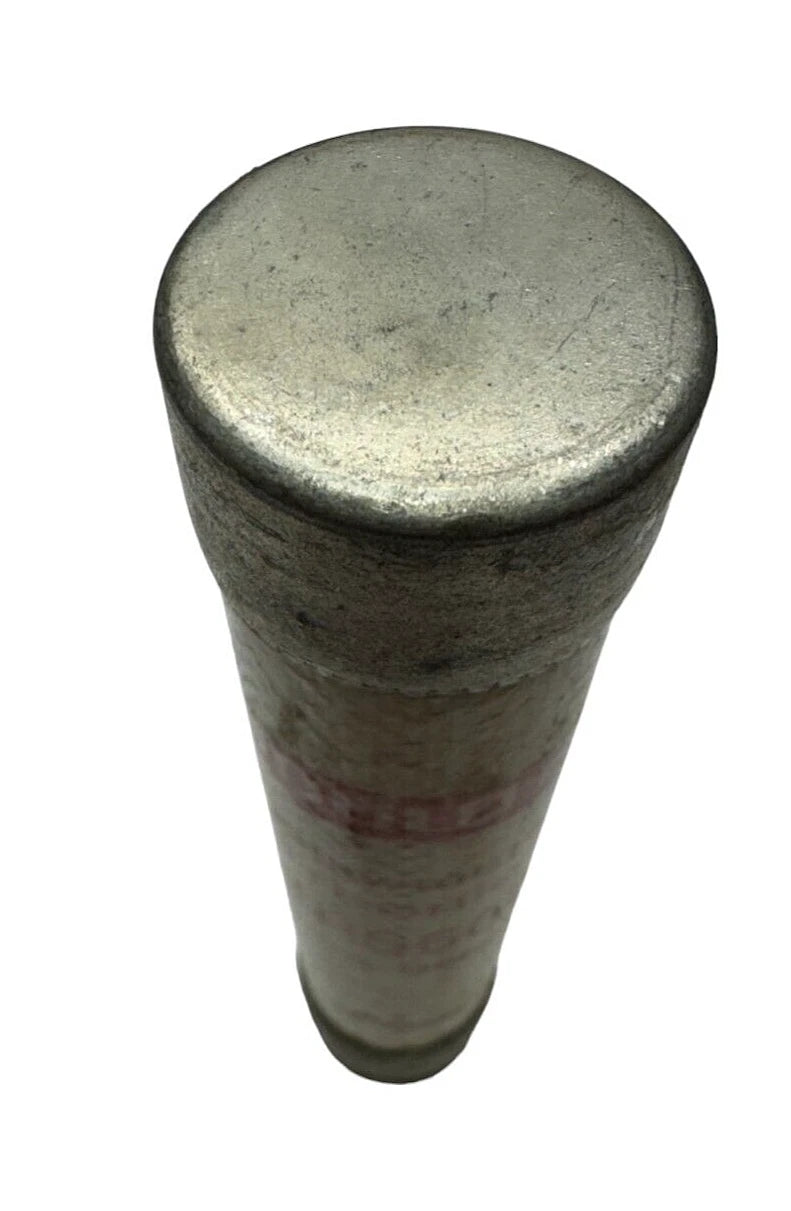

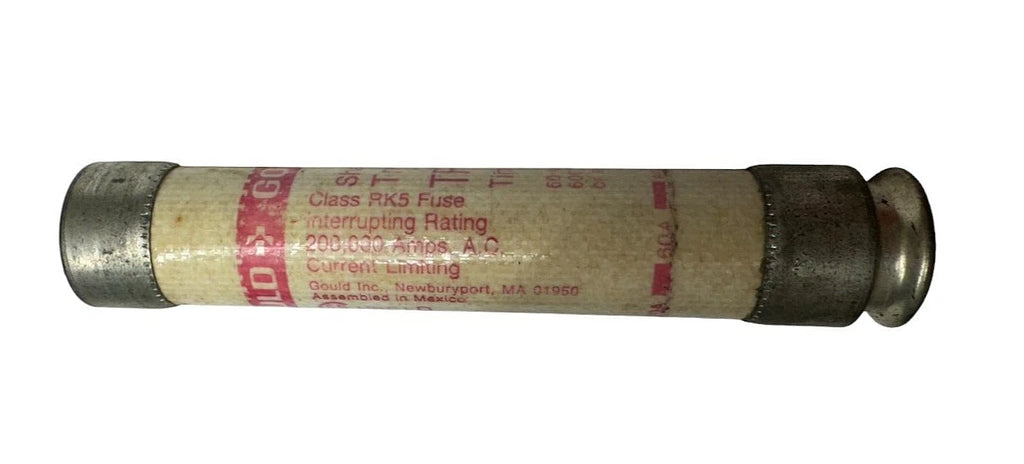

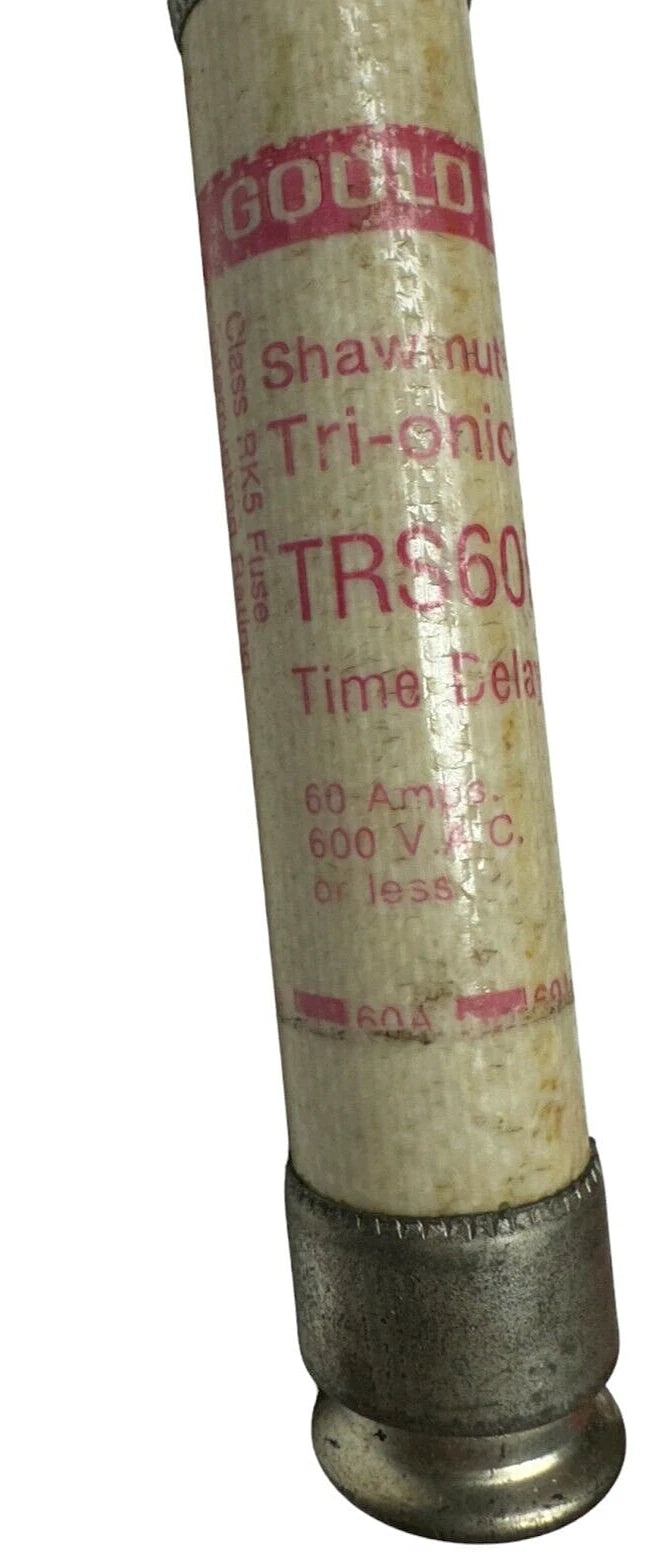

TRS60R is a 60 Amp, 600 Volt Class RK5 time delay fuse from Mersen / Ferraz Shawmut designed for reliable current limiting protection.This fuse features a time delay dual element design suitable for AC and DC applications, with a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. It has a fiberglass tube body with ferrule terminals and a rejection style to prevent replacement errors. Certified to UL 198L, UL 248-12, and CSA C22.2 standards, it measures 1-1/16 inch in diameter and 5-1/2 inches in length.
- Key Specifications
- Amperage: 60 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Time Delay Dual Element
- Interrupting Rating: 200kA AC / 20kA DC
- Mounting Type: Ferrule Terminal
- Fuse Body: Fiberglass Tube

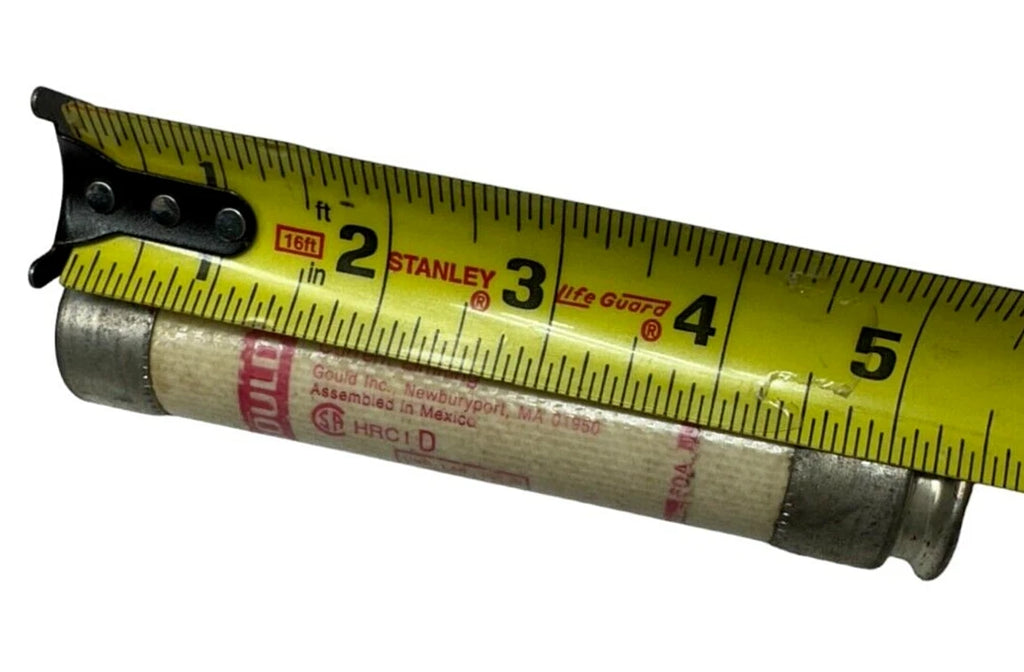

- Dimensions: 1-1/16" diameter x 5-1/2" length
- Rejection Style Design
- Certifications: UL 198L, UL 248-12, CSA C22.2
Specifications
- Part Number: TRS60
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 0.15
