TRS6-1/4R - Ferraz Shawmut 6.25A 600V Class RK5 Time Delay Fuse

TRS6-1/4R

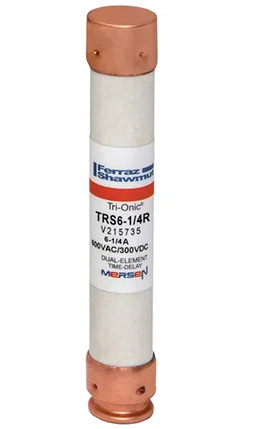

TRS6-1/4R is a Ferraz Shawmut time delay fuse designed for reliable overcurrent protection in motor and transformer circuits.This fuse features a 6.25 ampere rating and 600 volts AC/DC voltage rating, with a Class RK5 current limiting design. It is dual element and time delay type, providing enhanced protection against transient overloads. The fuse measures 13/16 inch diameter by 5 inches in length and has an interrupting rating of 200,000 AIC at 600VAC and 20,000 AIC at 600VDC. Its rejection style design prevents replacement errors, and it is UL and CSA certified.

Key Specifications
• Amperage: 6.25A
• Voltage Rating: 600VAC/600VDC
• Fuse Class: RK5
• Type: Time Delay, Dual Element
• Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 600VDC
• Physical Size: 13/16" diameter x 5" length
• Current Limiting
• Rejection Style Design
• Poles: 1
• Certifications: UL 248-12, CSA C22.2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TRS6-1/4R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TRS
• Voltage : 600
• Amperage : 6
• AIC rating : 200kA@600V
• Diameter : 0.56
• Class Rating : R/k5
• Barrels : 1



Product Data

• UPC : 782001748760
• GTIN : 00782001748760
• Weight : 5.19
