Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

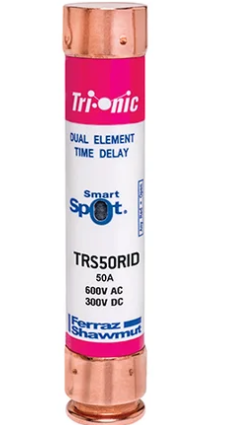

TRS50RID
TRS50RID is a 50 Amp, 600 Volt AC Class RK5 time delay fuse with indicator designed for reliable circuit protection.This Ferraz Shawmut TRS50RID fuse features a dual element, current limiting design with a clip mounting type. It is rated for 600V AC and 300V DC applications, with an interrupting rating of 200,000 AIC at 600VAC and 20,000 AIC at 300VDC. The fuse includes a rejection style design to prevent replacement errors and is UL and CSA certified.
- Key Specifications
- Amperage: 50 Amps
- Voltage Rating: 600V AC, 300V DC
- Fuse Class: RK5
- Time Delay: Yes
- Mounting Type: Clip
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 300VDC
- Dual Element with Indicator
- Current Limiting
- Physical Size: 1 1/16" diameter x 5 1/2" length
- Rejection Style Design
- Certifications: UL 248-12, CSA C22.2
- Part Number: TRS50RID
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
- UPC : 782001415129
- GTIN : 00782001415129
- Weight : 0.15
Specifications
