Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

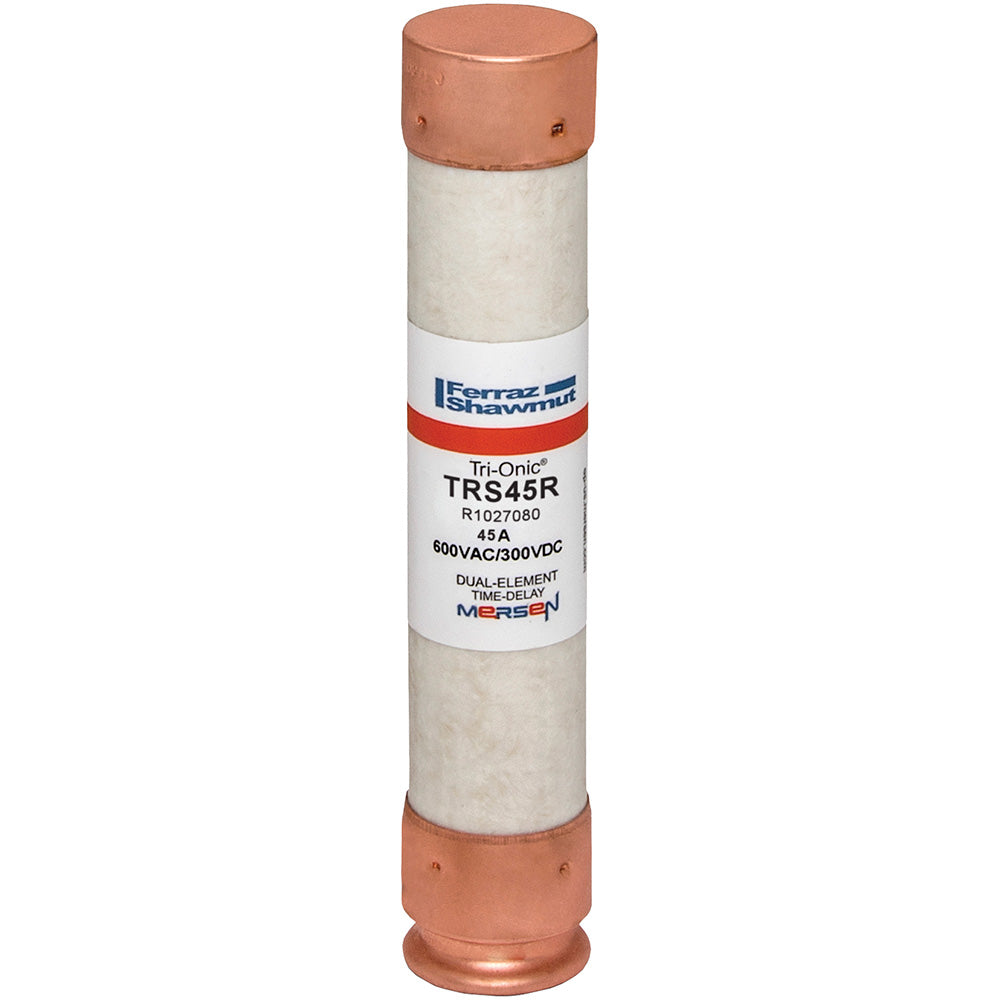

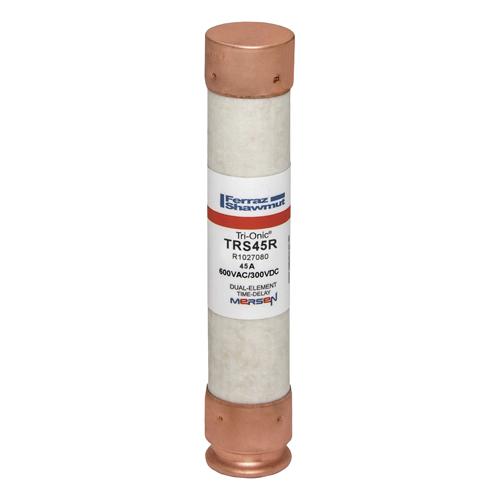

TRS45R
TRS45R is a Class RK5 time-delay fuse from Mersen designed for reliable overcurrent protection in motor and transformer circuits.This fuse features a 45 amp rating with voltage ratings of 600VAC and 300VDC. It has a dual-element design providing time-delay characteristics to safely handle motor starting and inrush currents. The TRS45R offers a high interrupt rating of 200kA AC and 20kA DC, ensuring robust current limitation and arc quenching. It is UL listed and CSA certified for industrial applications, with a fiberglass body for durability and a rejection-style design to prevent replacement errors.
- Amperage: 45A
- Voltage Rating: 600VAC, 300VDC
- Fuse Type: Time-Delay (Dual Element)
- Interrupt Rating: 200kA AC, 20kA DC
- Class: RK5
- Mounting Type: Rejection Style
- Body Material: Fiberglass
- Approvals: UL Listed, CSA Certified
- Application: Motor circuits, transformers, feeders, branch circuits
- High-grade silica filler for fast arc quenching
- Metal-embossed date and catalog number for traceability
Specifications
- Part Number: TRS45R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 45
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001749026
- GTIN : 00782001749026
- Weight : 25
