Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS400RID

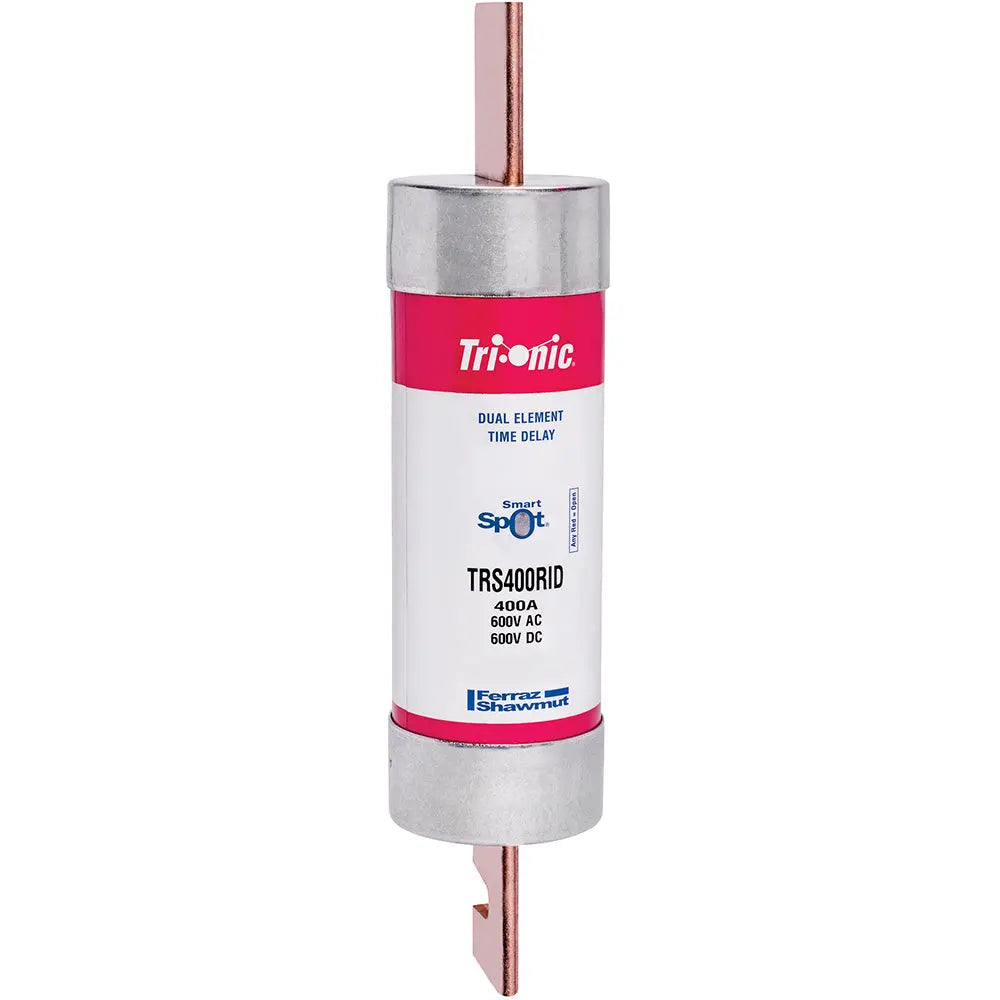

TRS400RID is a 400 Amp, 600 Volt AC/DC Class RK5 time delay fuse with indicator from Ferraz Shawmut.TRS400RID features a dual element design for time delay and current limiting, suitable for residential, commercial, and industrial applications. It has a clip mounting type, UL and CSA approvals, and a high interrupting rating of 200kA at 600VAC and 20kA at 600VDC. The fuse is designed with a rejection style to prevent replacement errors and measures approximately 2 9/16" diameter by 11 5/8" length.
- Key Specifications
- Amperage: 400A
- Voltage: 600V AC/DC
- Fuse Class: RK5
- Time Delay: Dual Element
- Indicator: Yes
- Mounting Type: Clip
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 600VDC
- Approvals: UL, CSA
- Physical Size: 2 9/16" diameter x 11 5/8" length
- Current Limiting: Yes
- Rejection Style Design: Prevents replacement errors
Specifications
- Part Number: TRS400RID
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78200141527
- GTIN : 00782001415273
- Weight : 3
- Certification : UL, CSA
