Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

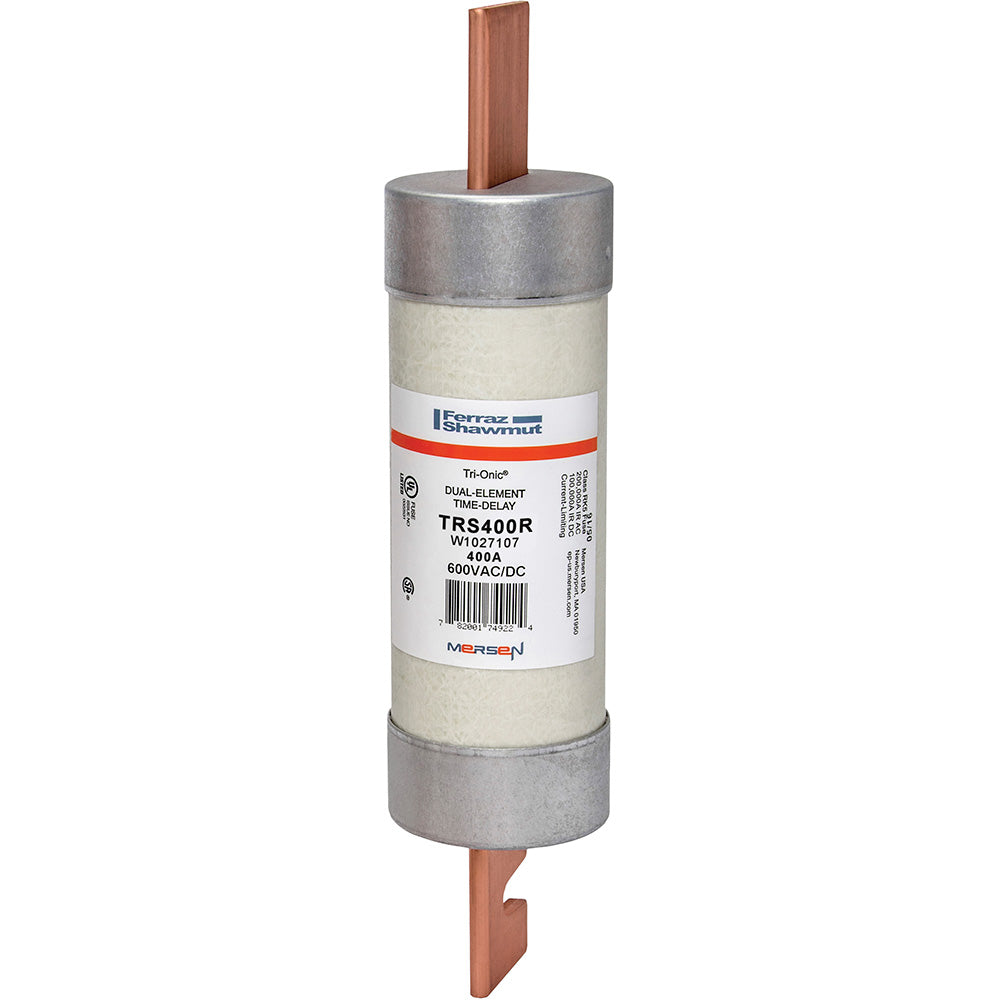

TRS400R
TRS400R is a Mersen Class RK5 time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a current-limiting design and is rated for both AC and DC voltages, making it suitable for a wide range of equipment. The TRS400R fuse is constructed with a rejection-style body to prevent incorrect replacements and includes a durable fiberglass housing for dimensional stability. It is commonly used in motor circuits, mains, feeders, branch circuits, transformers, and service entrance equipment. The fuse is UL listed to standard 248-12 and CSA certified to standard C22.2 No. 248.12.
- Part Number: TRS400R
- Manufacturer: Mersen
- Amperage Rating: 400A
- Voltage Rating: 600VAC / 600VDC
- Fuse Class: Class RK5
- Speed/Characteristic: Time Delay
- Interrupting Rating: 200kA AC / 100kA DC
- Mounting Type: Clip
- Physical Size: 2 9/16" x 11 5/8"
- Series: TRS-R
- Approvals: UL 248-12, CSA C22.2 No. 248.12
- Application: Motor circuits, mains, feeders, transformers, service entrance
Specifications
- Part Number: TRS400R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001749255
- GTIN : 00782001749255
- Weight : 3
