Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS30RID

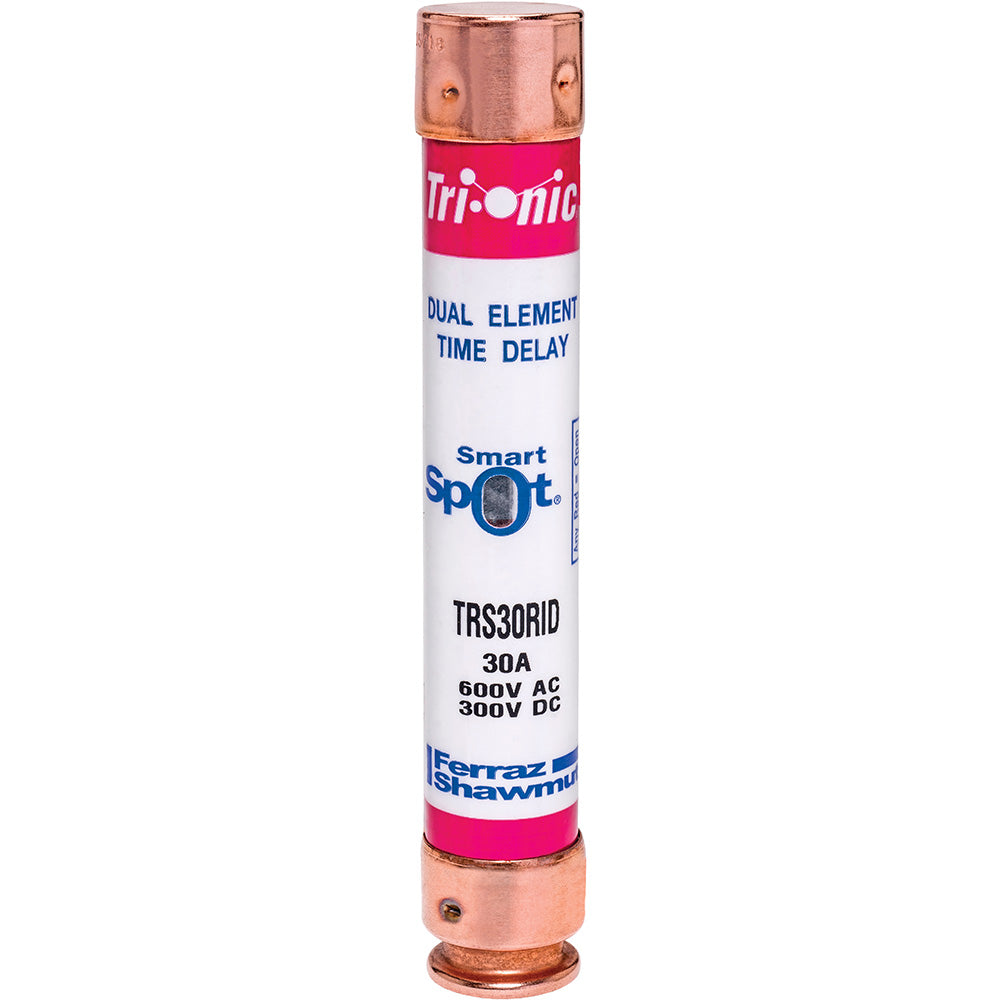

TRS30RID is a 30A, 600VAC Class RK5 time delay fuse designed for reliable overcurrent protection in industrial and commercial applications. This cartridge fuse features current-limiting technology and blown fuse indication for enhanced safety and performance. Suitable for use in motor circuits, transformers, and service entrance equipment, the TRS30RID offers robust protection with a compact design. The TRS30RID fuse is engineered for clip mounting and provides a 200 kA interrupt rating at 600VAC. It meets UL 248-12 and CSA C22.2 standards, ensuring compliance with North American safety requirements. The fuse is rated for both AC and DC systems, with a 300VDC rating, and is part of the Tri-Onic TRS-R series for dependable performance in demanding environments.
- Part Number: TRS30RID
- Manufacturer: Ferraz Shawmut
- Amperage: 30A
- Voltage: 600VAC, 300VDC
- Fuse Class: Class RK5
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA
- Mounting Type: Clip
- Series/Frame: Tri-Onic TRS-R
- Certifications: UL 248-12, CSA C22.2
- Diameter: 13/16 inch
- Length: 5 inch
Specifications
- Part Number: TRS30RID
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78200141508
- GTIN : 00782001415082
- Weight : 0.2
