2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

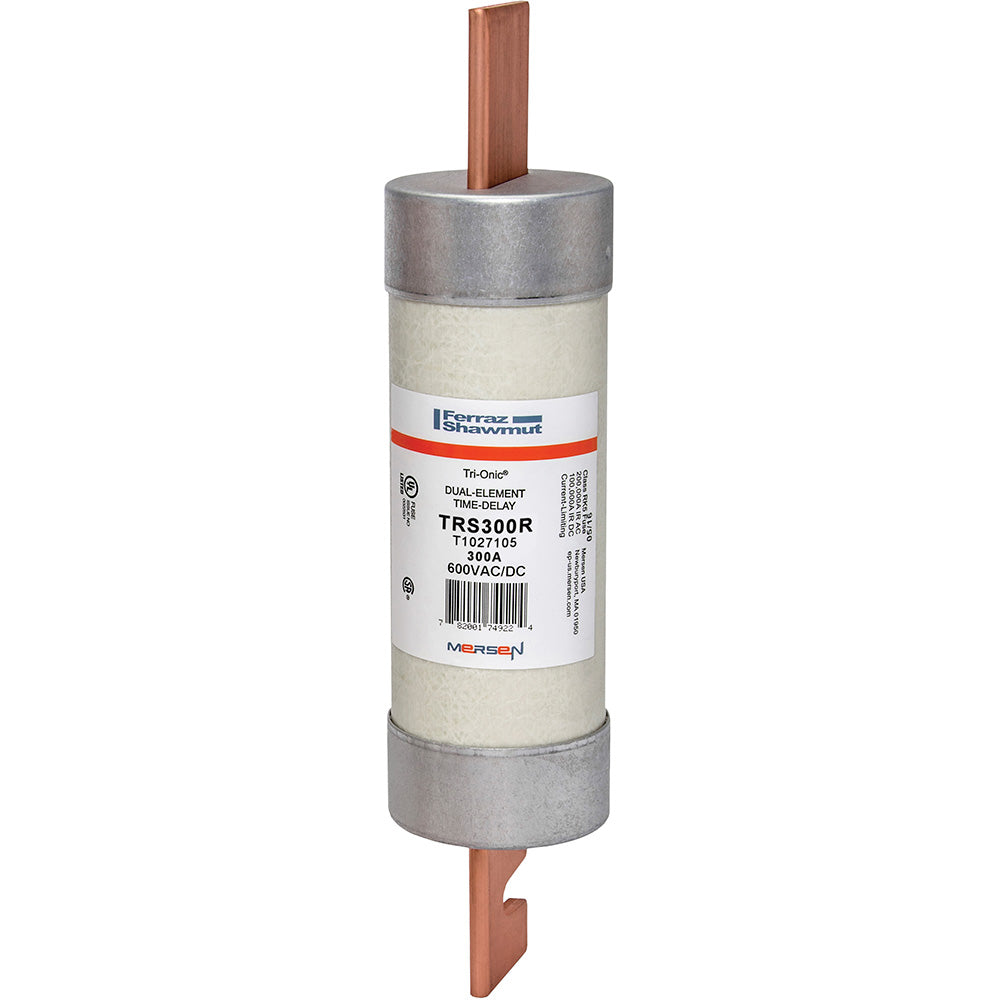

TRS300R
TRS300R is a Mersen Tri-Onic Class RK5 time-delay, current-limiting fuse designed for reliable overcurrent protection in demanding electrical applications.
This fuse features a rejection-style blade design for secure mounting, high interrupting capacity, and a time-delay characteristic to handle inrush currents from motors and transformers. Its robust construction includes a fiberglass body for dimensional stability and a high-grade silica filler for fast arc quenching. The TRS300R is UL listed and CSA certified for safety and compliance.
-
Key Specifications
- Part Number: TRS300R
- Manufacturer: Mersen
- Amperage: 300A
- Voltage: 600VAC, 600VDC
- Poles: 1
- Mounting Type: Blade (Clip)
- Interrupt Rating: 200kA AC, 100kA DC (70-600A)
- Series/Frame: Tri-Onic TRS-R
- Trip Unit: Time-Delay (Class RK5)
- Certifications: UL Listed (File E2137), CSA Certified (C22.2 No. 248.12), DC Listed (UL 248, TRS only)
- Body Type: Cylindrical
- Applications: Motor circuits, mains, feeders, branch circuits, transformers, service entrance, general-purpose equipment
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TRS300R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001749231
- GTIN : 00782001749231
- Weight : 3
