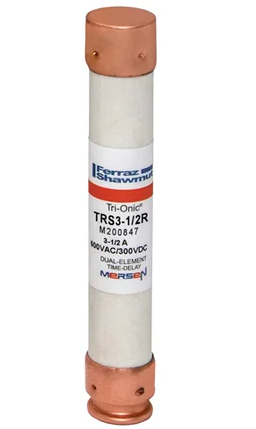

TRS3-1/2R - Ferraz Shawmut 3.5A 600V AC/DC Class RK5 Time Delay Fuse

TRS3-1/2R

TRS3-1/2R is a Ferraz Shawmut Class RK5 time delay fuse rated for 3.5 amps and 600 volts AC/DC.This fuse features a dual element, current limiting design with a 200,000 AIC interrupt rating at 600VAC and 20,000 AIC at 600VDC. It has a physical size of 13/16" diameter by 5" length and includes a rejection style design to prevent replacement errors. The fuse is UL and CSA certified and suitable for both AC and DC applications.

• Amperage: 3.5 Amps
• Voltage Rating: 600 VAC / 600 VDC
• Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 600VDC
• Fuse Class: RK5
• Time Delay, Dual Element
• Physical Size: 13/16" x 5"
• Current Limiting
• Rejection Style Design
• Mounting Type: Clip
• Certifications: UL 248-12, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TRS3-1/2R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TRS
• Voltage : 600
• Amperage : 3
• AIC rating : 200kA@600V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782001748708
• GTIN : 00782001748708
• Weight : 0.2
