Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

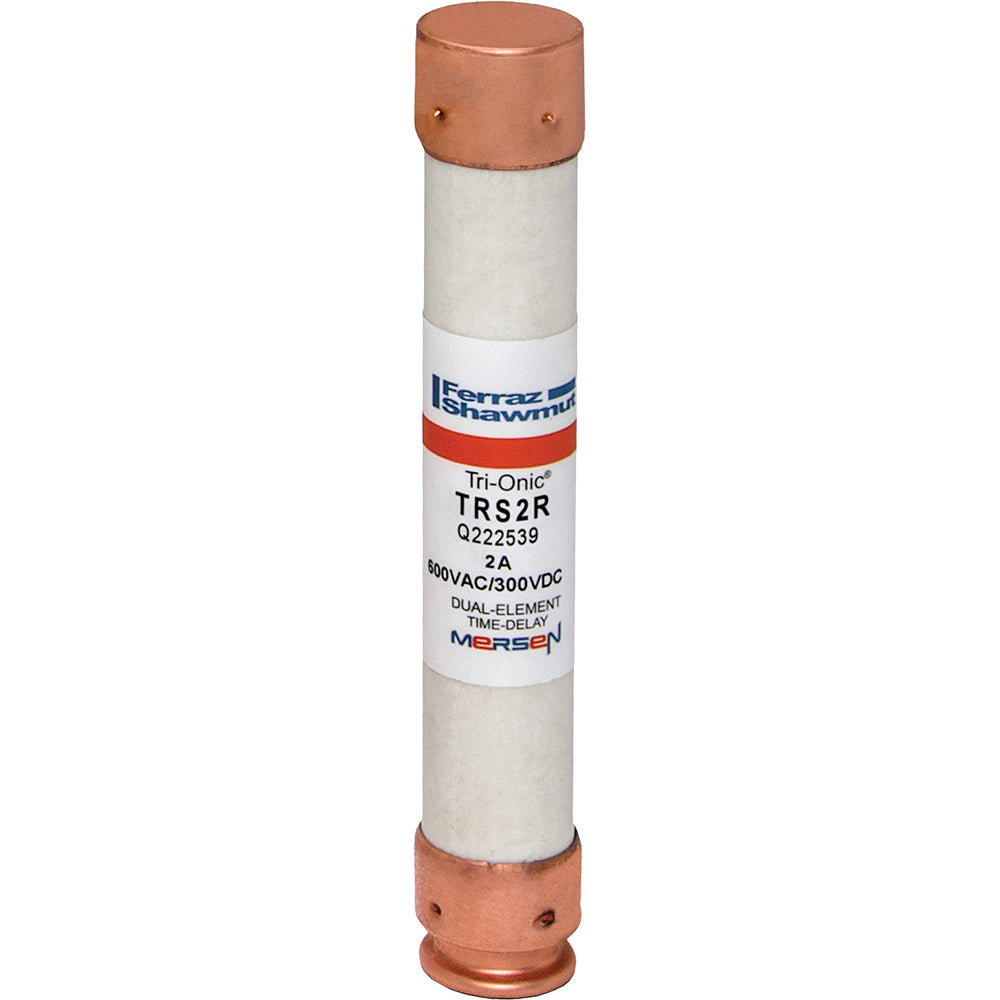

TRS2R
TRS2R is a 2 Amp, 600 Volt AC/DC Class RK5 time delay fuse from Mersen designed for reliable circuit protection.This dual element, current-limiting fuse features a 13/16" x 5" size with a rejection-style design to prevent replacement errors. It has a 200,000 AIC interrupting rating at 600VAC and 20,000 AIC at 600VDC, suitable for motor circuits, feeders, branch circuits, and general-purpose equipment. The fuse is UL listed to standard 248-12 and CSA certified, with a clip mounting type for easy installation.
- Amperage: 2 Amps
- Voltage Rating: 600V AC/DC
- Class: RK5
- Time Delay: Yes, dual element
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 600VDC
- Size: 13/16" diameter x 5" length
- Mounting Type: Clip
- Rejection Style Design to prevent replacement errors
- UL Listed (UL 248-12)
- CSA Certified (C22.2 No. 248.12)
Specifications
- Part Number: TRS2R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748647
- GTIN : 00782001748647
- Weight : 0.08
