Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

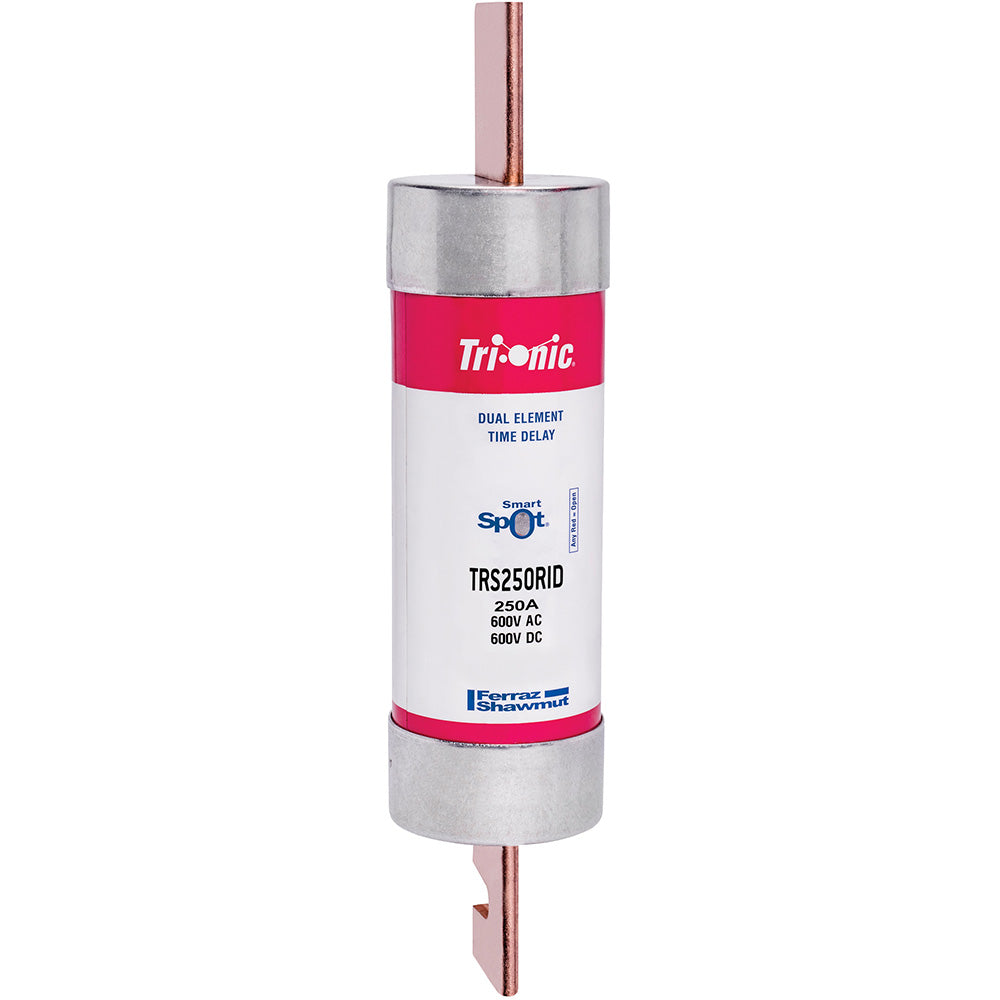

TRS250RID
TRS250RID is a 250 amp, 600 volt AC/DC time delay fuse from Eaton's TRS-R series designed for reliable circuit protection.TRS250RID features a dual element, current limiting design with an indicating feature and rejection style to prevent replacement errors. It is UL Class RK5 rated with a 200,000 AIC interrupt rating at 600VAC and 100,000 AIC at 600VDC, suitable for branch circuit protection in industrial and commercial applications.
- Key Specifications
- Amperage: 250A
- Voltage Rating: 600V AC/DC
- Fuse Type: UL Class RK5
- Fuse Speed: Time Delay
- Interrupt Rating: 200,000 AIC @ 600VAC, 100,000 AIC @ 600VDC
- Series/Frame: TRS-R Series
- Dual Element Current Limiting
- Indicating Fuse
- Rejection Style Design
- Physical Size: 2 9/16" diameter x 11 5/8" length
- Mounting Type: Cartridge Fuse
- Certifications: UL Listed
Specifications
- Part Number: TRS250RID
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78200141524
- GTIN : 00782001415242
- Weight : 3
