Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS250R

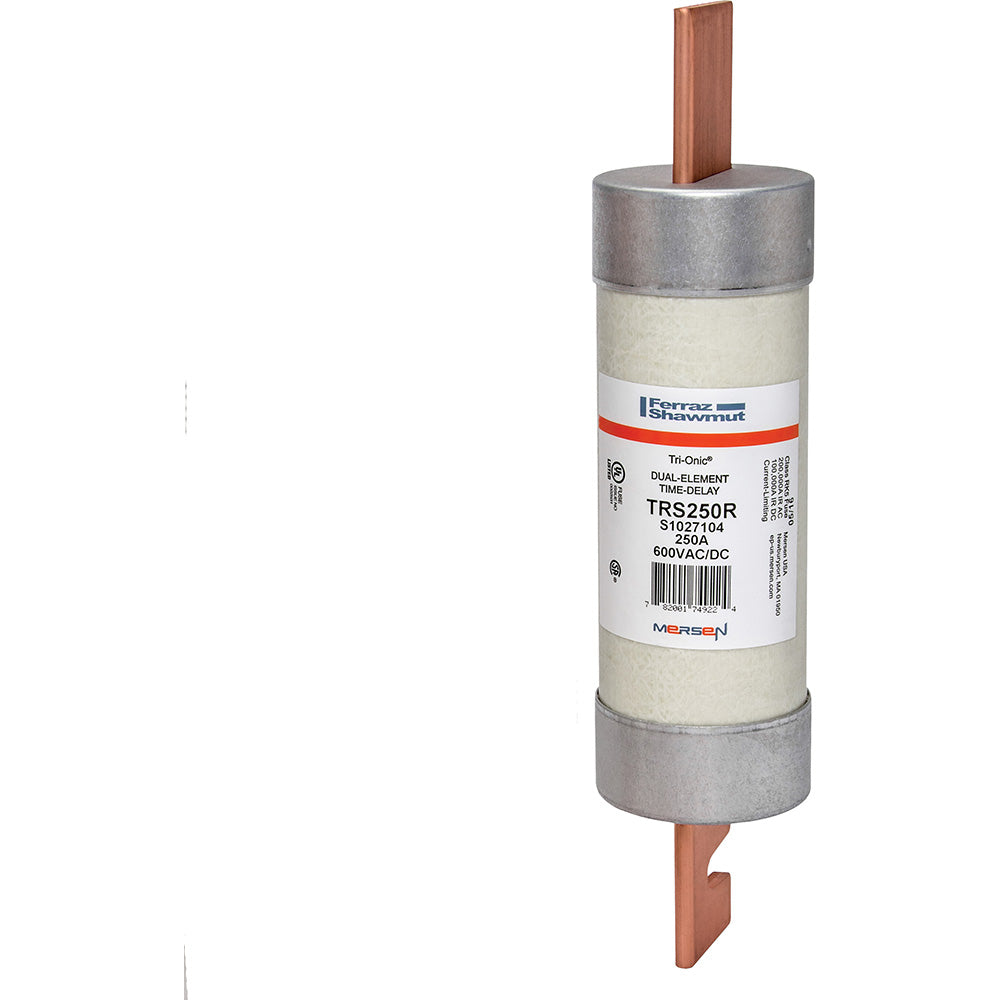

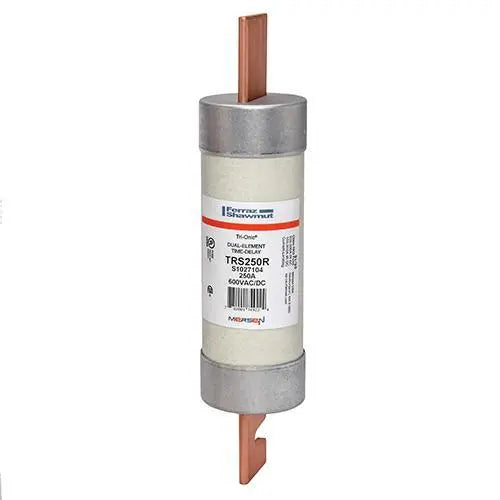

TRS250R is a Ferraz Shawmut 250 Amp, 600 Volt Class RK5 time delay fuse designed for reliable circuit protection.This fuse features a cylindrical body with a 2.56 inch diameter and 11.63 inch length, providing current limiting and dual element time delay characteristics. It is rated for both AC and DC use up to 600 volts, with an interrupting rating of 200,000 AIC at 600 VAC and 100,000 AIC at 600 VDC. The fuse uses blade terminals with tin-plated copper connections and mounts via clip. It is ROHS compliant and UL 248-12 and CSA C22.2 certified.
- Amperage: 250 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK5
- Speed/Characteristic: Time Delay (Dual Element)
- Interrupt Rating: 200 kA AC, 100 kA DC
- Mounting Type: Clip
- Body Diameter: 2.56 in
- Overall Length: 11.63 in
- Terminal Type: Blade, Tin-Plated Copper
- Certifications: UL 248-12, CSA C22.2, ROHS Compliant
- Fuse Body: Cylindrical
Specifications
- Part Number: TRS250R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001749224
- GTIN : 00782001749224
- Weight : 3
