Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

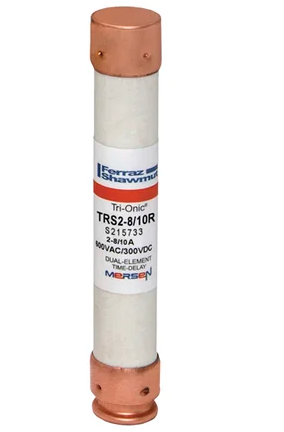

TRS2-8/10R
TRS2-8/10R is a Ferraz Shawmut time delay fuse designed for reliable overcurrent protection in motor circuits and transformers.This fuse features a 2.8 ampere rating with a voltage capacity of 600 volts AC/DC. It is a Class RK5 current limiting fuse with a time delay characteristic to handle motor start-up and transformer inrush currents without nuisance blowing. The fuse has a cylindrical body with a physical size of approximately 13/16" diameter by 5" length and an interrupt rating of 200kA at 600 volts. It includes a rejection-style design to prevent replacement errors and is UL and CSA listed.
- Key Specifications
- Amperage: 2.8 A
- Voltage Rating: 600 VAC / 600 VDC
- Interrupt Rating: 200 kA
- Fuse Class: RK5
- Fuse Type: Time Delay, Current Limiting
- Body Style: Cylindrical
- Physical Size: 13/16" diameter x 5" length
- Rejection Style Design
- UL and CSA Listed
- Mounting Type: Fuse block compatible
- Part Number: TRS2-8/10R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- UPC : 782001748678
- GTIN : 00782001748678
- Weight : 0.2
