Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

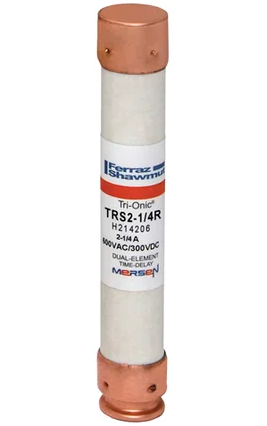

TRS2-1/4R
TRS2-1/4R is a Ferraz Shawmut Class RK5 time delay fuse designed for motor and transformer overcurrent protection.This cylindrical fuse features a 2.25 ampere rating, 600 volts AC/DC voltage rating, and a 200kA interrupt rating. It has a 5 inch overall length and 0.81 inch diameter, with a dual element time delay design for current limiting and reliable protection. The fuse is UL 248-12 and CSA C22.2 certified and includes a visual open fuse indicator.
- Key Specifications
- Amperage: 2.25 A
- Voltage: 600 V AC/DC
- Fuse Class: RK5
- Fuse Timing: Time Delay
- Fuse Body Type: Cylindrical
- Overall Length: 5 inches (127 mm)
- Diameter: 0.81 inches (13/16 inch)
- Interrupt Rating: 200,000 A
- Certifications: UL 248-12, CSA C22.2
- Current Limiting: Yes
- Visual Open Fuse Indicator: Yes
Specifications
- Part Number: TRS2-1/4R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748654
- GTIN : 00782001748654
- Weight : 0.2
