Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

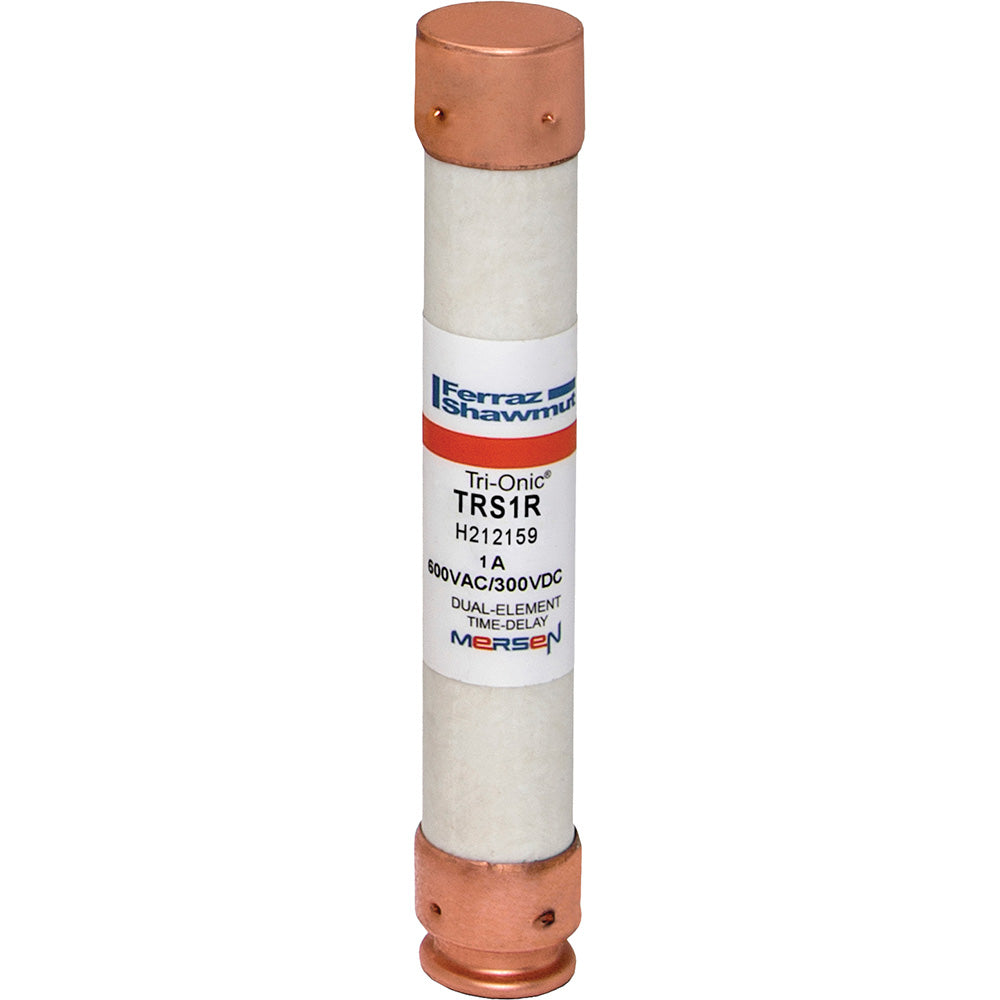

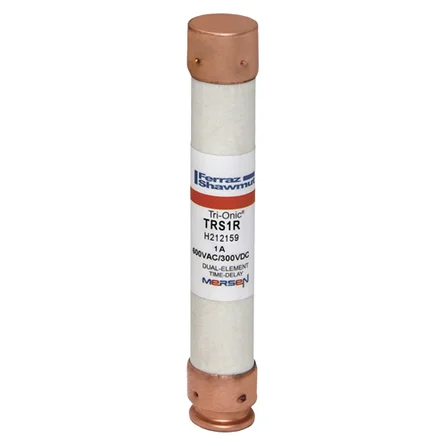

TRS1R
TRS1R is a Mersen 1 Amp, 600 Volt AC/DC time-delay current-limiting fuse designed for reliable circuit protection.This Class RK5 fuse features a rejection-style design to prevent replacement errors when used with recommended fuse blocks. It has a fiberglass body with silica filler for fast arc quenching and high current limitation. The fuse is rated for 200kA interrupt rating at 600V AC and 20kA at 600V DC. It is UL listed to standard 248-12 and CSA certified to C22.2 No. 248.12. Ideal for motor circuits, mains, feeders, branch circuits, transformers, and service entrance equipment.
- Amperage: 1 Amp
- Voltage: 600 Volt AC / 600 Volt DC
- Interrupt Rating: 200kA AC / 20kA DC
- Fuse Type: Time-Delay, Current-Limiting
- Class: RK5
- Mounting Type: Clip
- Dimensions: 13/16 inch diameter x 5 inch length
- Body: Fiberglass with silica filler
- UL Listed: UL 248-12 File E2137
- CSA Certified: C22.2 No. 248.12
- Application: Motor circuits, feeders, transformers, service entrance
Specifications
- Part Number: TRS1R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS-R Series
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748586
- GTIN : 00782001748586
- Weight : 0.2
