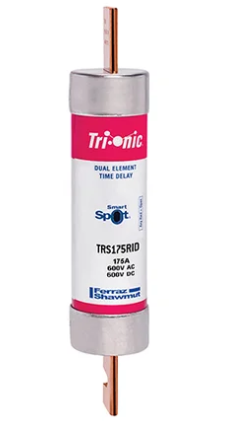

TRS175RID - Ferraz Shawmut 175A 600V AC/DC Time Delay Class RK5 Fuse with Blown Fuse Indicator

TRS175RID

TRS175RID is a 175 amp, 600 volt AC/DC time delay Class RK5 fuse from Ferraz Shawmut designed for reliable circuit protection with blown fuse indication.This fuse features a time-delay characteristic suitable for motor start-ups and transformer inrush currents. It is current limiting and rated for both AC and DC applications up to 600 VAC and 600 VDC. The fuse includes an optional SmartSpot blown fuse indicator for visual open fuse detection. It meets UL and CSA certifications and has a high interrupt rating of 200 kA at 600 VAC and 20 kA at 250 VDC.

Key Specifications
• Amperage: 175 A
• Voltage Rating: 600 VAC / 600 VDC
• Fuse Class: RK5
• Time Delay: Yes
• Current Limiting: Yes
• Blown Fuse Indicator: Optional SmartSpot
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 250 VDC
• Certifications: UL, CSA
• Mounting Type: Cartridge/Blade style
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TRS175RID
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TRS
• Voltage : 600
• Amperage : 175
• AIC rating : 200kA@600V
• Diameter : 1.56
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 782001415211
• Weight : 1
