2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

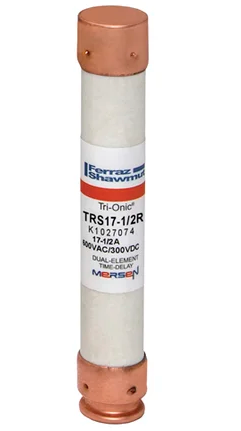

TRS17-1/2R
TRS17-1/2R is a Ferraz Shawmut time delay fuse designed for motor circuit and general purpose protection.This fuse features a 17.5 amp rating with 600 VAC and 300 VDC voltage ratings. It is a Class RK5, current limiting fuse with a fiberglass cylindrical body and clip mounting type. The fuse has a rejection style design to prevent replacement errors and an interrupt rating of 200 kA at AC and 20 kA at DC. It is UL 248-12, UL Listed, and CSA C22.2 No. 248.12 certified.
- Key Specifications
- Amperage: 17.5 A
- Voltage: 600 VAC / 300 VDC
- Fuse Class: RK5
- Fuse Timing: Time Delay
- Mounting Type: Clip Mount
- Interrupt Rating: 200 kA AC / 20 kA DC
- Fuse Body: Fiberglass Cylindrical
- Overall Length: 127 mm (5 in)
- Diameter: 20.7 mm (13/16 in)
- Rejection Style: Yes
- Certifications: UL 248-12, CSA C22.2 No. 248.12
- Series: TRS
Specifications
- Part Number: TRS17-1/2R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 17
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748838
- GTIN : 00782001748838
- Weight : 0.2
