Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS125RID

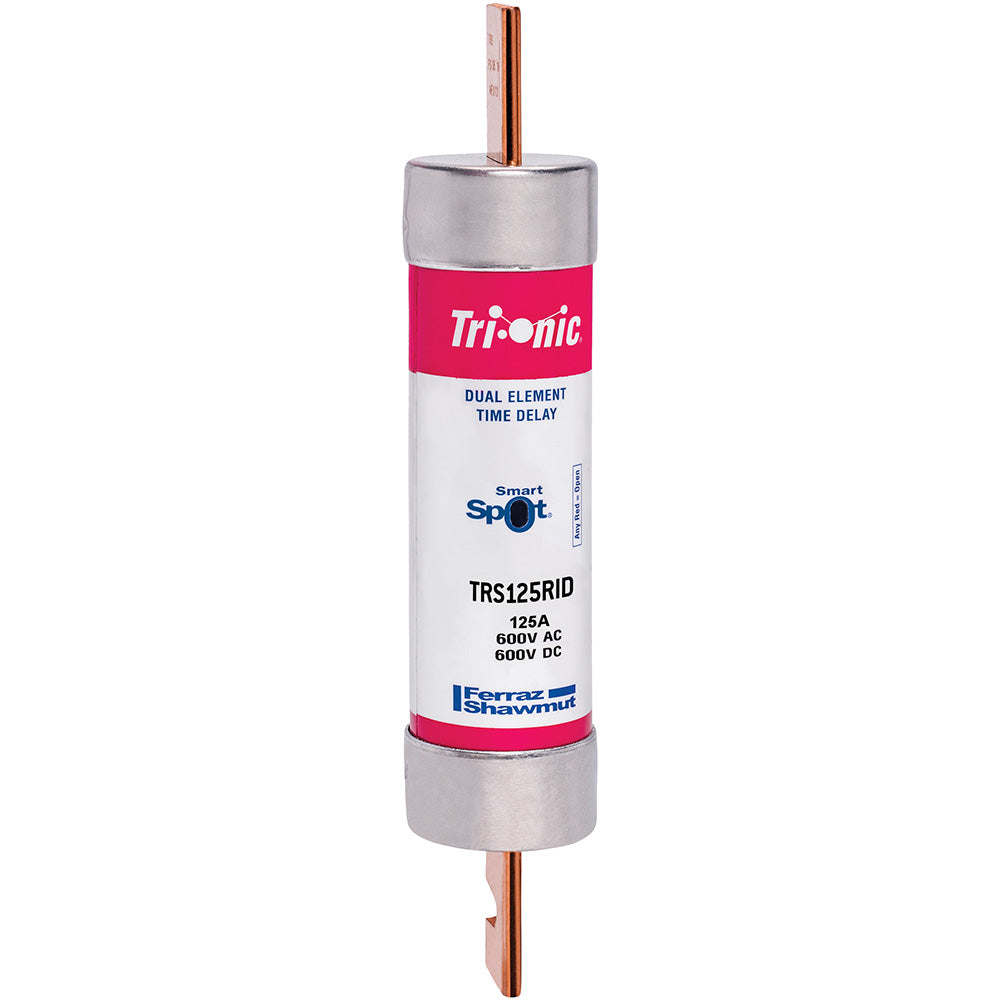

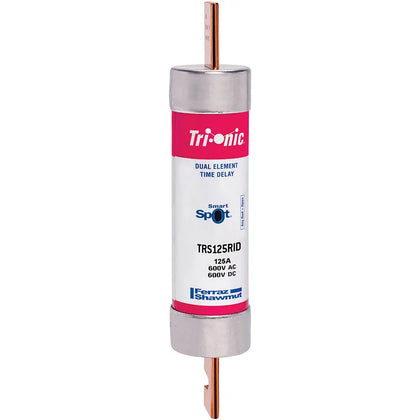

TRS125RID is a Ferraz Shawmut Class RK5 time delay fuse rated for 125 amps and 600 volts AC/DC with a blown fuse indicator.
This fuse features a dual element, current limiting design with a time delay suitable for motor start-ups and transformer inrush currents. It has a physical size of 1-13/16 inches diameter by 9-5/8 inches length and includes a rejection style design to prevent replacement errors. The fuse is UL and CSA approved with an interrupting rating of 200,000 AIC at 600 VAC and 100,000 AIC at 600 VDC.
- Key Specifications
- Amperage: 125A
- Voltage Rating: 600V AC/DC
- Fuse Class: RK5
- Time Delay: Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 100,000 AIC @ 600 VDC
- Physical Size: 1-13/16" diameter x 9-5/8" length
- Mounting Type: Fuse Block Style Rejection
- Indicator: Blown Fuse Indicator (Smart-Spot)
- Certifications: UL 248-12, CSA C22.2
- Current Limiting: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TRS125RID
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 1.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78200141519
- GTIN : 00782001415198
- Weight : 1
- Certification : UL, CSA
