Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
TRS100

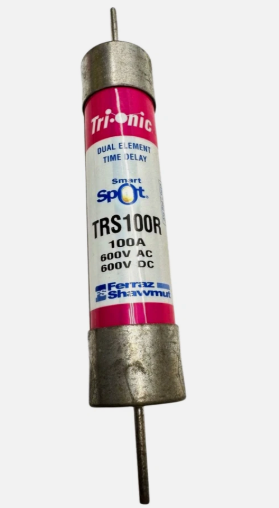

TRS100 is a Class RK5 time-delay fuse designed for reliable overcurrent protection in motor and transformer circuits. This 100A, 600VAC/600VDC fuse features a clip mount design and is suitable for both AC and DC applications. The Tri-Onic® series provides current-limiting performance and a rejection style design to prevent replacement errors. Engineered for durability and safety, the TRS100 fuse is constructed with a fiberglass body and tin-plated copper terminals. It offers a 200,000 AIC interrupting rating at 600VAC and is UL and CSA listed for use in a wide range of industrial and commercial power distribution systems.
- Part Number: TRS100
- Manufacturer: Ferraz Shawmut / Mersen
- Amperage: 100A
- Voltage: 600VAC / 600VDC
- Fuse Class: Class RK5
- Mounting Type: Clip
- Interrupt Rating: 200,000 AIC @ 600VAC
- Series: Tri-Onic®
- Speed: Time Delay
- Body Material: Fiberglass
- Terminal Type: Blade
- Certifications: UL, CSA
Specifications
- Part Number: TRS100
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Tri-Onic
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 1.56
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 25
