Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS1-6/10R

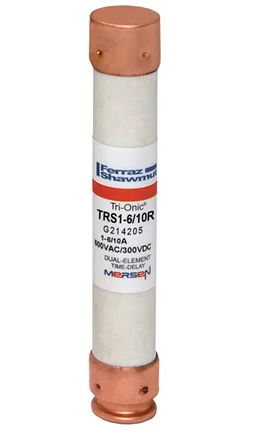

TRS1-6/10R is a Ferraz Shawmut Class RK5 time delay fuse rated for 1.6 amps and 600 volts AC/DC.This fuse features dual element construction with current limiting and a rejection style design to prevent replacement errors. It is rated for 200,000 AIC interrupting capacity at 600VAC and 20,000 AIC at 600VDC. The fuse measures 13/16 inch in diameter and 5 inches in length, suitable for low voltage applications requiring reliable time delay protection.
- Key Specifications
- Amperage: 1.6 Amps
- Voltage Rating: 600 Volts AC/DC
- Fuse Class: RK5
- Speed Type: Time Delay
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 600VDC
- Dual Element Construction
- Physical Size: 13/16" diameter x 5" length
- Current Limiting
- Rejection Style Mounting
- Non-Indicating
- Series: TRS-R
- Country of Origin: Mexico
Specifications
- Part Number: TRS1-6/10R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782001748623
- GTIN : 00782001748623
- Weight : 0.2
