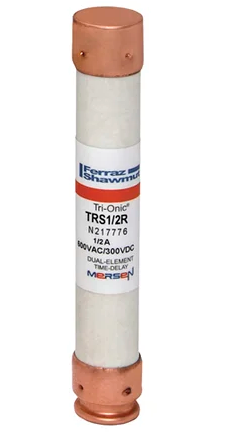

TRS1/2R - Ferraz Shawmut 1/2 Amp 600V AC Class RK5 Time Delay Fuse

TRS1/2R

TRS1/2R is a Ferraz Shawmut Class RK5 time delay fuse rated for 1/2 amp and 600 volts AC, designed for reliable motor and transformer protection.This fuse features a dual element, current limiting design with a time delay characteristic to handle motor start-ups and transformer inrush currents without nuisance openings. It has a physical size of 13/16" diameter by 5" length, is AC and DC rated at 600 volts, and has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 600 VDC. The rejection style design prevents replacement errors when used with recommended fuse blocks.

Key Specifications
• Amperage: 1/2 Amp
• Voltage Rating: 600 VAC / 600 VDC
• Fuse Class: RK5
• Fuse Type: Time Delay, Dual Element
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 600 VDC
• Physical Size: 13/16" diameter x 5" length
• Current Limiting
• Rejection Style Design
• Approvals: UL 248-12, CSA C22.2
• Mounting: Recommended for use with compatible fuse blocks

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TRS1/2R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Tri-Onic
• Type : TRS
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782001748555
• GTIN : 00782001748555
• Weight : 0.2
