Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRS1-1/4R

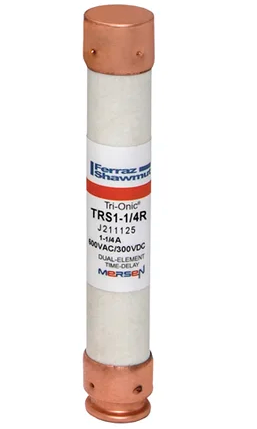

TRS1-1/4R is a Ferraz Shawmut Class RK5 time delay fuse rated for 1.25 amperes and 600 volts AC/DC.
This fuse features a 200 kiloamp interrupting rating (AIC), dual element time delay characteristic for motor start-ups and transformer inrush currents, and a rejection style design to prevent misapplication. It measures approximately 13/16 inch in diameter and 5 inches in length, suitable for use in Class RK5 fuse blocks. The fuse is UL 248-12 and CSA C22.2 certified, ensuring compliance with safety standards.
- Key Specifications
- Amperage: 1.25 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK5
- Interrupting Rating: 200 kA AC
- Speed/Characteristic: Time Delay
- Dimensions: 13/16 inch diameter x 5 inch length
- Dual Element for current limiting
- Rejection style design
- UL 248-12 and CSA C22.2 certified
- Suitable for motor start-up and transformer inrush currents
- Part Number: TRS1-1/4R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRS
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- UPC : 782001748609
- GTIN : 00782001748609
- Weight : 0.2
