TRNP24AD - Eaton 10A 24V AC/DC 2-Pole Time Delay Relay Plug-In Mount

TRNP24AD

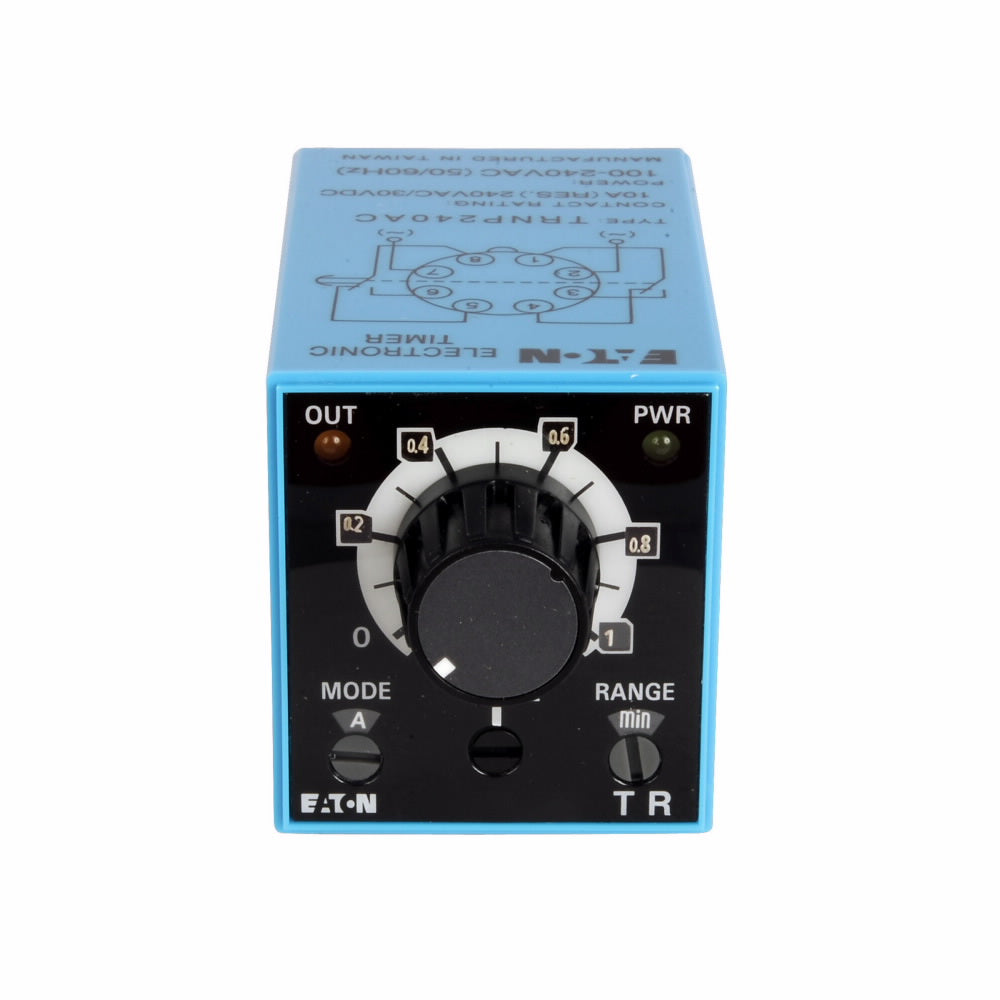

TRNP24AD is an Eaton 2-pole time delay relay with a 24V AC/DC coil and 10 amp load rating designed for plug-in mounting.This Eaton TR Series timing relay features an adjustable time delay from 0.1 seconds to 600 hours, 2 Form C (DPDT) contacts, and pin/octal style terminals. It supports a maximum load of 10A at 240V AC or 30V DC. The relay is power triggered and suitable for control panel door mounting. It is cULus Listed, CSA Certified, and compliant with TUV standards.

Key Specifications
• Amperage: 10 A
• Coil Voltage: 24 V AC/DC
• Poles: 2
• Contact Type: DPDT (2 Form C)
• Mounting Type: Plug-In
• Time Delay Range: 0.1 seconds to 600 hours
• Maximum Load Voltage: 240 V AC / 30 V DC
• Terminals: 8 Pin/Octal
• Certifications: cULus Listed, CSA Certified, TUV Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TRNP24AD
• Manufacturer : Eaton
• Brand : Eaton



Product Data

• UPC : 782116149865
• GTIN : 00782116000000
• Country of Origin : United States
• Dimensions : 3.07 in x 1.58 in x 1.42 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : CE Certified, CSA Certified, cULus Listed, TUV Certified
