Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
TRM9

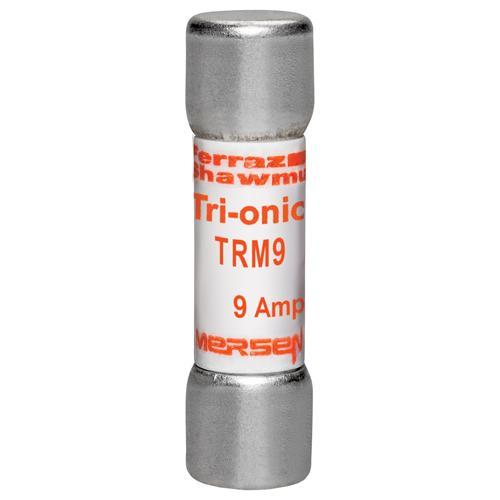

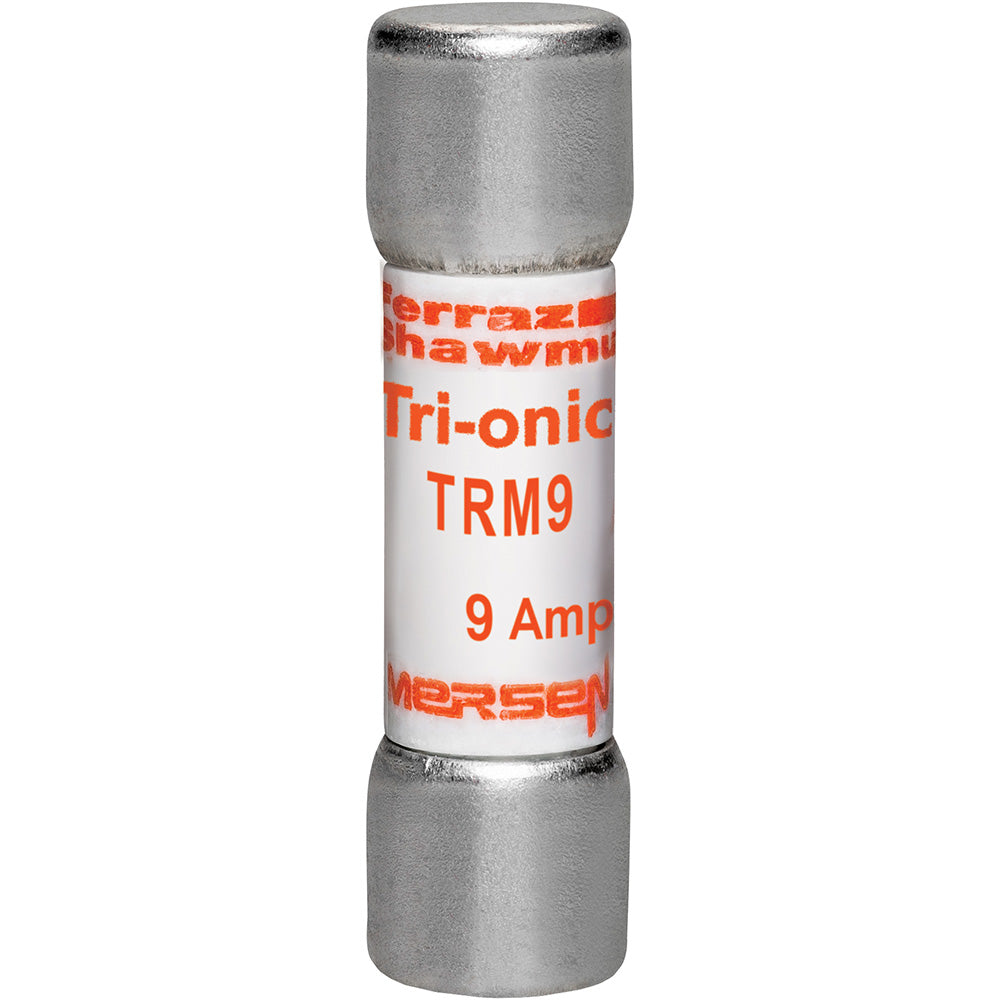

TRM9 is a Mersen Tri-Onic time-delay midget fuse designed for low voltage applications.
This 1-barrel, ferrule-terminal fuse features a 9A current rating, 250V AC voltage rating, and a 10kA interrupting capacity. It is UL listed and CSA certified, with a 12-second time-delay characteristic at 200% rated load, making it suitable for circuits requiring inrush tolerance. The compact, cylindrical design is easy to install in standard midget fuse clips.
Key Specifications
- Amperage: 9A
- Voltage: 250V AC
- Poles: 1
- Mounting Type: Clip (ferrule terminal)
- Interrupt Rating: 10kA @ 250V AC
- Series/Frame: TRM (Tri-Onic Midget)
- Trip Unit: Time Delay (12 sec at 200% rated load)
- Certifications: UL 248-14, CSA C22.2 No. 248.14
- Terminal Type: Ferrule
- Body Material: GMG
- Dimensions: 0.41" dia x 1.5" L
- ROHS Compliant: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TRM9
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 9
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001746551
- GTIN : 00782001746551
- Weight : 0.01
