Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

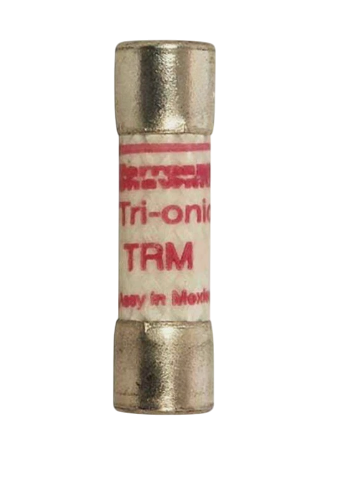

TRM6-1/4
TRM6-1/4 is a 6.25 amp, 250 volt AC time delay midget fuse from Ferraz Shawmut Mersen designed for supplemental protection of small motors and transformers.This Tri-Onic TRM series fuse features a 12-second time delay at 200% rating, suitable for circuits with high inrush currents. It has a 1.5 inch length and 0.41 inch diameter, with a 10,000 amp interrupt rating. The fuse is UL 248-14 and CSA C22.2 approved, ensuring compliance with safety standards.
- Key Specifications
- Amperage: 6.25A
- Voltage Rating: 250VAC
- Fuse Type: Time Delay Midget
- Length: 1.5 inches
- Diameter: 0.41 inches
- Interrupt Rating: 10,000 Amps AC
- Approvals: UL 248-14, CSA C22.2
- Series: Tri-Onic TRM
- Application: Supplemental protection for small motors and transformers
- Mounting Type: Fuseholder compatible
Specifications
- Part Number: TRM6-1/4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 6
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001746490
- GTIN : 00782001746490
- Weight : 0.01
