Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TRM3-2/10

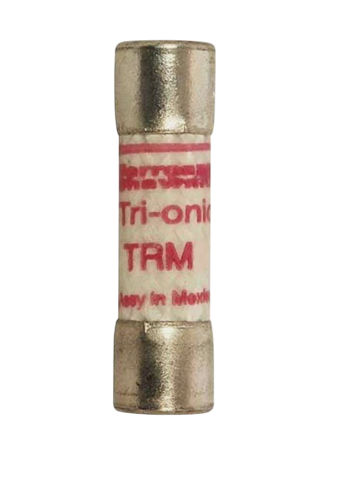

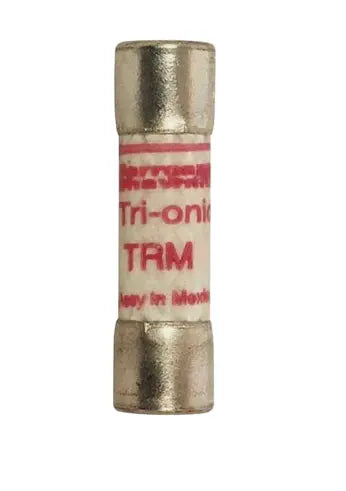

TRM3-2/10 is a low voltage time delay midget fuse from Ferraz Shawmut (Mersen), designed for supplemental protection of circuits with high inrush current such as small motors and transformers.
This cylindrical, single-pole fuse features a 12-second time delay at 200% rating, making it ideal for control circuits, lighting, and similar applications where temporary overloads are expected. It is not intended for branch circuit protection. The fuse is UL Listed and CSA Certified, ensuring compliance with industry standards for safety and performance.
-
Key Specifications
- Amperage: 3.2A
- Voltage: 250VAC
- Poles: 1
- Mounting Type: Cylindrical (Midget Class)
- Interrupt Rating: 10,000A @ 250VAC
- Series/Frame: TRM (Tri-Onic)
- Trip Unit: Time Delay (12 sec at 200% rating)
- Certifications: UL 248-14, CSA C22.2 No. 248.14
- Physical Size: 13/32" x 1 1/2"
- Applications: Small motors, small transformers, control circuits, lighting
- Not for branch circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TRM3-2/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Tri-Onic
- Type : TRM
- Voltage : 250
- Amperage : 3
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001743376
- GTIN : 00782001743376
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.01
