Product Info
- Manufacturer:Mersen
Description
TRM3.2

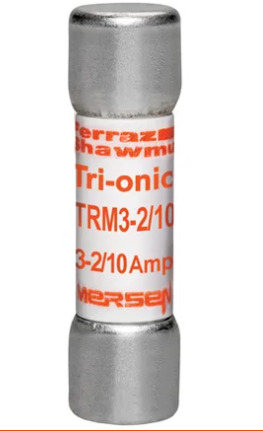

TRM3-2/10 is a Mersen time-delay midget fuse rated for 3.2 amps and 250 volts AC with a 10,000 amp interrupt rating.
This Tri-Onic® TRM series fuse provides a 12-second time delay at 200% rating, designed to offer supplemental protection for small motors, small transformers, lighting circuits, and control circuits with high inrush current. It features a cylindrical glass melamine laminate body measuring 1.5 inches in length by 0.41 inches in diameter and is UL listed to standard 248-14 and CSA C22.2 No. 248.14.
- Key Specifications
- Amperage Rating: 3.2 A
- Voltage Rating: 250 VAC
- Interrupt Rating: 10 kA at 250 VAC
- Fuse Type: Time-Delay (12 seconds at 200% rating)
- Body Size: 1.5 in length x 0.41 in diameter
- Mounting Style: Holder mounted
- Class: Midget
- Certifications: UL Listed (File E33925), CSA Certified
- Application: Supplemental protection for small motors, transformers, lighting, and control circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TRM3.2
- Manufacturer : Mersen
- Brand : Mersen
Product Data
- UPC : 782001743376
- Weight : 25
